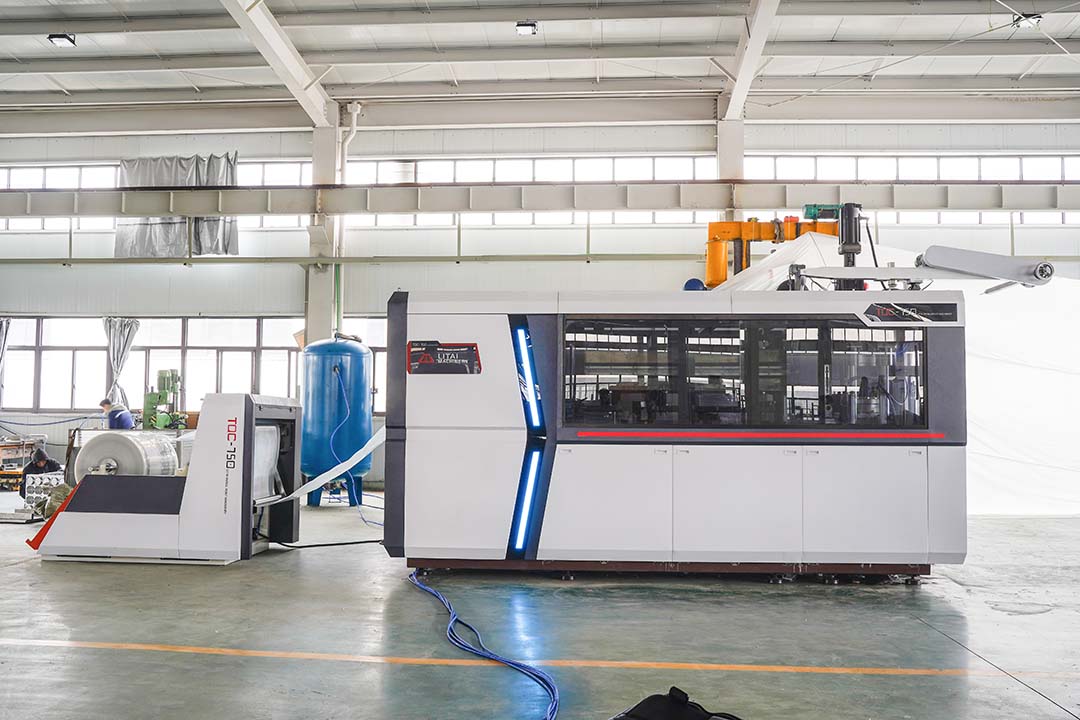

Plastic Cup Thermoforming Machine TQC-750S is a highly efficient equipment dedicated to the production of plastic cups, which is widely used in food, beverage and other packaging fields. The equipment is driven by a servo motor, and it includes a sheet loading part, a four-column structure, a heating area, a forming and cutting part, a PLC touch screen operation part and a waste sheet recovery part. Through the thermoforming process, plastic sheets are processed into plastic cups of different shapes and sizes. It has the advantages of stable structure, high production efficiency, simple operation, low operating noise, energy saving and environmental protection, etc. It is an indispensable and important tool in the modern packaging industry.
2. Working Principle
The operation process of the plastic cup thermoforming machine TQC-750S is mainly divided into the following steps:
Sheet heating: Plastic sheets (such as PET, PP, PS, etc.) are fed into the heating area and heated to the appropriate softening temperature through electric heating or infrared heating system.
Molding: The heated softened sheet enters the molding mold, and uses vacuum adsorption or pressure molding technology to make it fit the shape of the mold tightly to form the required plastic cup.
Cooling: The formed cup is kept in the mold for a period of time to cool, usually using a water cooling or air cooling system to ensure the shape of the cup is stable.
Cutting: The formed plastic cups are separated from the excess sheets by the cutting device to obtain finished cups.
3. Product Features
Efficient production: The equipment has high production capacity and is suitable for large-scale production. It can produce tens of thousands of plastic cups per hour.
Precise Control: Equipped with advanced PLC control system and human-machine interface, it can accurately control temperature, pressure and molding time to ensure consistent quality of each cup.
Energy saving and environmental protection: Adopt optimized design and advanced technology to reduce energy consumption, reduce waste emissions during production, and meet environmental protection requirements.
Easy operation: The intuitive operation interface and highly automated design make it easy for operators to get started and daily maintenance is also very convenient.
Diversity and flexibility: Different molds can be replaced and production parameters can be adjusted to produce plastic cups of different shapes and sizes to meet various market needs.
Sturdy and durable: The workbench adopts a four-guide column structure (GCr15 steel, hard chrome-plated surface) to resist wear. The equipment adopts high-quality materials and precision manufacturing technology to ensure its stability and durability, and can operate efficiently for a long time.
4. Technical Parameters
MAIN TECHNICAL PARAMETER | |
Machine Model | TQC-750S |
Forming Area(L x W mm) | 750 x 480mm |
Forming Depth(Max.) | 180mm |
Sheet Width(Max.) | 760mm |
Suitable Sheet thickness | 0.3~1.8mm |
Machine Forming Speed(Max.) | 30times/min |
Air Pressure | 0.6~0.8Mpa |
Air Consumption | 3m³/min |
Water Consumption | 0.7m³/hour |
Suitable Sheet Materials | PP/PS/PET/PVC/HIPS/PLA/CORN STARCH/etc |
Power Supply | 380V 50HZ 3PHASE 4WIRE |
Used Power | 50KW |
Rated Power | 173KW |
Heating Power | 146KW |
Punching Force | 70T |
Procedure | Forming-Cutting-stacking(Stacking optional device) |
Machine dimensions | L9000 * W2305 * H3190mm |
Machine Weight | 7.7T |
5. Application Scope
Plastic cup thermoforming machines are widely used in many industries, including but not limited to:
Food and beverage packaging: used to produce disposable beverage cups, ice cream cups, yogurt cups, coffee cups, etc.
Medical supplies: production of disposable medical cups, drug sampling cups, reagent cups, etc.
Industrial packaging: suitable for the production of packaging cups for electronic products, chemical products, etc.
6. Maintenance and care
In order to ensure the long-term and efficient operation of the plastic cup thermoforming machine, regular maintenance and care are required:
Electrical system inspection: Regularly check the electrical components of the heating system and control system to ensure that all wires and connectors are intact.
Mold cleaning: Clean the mold after each production to prevent residues from affecting the quality of the next production.
Lubrication maintenance: Regularly add lubricating oil to the transmission parts and movable joints of the equipment to reduce mechanical wear.
Air system inspection: Check the sealing of the air system to ensure no leakage and stable air pressure.
Cooling system maintenance: Regularly check the cooling water circulation system or air cooling system to ensure its normal operation and prevent the equipment from overheating.
7. Conclusion
The plastic cup thermoforming machine TQC-750S occupies an important position in the plastic products industry with its high efficiency, precision, energy saving and easy operation. Whether it is food and beverage packaging, or pharmaceutical and industrial packaging, the plastic cup thermoforming machine can provide reliable production solutions. We are committed to providing customers with high-quality equipment and professional services to meet the diverse market needs. If you are interested in our plastic cup thermoforming machine or have any questions, please feel free to contact us, we will serve you wholeheartedly.
