Three-Station Thermoforming Machine

Three-Station Thermoforming Machine
Manufacturing and sales of industry and trade
  • AUXILIARY EQUIPMENT
    Chiller 15F
    Cool down molds, rails and hydraulic systems while the machine is running

    Refrigerant:R22

    Cooling Fan:0.55kw*2

    Volume of water tank:240L

    Rated power:13.6 kw

    Power supply:  3PH-380V/50Hz

    Dimension: 1750*930*1600mm

    Weight:420kg

  • AUXILIARY EQUIPMENT
    Air Tank 1m³
    An auxiliary part of the air compression system to keep the air pressure stable

    Volume:1.0m³

    Pressure:0.8Mpa

    Design Temperature:150℃

    Total Height:2400mm

    Inner Diameter:800mm

    Relief Valve Interface: Rp 11/2

    Drain Valve Interface:R 1/2

  • AUXILIARY EQUIPMENT
    Air Compressor
    TK-3.6
    Get enough air during molding

    Working Pressure:0.8Mpa

    Air Displacemen:3.6m³/min

    Motor Power:3PH-380V/50Hz

    Dimension:1150x900x1350mm

    Power supply:3PH-380V/50Hz

    Cooling method:Air-cooled

    Lubricant quantity:About 27L

MAIN TECHNICAL PARAMETER
Model
Forming Area520mm x 400 mm700mm x 550 mm
Forming Depth (Max.)110mm120mm
Sheet thickness0.2-2.0mm0.2-2.0mm
Forming Speed (Max.)30times/min35times/min
Air pressure  0.6-0.8mpa0.6-0.8mpa
Air consumption  3.0 m³/min3.6 m³/min
Water consumption  0.7 m³/h0.7 m³/h
Sheet width (Max.)550mm730mm
Suitable SheetPP, PS, HIPS, PET, PVC, PLA etc.PP, PS, HIPS, PET, PVC, PLA etc.
Power supplyAC 380V, 50Hz, Three-phase, Four-wireAC 380V, 50Hz, Three-phase, Four-wire
Used power50Kw95Kw
Rated power100Kw190Kw
Heating power75Kw118Kw
ProcedureForming-cutting-stackingForming-cutting-stacking
DimensionL9700*W4600*H2700mmL13000*W4700*H2750mm
WeightAbout 9.0TAbout 19.0T
Model
Forming Area (Max.)
Forming Depth (Max.)
Sheet thickness
Forming Speed (Max.)
Air pressure
Air consumption
Water consumption
Sheet width (Max.)
Suitable Sheet
Power supply
Heating power
Rated power
Procedure
Dimension
Weight
520mm x 400 mm
110mm
0.2-1.6mm
30times/min
0.6-0.8mpa
3.0 m³/min
0.7 m³/h
550mm
PP, PS, HIPS, PET, PVC, PLA etc.
AC 380V, 50Hz, Three-phase, Four-wire
75Kw
120Kw
Feeding-Heating- Forming-Cutting-Stacking-Recycle
L8200*W4650*H2670mm
About 9T
520mm x 400 mm
110mm
0.2-1.6mm
30times/min
0.6-0.8mpa
3.0 m³/min
0.7 m³/h
550mm
PP, PS, HIPS, PET, PVC, PLA etc.
AC 380V, 50Hz, Three-phase, Four-wire
75Kw
120Kw
Feeding-Heating- Forming-Cutting-Stacking-Recycle
L8200*W4650*H2670mm
About 9T
  • High security
  • High stability
  • Low noise
  • Low energy
    consumption
  • High utilization
  • Fully automatic

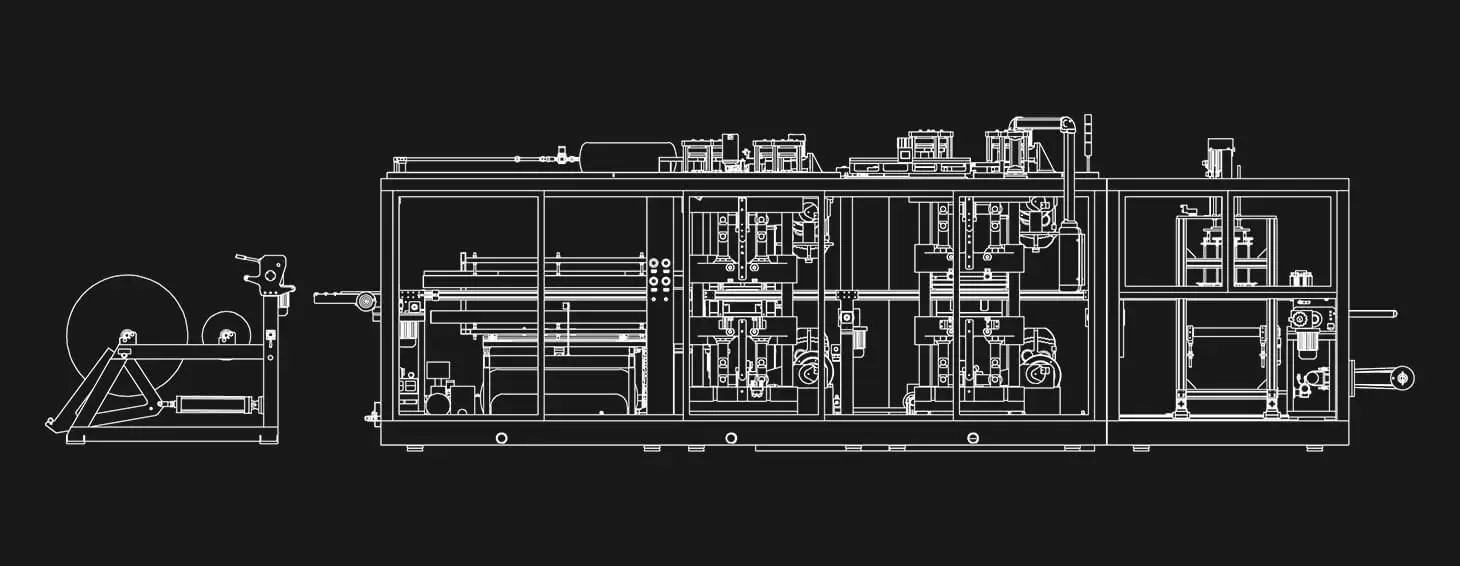

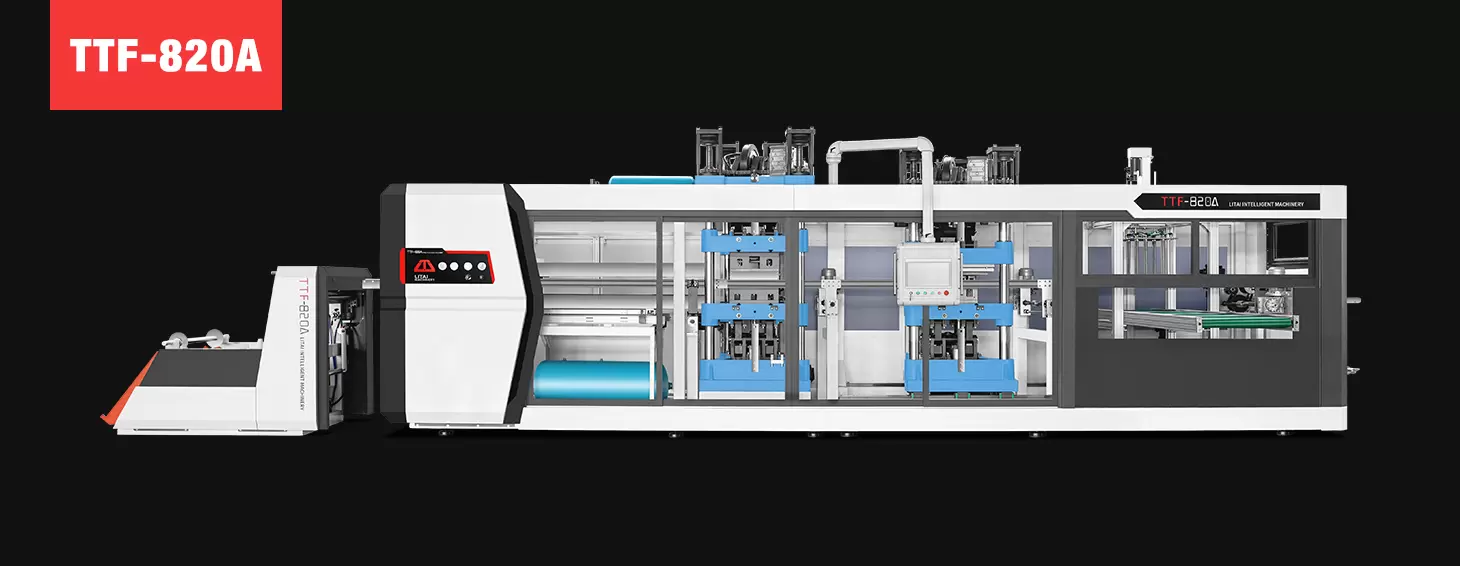

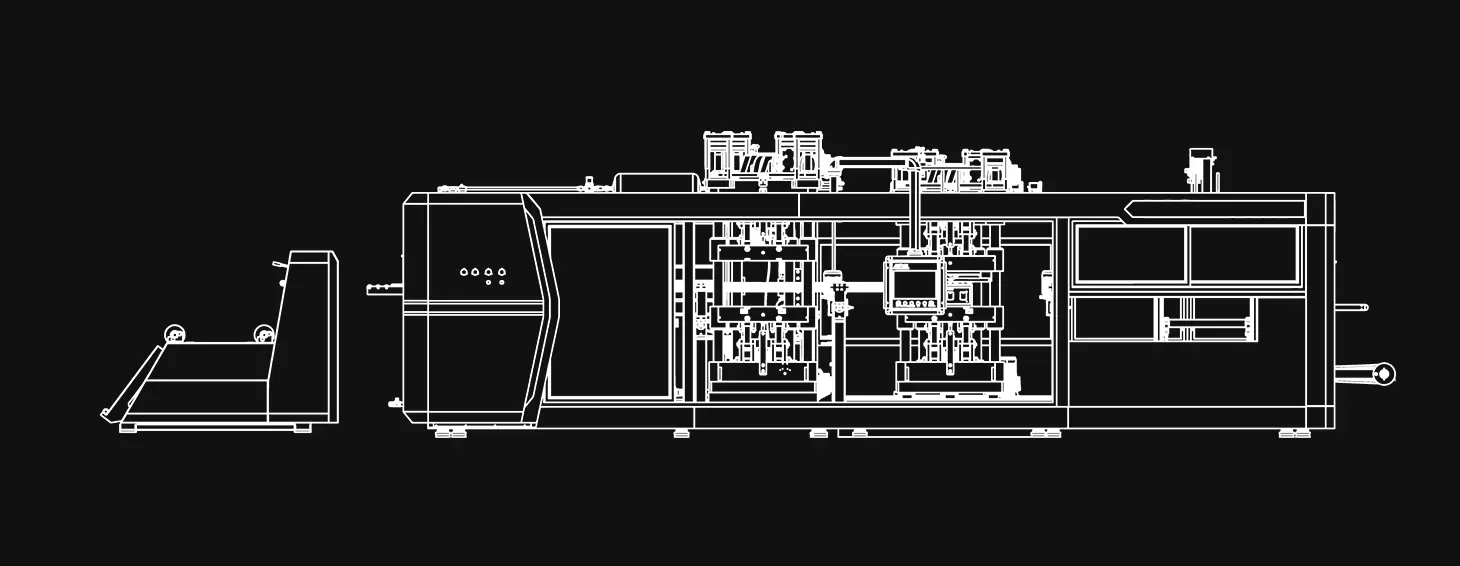

Line diagramTTF-820A
line diagram of TTF-820A thermoforming machine

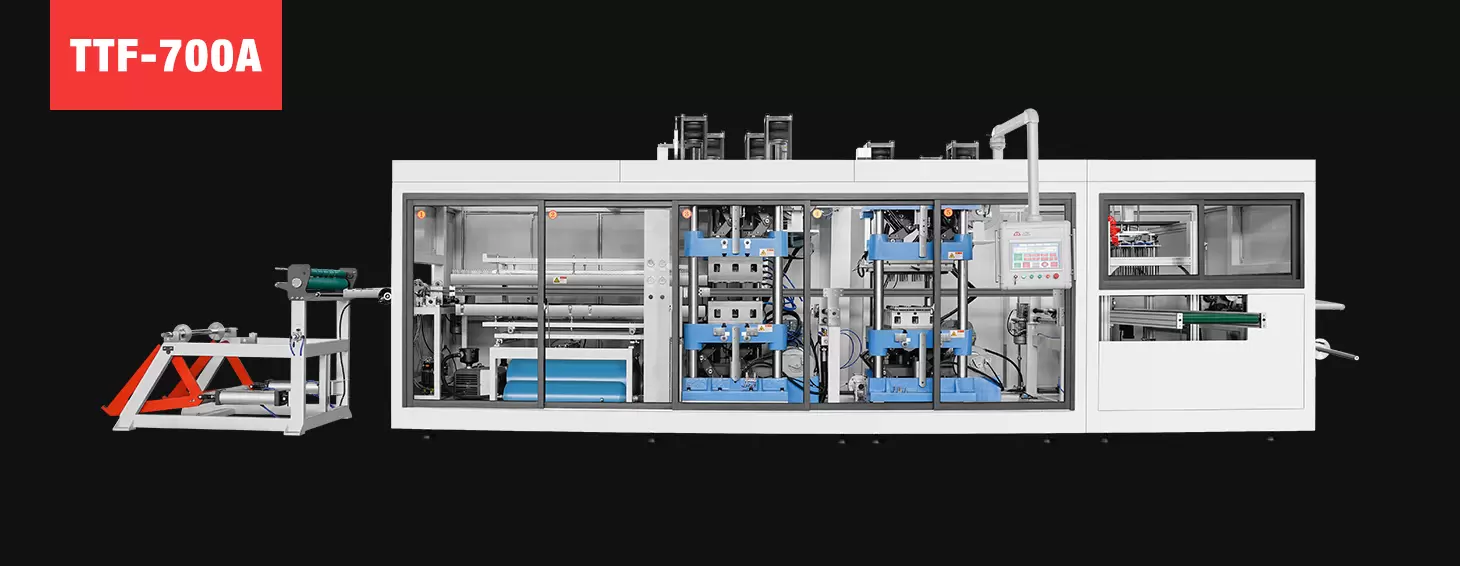

Line diagramTTF-700A
Line diagram of TTF-700A thermoforming machine

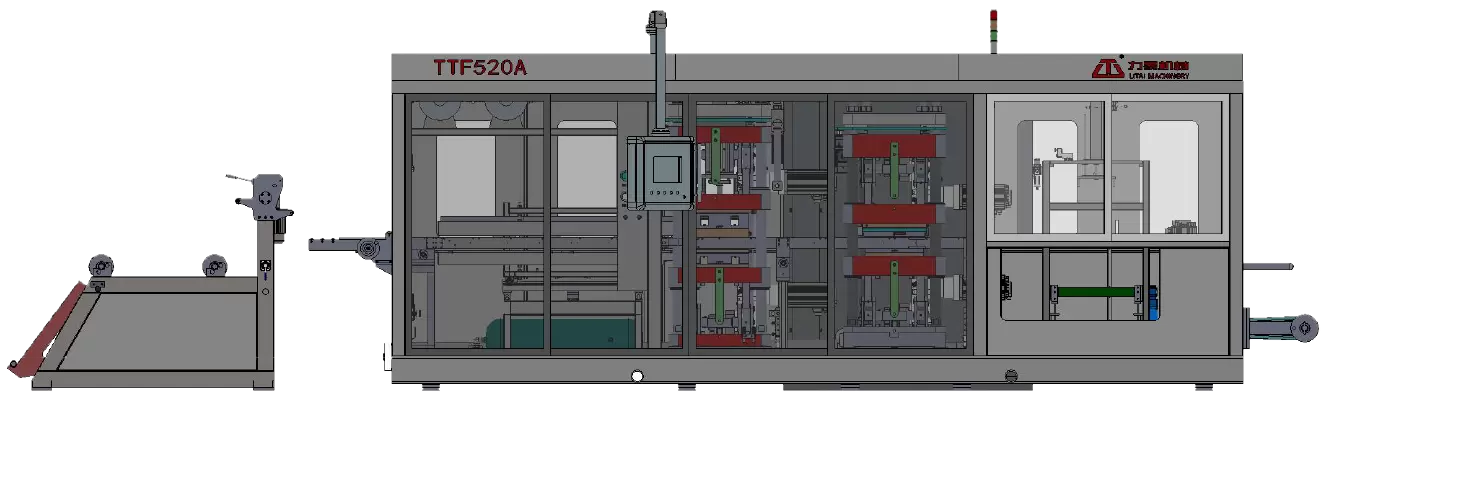

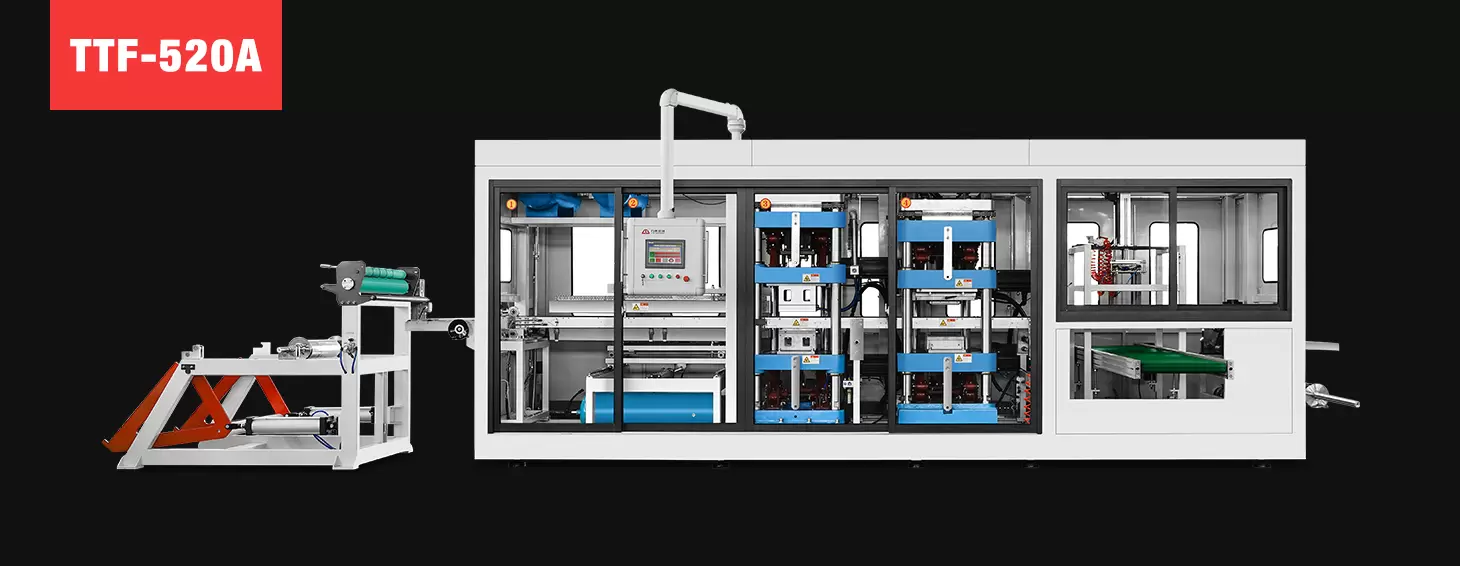

Line diagramTTF-520A
line diagram of TTF-520A thermoforming machine

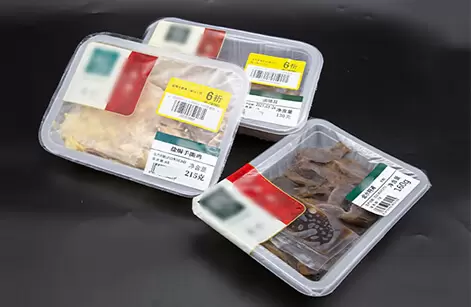

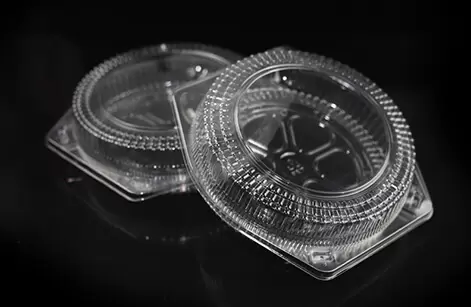

Application

TTF series full-automatic thermoforming machine is our latest developed core product. The machine combines forming, cutting and stacking into process. widely used and suitable for most of the customer requested, it can produce plastic trays, containers, boxes, lids, etc. The machine is completely driven by servo motor. stable operation, low noise, high efficiency, high quality.

  • Cup Lid
  • Degradable Plate

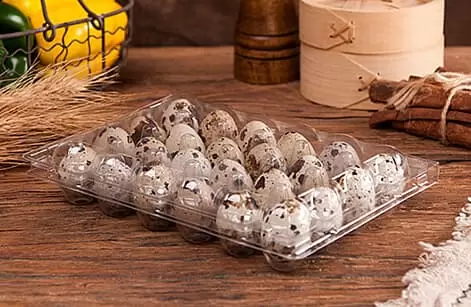

  • Quail Egg Tray
  • Mooncake Box
  • Hardware Packaging Tray
  • hardware tray
  • plastic bowl
  • toy tray
  • candy box

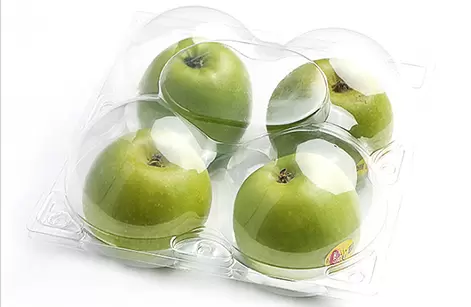

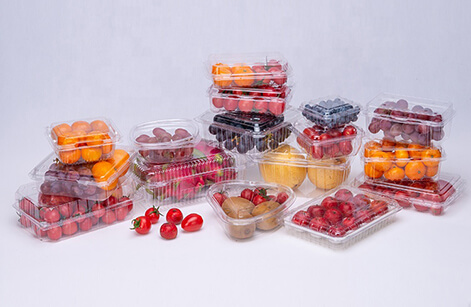

  • fruit box

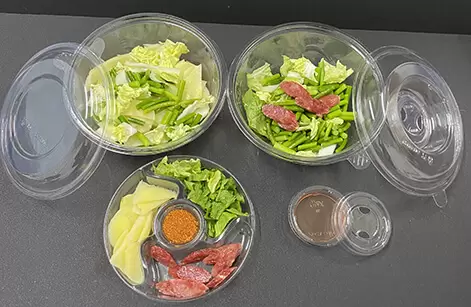

  • salad box
  • pizza box
  • fast food box
  • sauce container

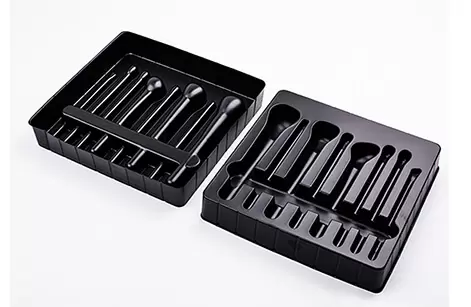

  • cosmetic tray
  • pastry box
  • egg tart box
  • pastry box
  • cake box
  • self-heating lunch box
  • takeaway box
  • pizza box
  • sushi box
  • packaging box
  • cookie box
  • cookie box

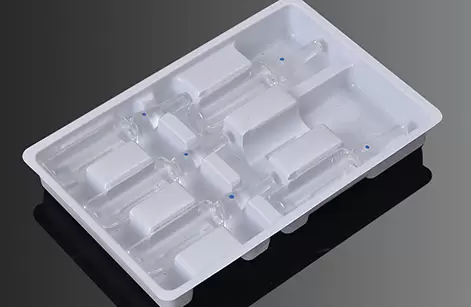

  • Ampoule tray
  • fruit box
  • egg tray
  • cake box
  • lunch box
  • fast food box
  • Coffee Cup Lid
  • Fresh keeping box
  • Cup Lid
  • Cup Lid
  • Biscuit box

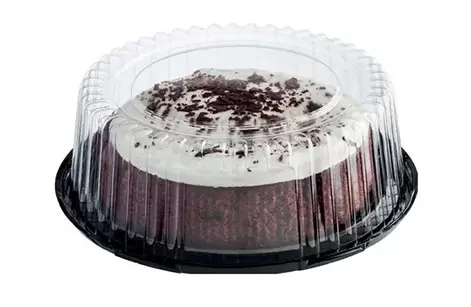

  • Cake box
Heating:
Trimble (China)

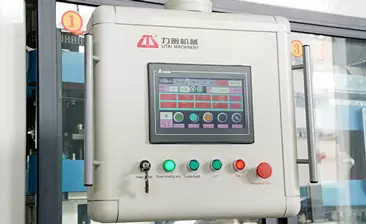

Touch screen:
Detla (Taiwan)
Track:manualManual mold
change
  • Sheet feeding
  • Sheet conveying

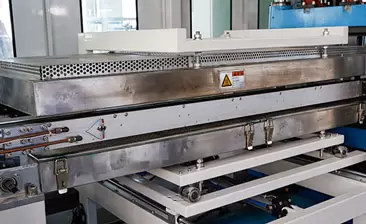

  • Heating:
    Trimble (China)
  • Track:manual
  • Touch screen:
    Detla (Taiwan)
  • Manual mold
    change
  • Forming
  • Cutting
  • Stacking
  • Safety
    indicator
  • Conveyor
  • Wasting sheet
    collecting part

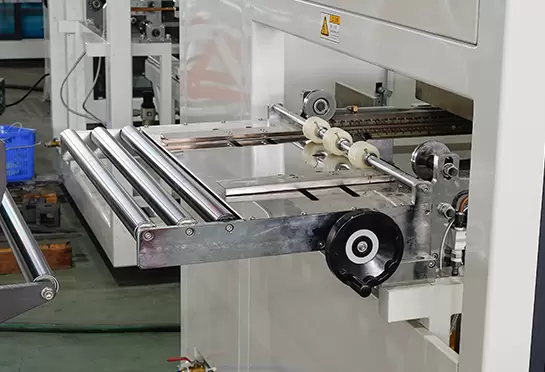

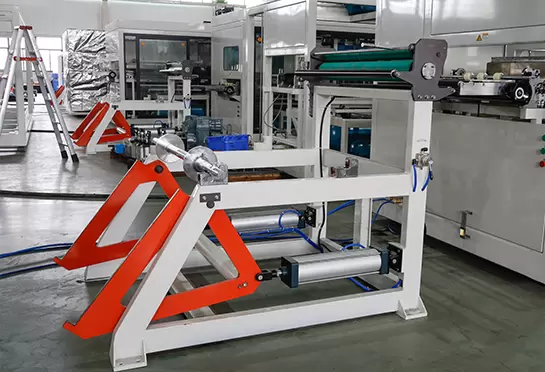

Sheet feeding
Sheet feeding
Sheet conveying
Sheet conveying
Barometer
Barometer

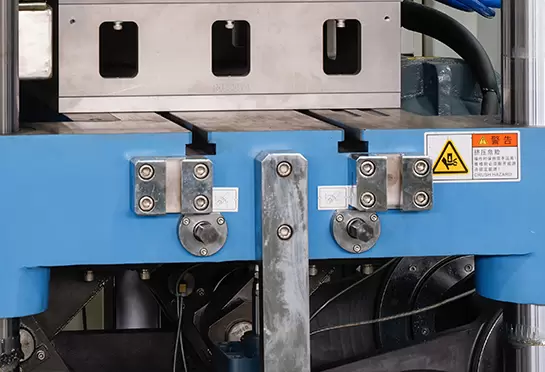

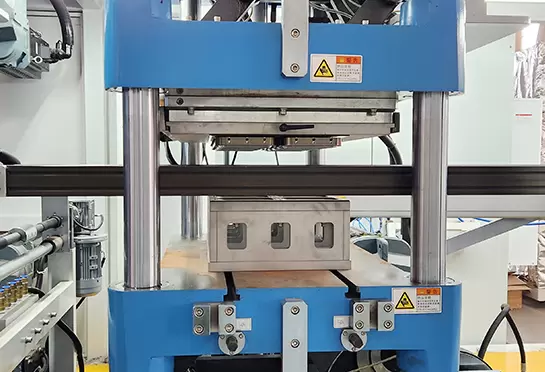

Forming
Forming

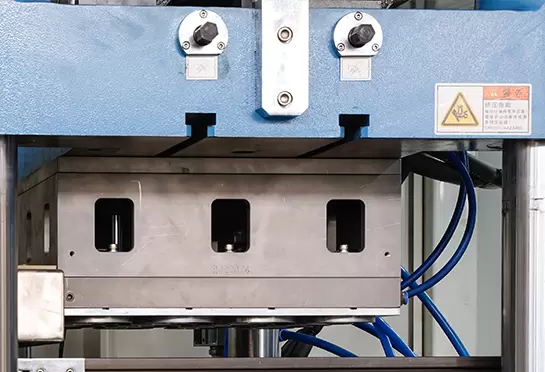

Cutting
Cutting

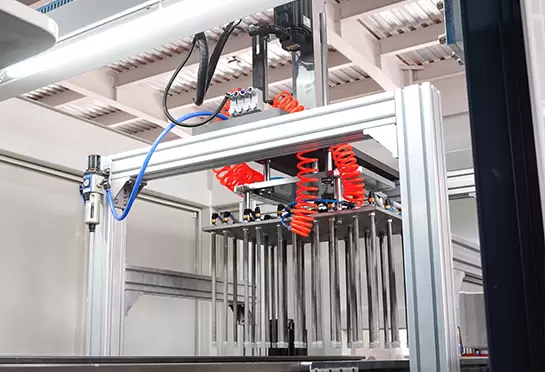

Stacking
Stacking
Conveyor
Conveyor
Safety
indicator
Safety
indicator
Wasting sheet
collecting part
Wasting sheet
collecting part
  • Sheet feeding
  • Sheet conveying
  • Heating:
    Erstein (Germany)
  • Track:automatic
  • Barometer
  • Pull up servo:
    Detla (Taiwan)
  • Forming
  • Turbine
  • Quick change
    of mold
  • Quick change
    of mold
  • Auto adjust
    mold
  • Cutting

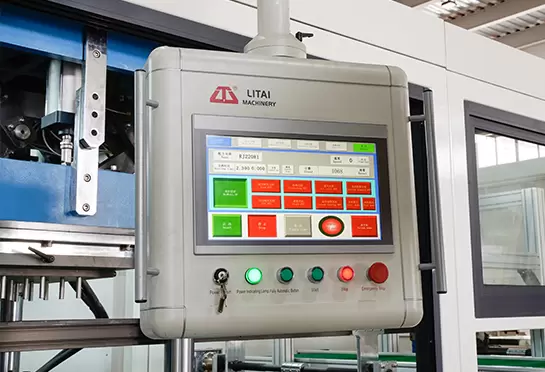

  • Touch screen:
    Siemens (Germany)
  • Safety
    indicator
  • Stacking
  • Conveyor
  • Safety indicator
  • Wasting sheet
    collecting part

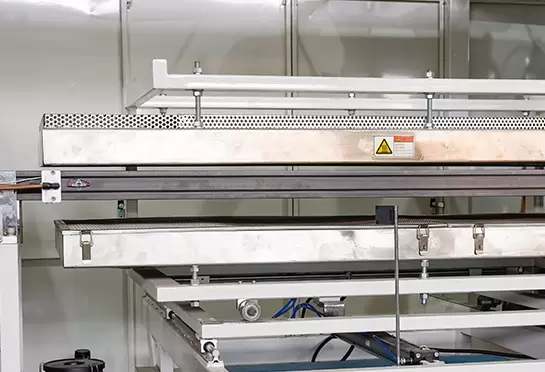

Heating:
Erstein (Germany)
BarometerPull up servo:
Detla (Taiwan)
Track:automaticQuick change
of mold
Auto adjust
mold
TurbineTouch screen:
Siemens (Germany)

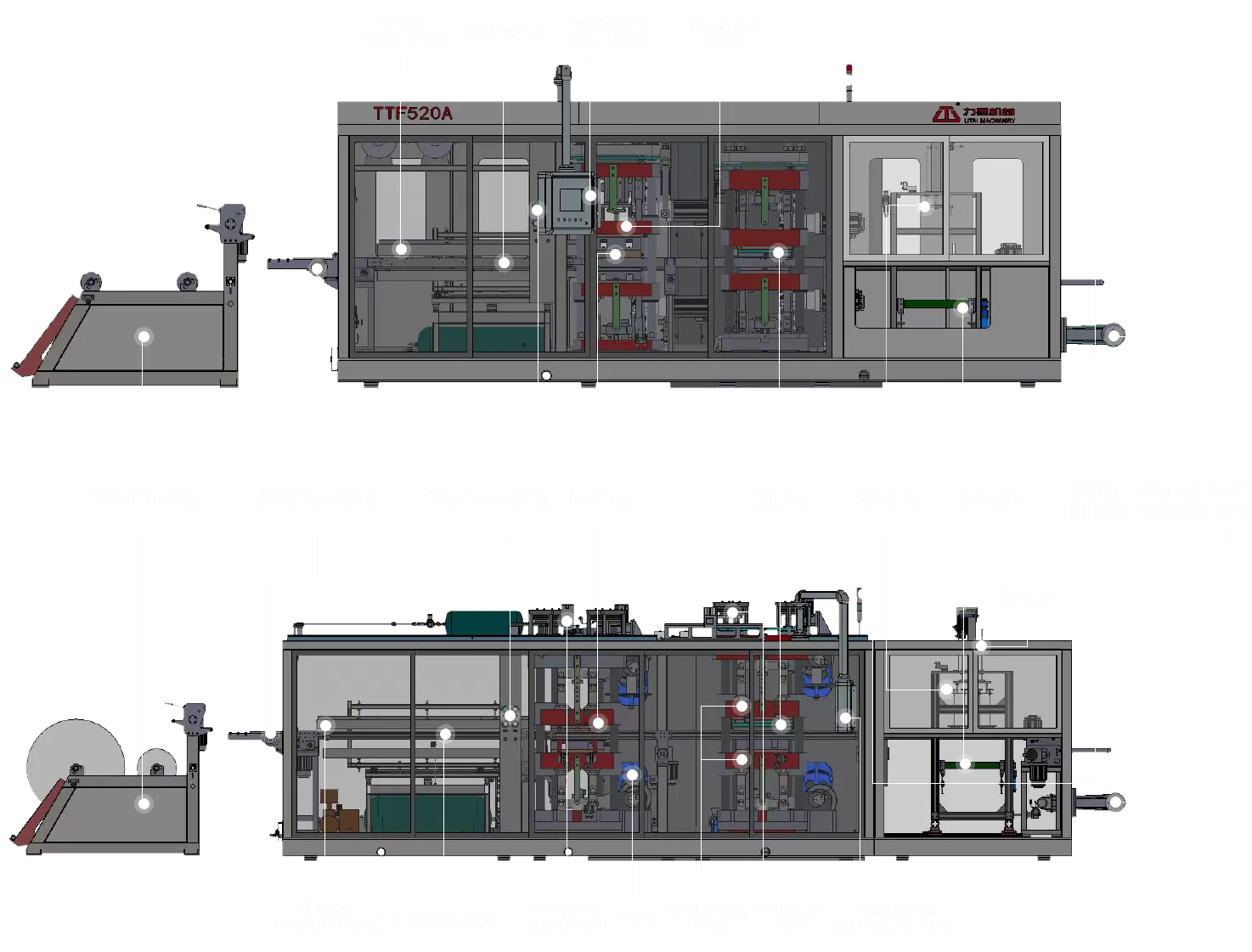

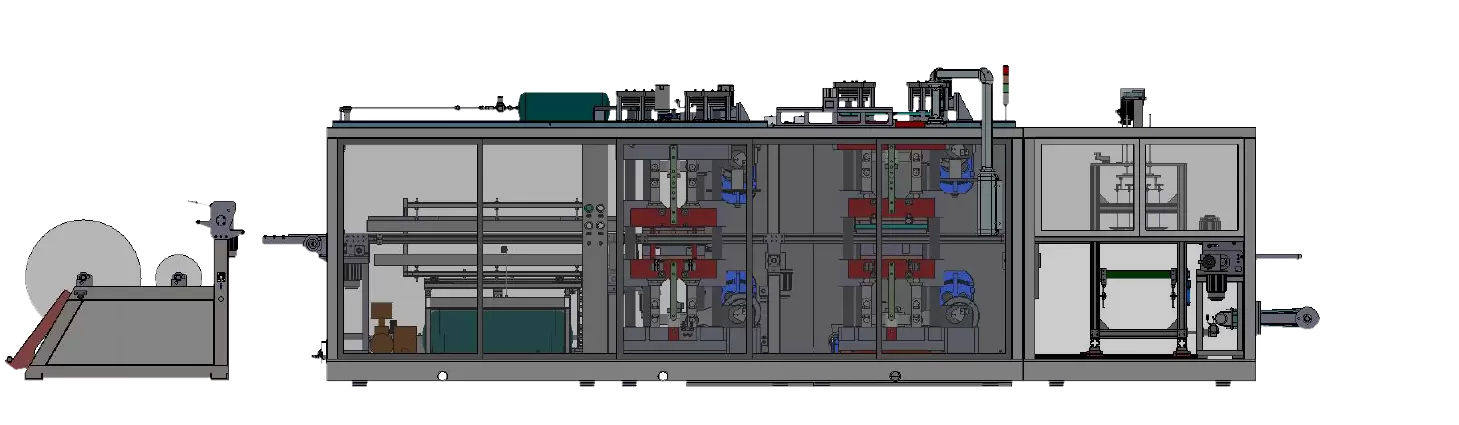

three station thermoforming machine Outline diagram of molding process

SUMMARY OF MACHINE

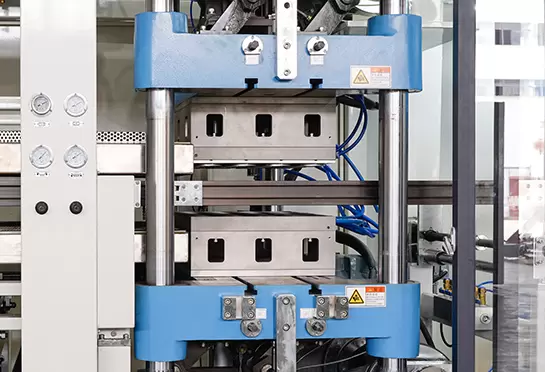

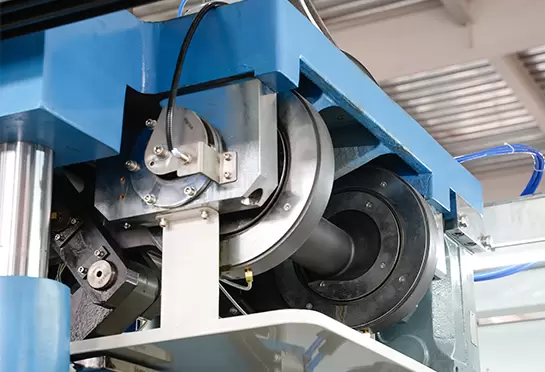

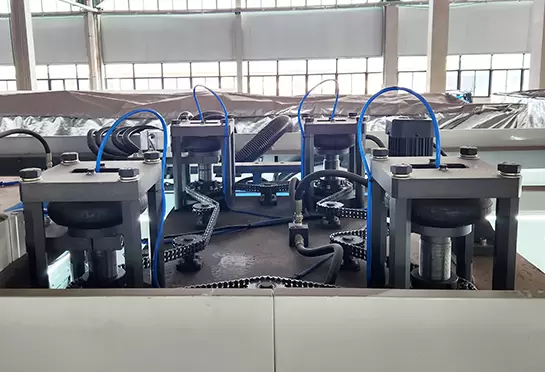

  • Every station is driven by the eccentric crank linkage structure.

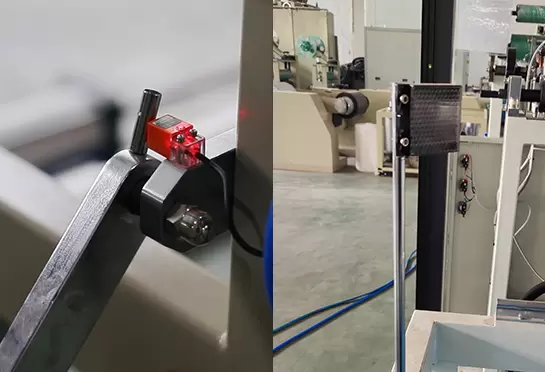

  • Feeding and heating part have optoelectronic switch in order to prevent error operating from production process.

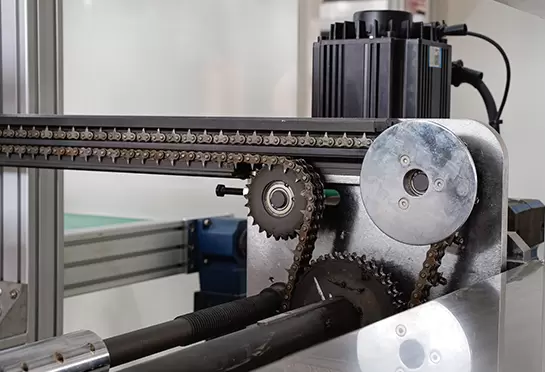

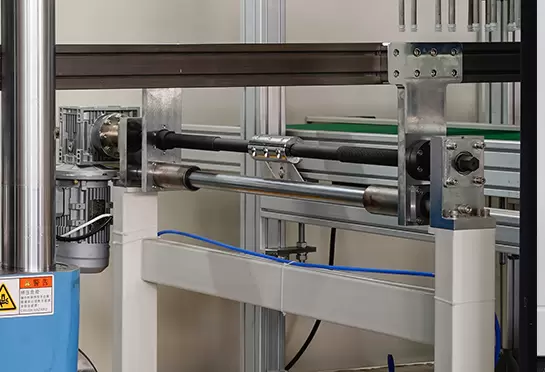

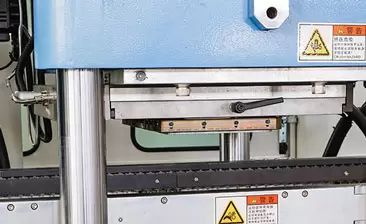

  • The toothed chain made of 65#Mn, helping convey sheet. Aluminum rails with water cooling, save water.

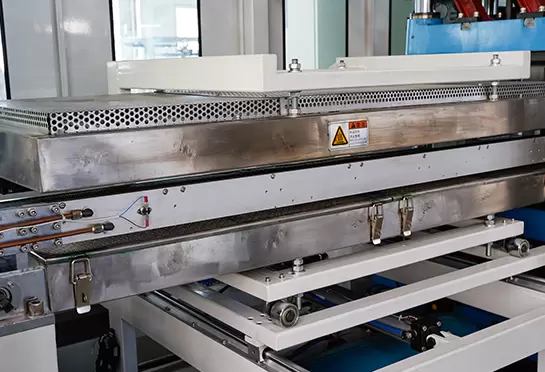

  • The machine adopts PID temperature system, it shows high precision, and temperature control tolerance <1℃.

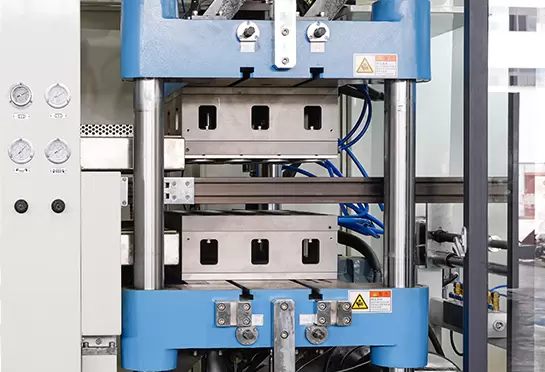

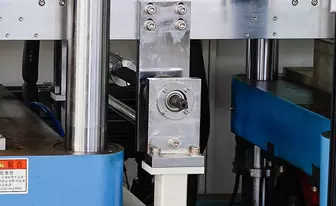

  • There is a rapid mould change device, which shortens the time for mould change extremely.

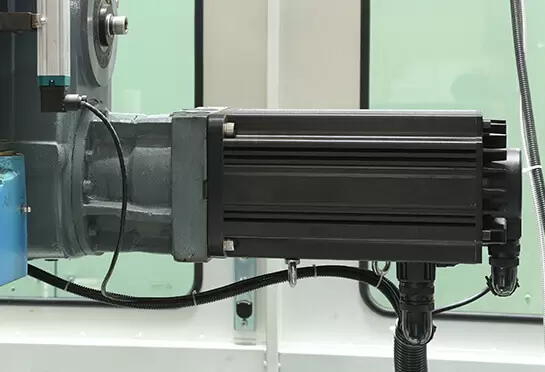

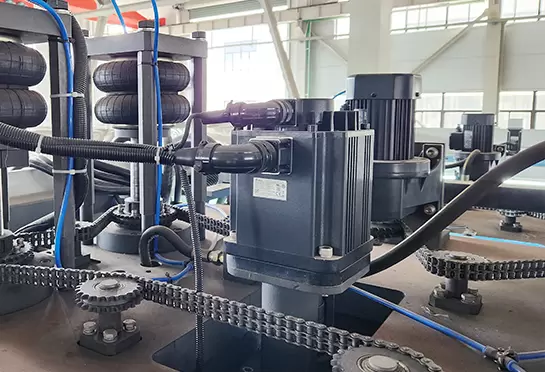

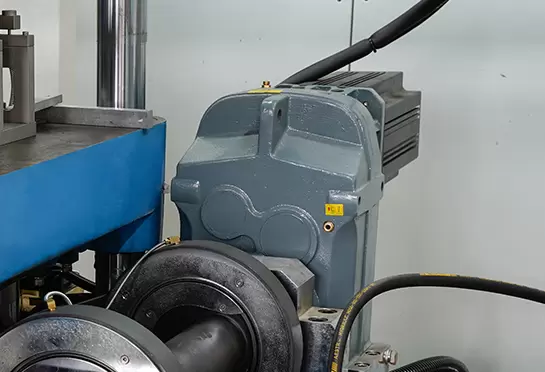

  • Each servo motor has overload protection for machine’s overworking.

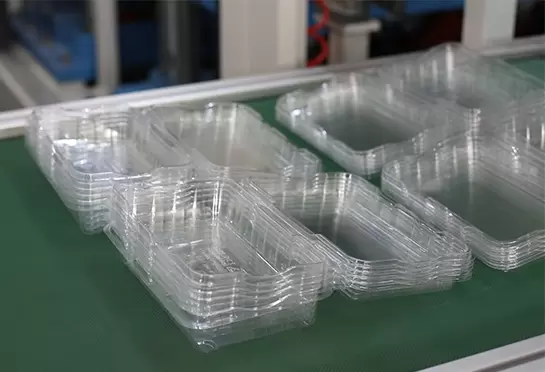

  • Low barycenter and height of finished products as well as steady running ensures easy operation and friendly viewing.

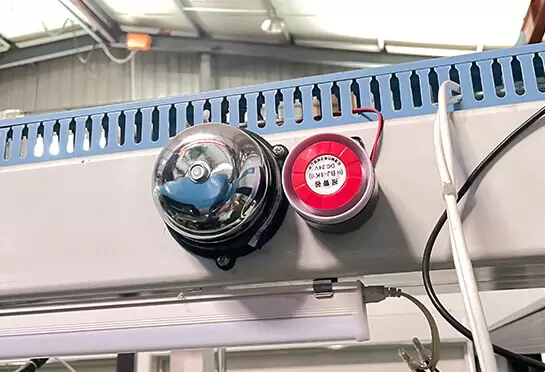

  • There is an alarm function of the sliding doors.
Every station is driven by the eccentric crank linkage structure. Every station is driven by the eccentric crank linkage structure.
Feeding and heating part have optoelectronic switch in order to prevent error operating from production process. Feeding and heating part have optoelectronic switch in order to prevent error operating from production process.
The toothed chain made of 65#Mn, helping convey sheet. Aluminum rails with water cooling, save water. The toothed chain made of 65#Mn, helping convey sheet. Aluminum rails with water cooling, save water.
The machine adopts PID temperature system, it shows high precision, and temperature control tolerance <1℃. The machine adopts PID temperature system, it shows high precision, and temperature control tolerance <1℃.
There is a rapid mould change device, which shortens the time for mould change extremely. There is a rapid mould change device, which shortens the time for mould change extremely.
Each servo motor has overload protection for machine’s overworking. Each servo motor has overload protection for machine’s overworking.
Low barycenter and height of finished products as well as steady running ensures easy operation and friendly viewing. Low barycenter and height of finished products as well as steady running ensures easy operation and friendly viewing.
There is an alarm function of the sliding doors. There is an alarm function of the sliding doors.
