Plastic Cup Making Machine

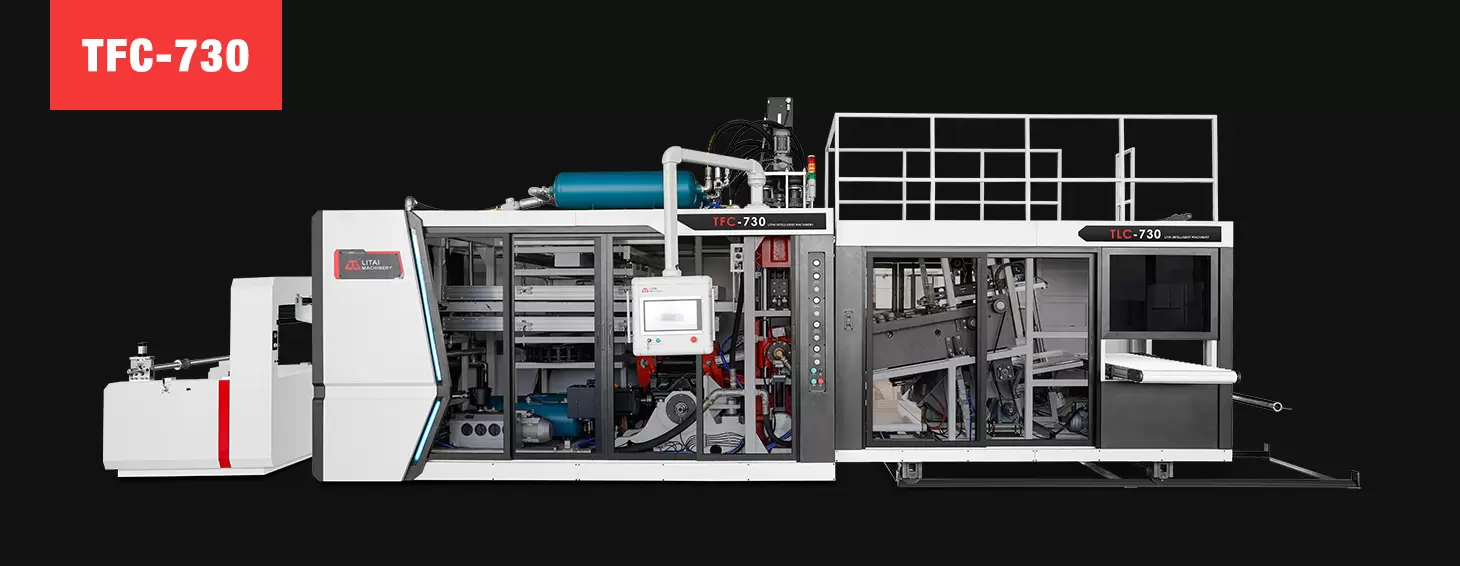

Plastic Cup Making Machine
Manufacturing and sales of industry and trade
  • AUXILIARY EQUIPMENT
    Chiller 15F
    Cool down molds, rails and hydraulic systems while the machine is running

    Refrigerant：R22

    Cooling Fan：0.55kw*2

    Volume of water tank：150L

    Rated power：13.6 kw

    Power supply：  3PH-380V/50Hz

    Dimension： L1500xW850xH1450mm

    Weight：750kg

  • AUXILIARY EQUIPMENT

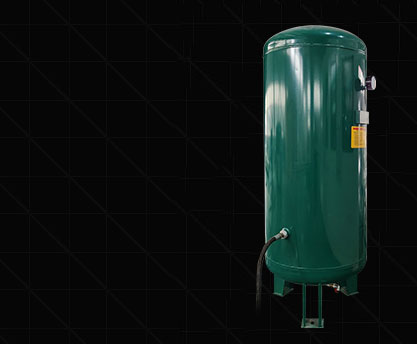

    Air Tank 1m³
    An auxiliary part of the air compression system to keep the air pressure stable

    Volume：1.0m³

    Pressure：0.8Mpa

    Design Temperature：150℃

    Total Height：2400mm

    Inner Diameter：800mm

    Relief Valve Interface： Rp 11/2

    Drain Valve Interface：R 1/2

  • AUXILIARY EQUIPMENT
    Air Compressor
    TK-3.6
    Get enough air during molding

    Working Pressure：0.8Mpa

    Air Displacemen：3.6m³/min

    Motor Power：3PH-380V/50Hz

    Dimension：1150x900x1350mm

    Power supply：3PH-380V/50Hz

    Cooling method：Air-cooled

    Lubricant quantity：About 27L

MAIN TECHNICAL PARAMETER
Model
Forming Area750x480mm650mm x 320 mm
Forming Depth (Max.)125-180mm125-180mm
Sheet thickness0.3-1.8mm0.3-1.8mm
Forming Speed (Max.)30times/min25-30times/min
Air pressure  0.6-0.8mpa0.6-0.8mpa
Air consumption  3.0 m³/min2.0 m³/min
Water consumption  0.7 m³/h0.5 m³/h
Sheet width (Max.)760mm650mm
Suitable SheetPP, PS, HIPS, PET, PVC, PLA etc.PP, PS, HIPS, PET, PVC, PLA etc.
Power supplyAC 380V, 50Hz, Three-phase, Four-wireAC 380V, 50Hz, Three-phase, Four-wire
Used power98Kw69Kw
Rated power140Kw98Kw
ProcedureHeating, forming and cutting waste recycling into oneHeating, forming and cutting waste recycling into one
DimensionL8500*W2200*H3100mmL6000*W2000*H2700mm
WeightAbout 6.5TAbout 5T
Model
Mould Size (Max.)
Forming Depth (Max.)
Sheet thickness
Forming Speed (Max.)
Air pressure
Air consumption
Water consumption
Sheet width (Max.)
Suitable Sheet
Power supply
Heating power
Rated power
Procedure
Dimension
Weight
750mm x 480mm
125-180mm
0.3-1.8mm
30times/min
0.6-0.8mpa
3.0 m³/min
0.7 m³/h
760mm
PP, PS, HIPS, PET, PVC, PLA etc.
AC 380V, 50Hz, Three-phase, Four-wire
146Kw
173Kw
Heating, forming and cutting waste recycling into one
L8500*W2200*H3200mm
About 6.5T
750mm x 480mm
125-180mm
0.3-1.8mm
30times/min
0.6-0.8mpa
3.0 m³/min
0.7 m³/h
760mm
PP, PS, HIPS, PET, PVC, PLA etc.
AC 380V, 50Hz, Three-phase, Four-wire
146Kw
173Kw
Heating, forming and cutting waste recycling into one
L8500*W2200*H3200mm
About 6.5T
  • High security
  • High stability
  • Low noise
  • Low energy
    consumption
  • High utilization
  • Fully automatic

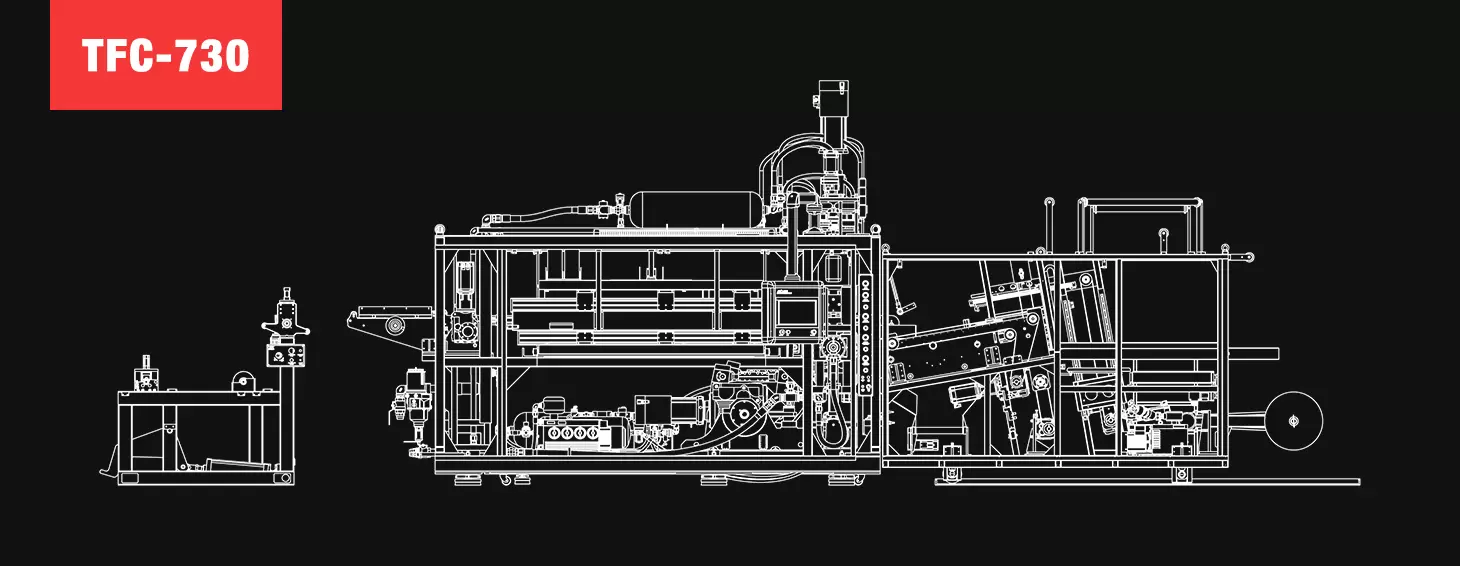

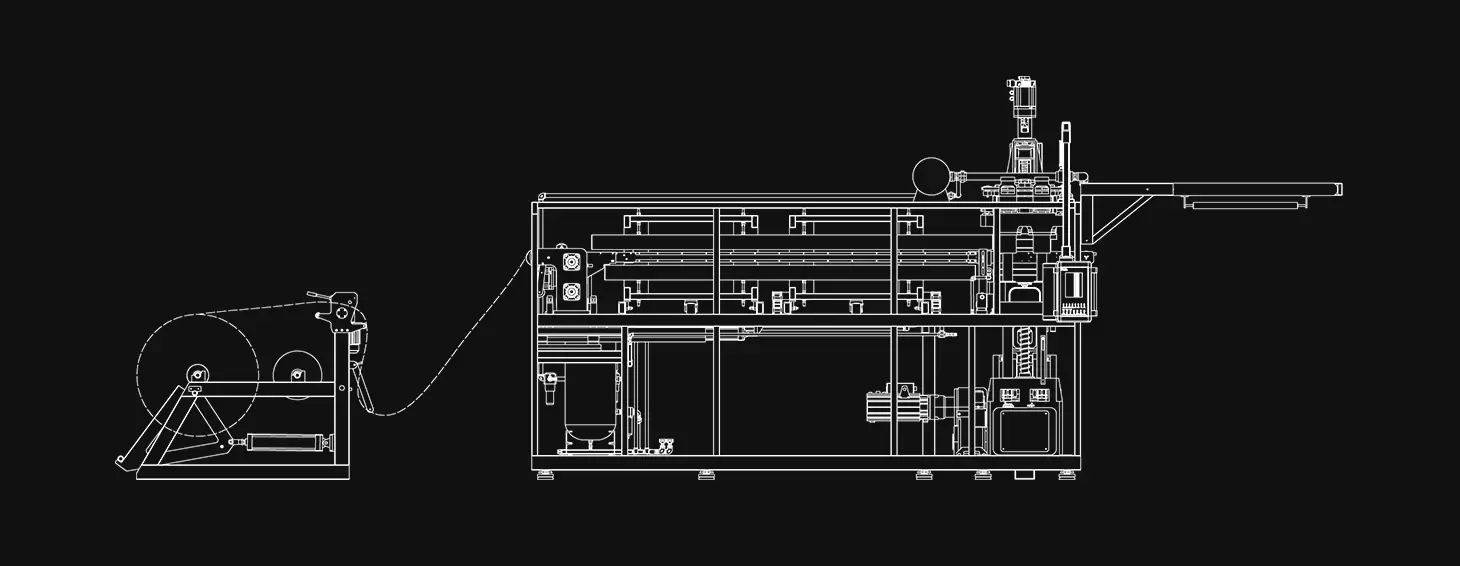

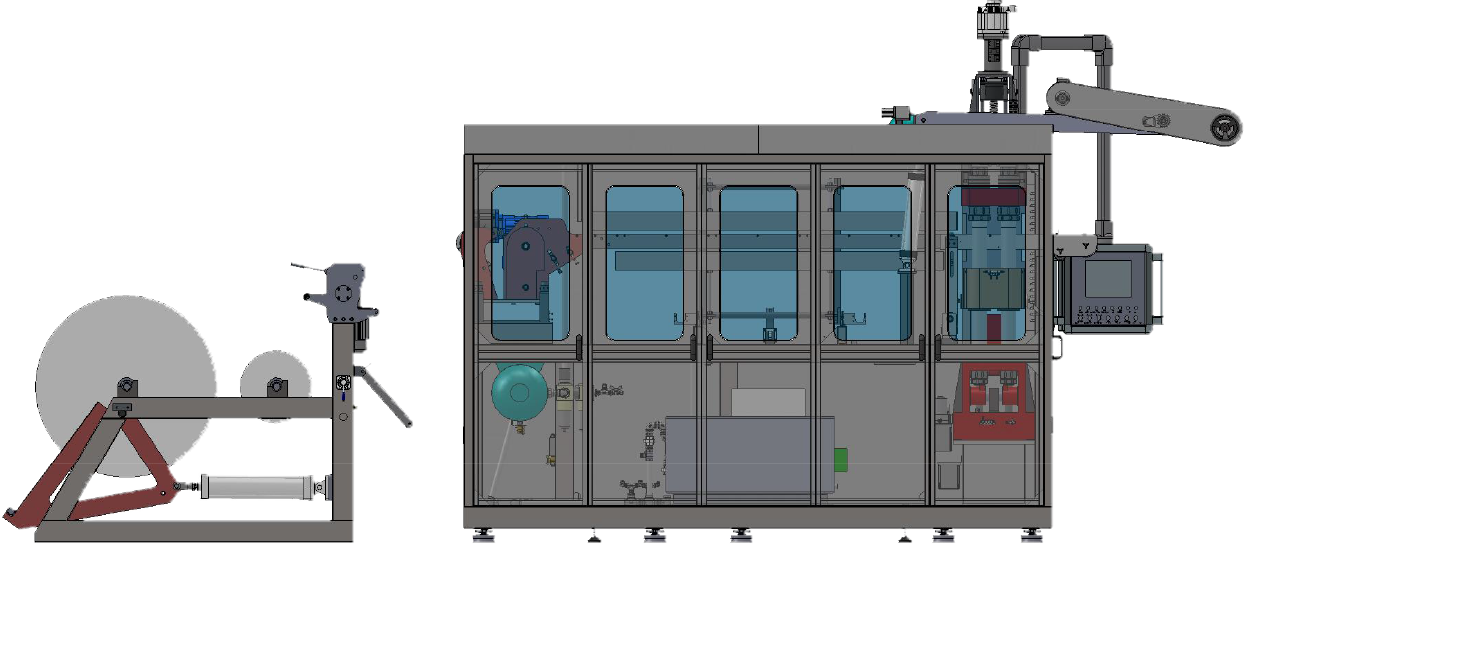

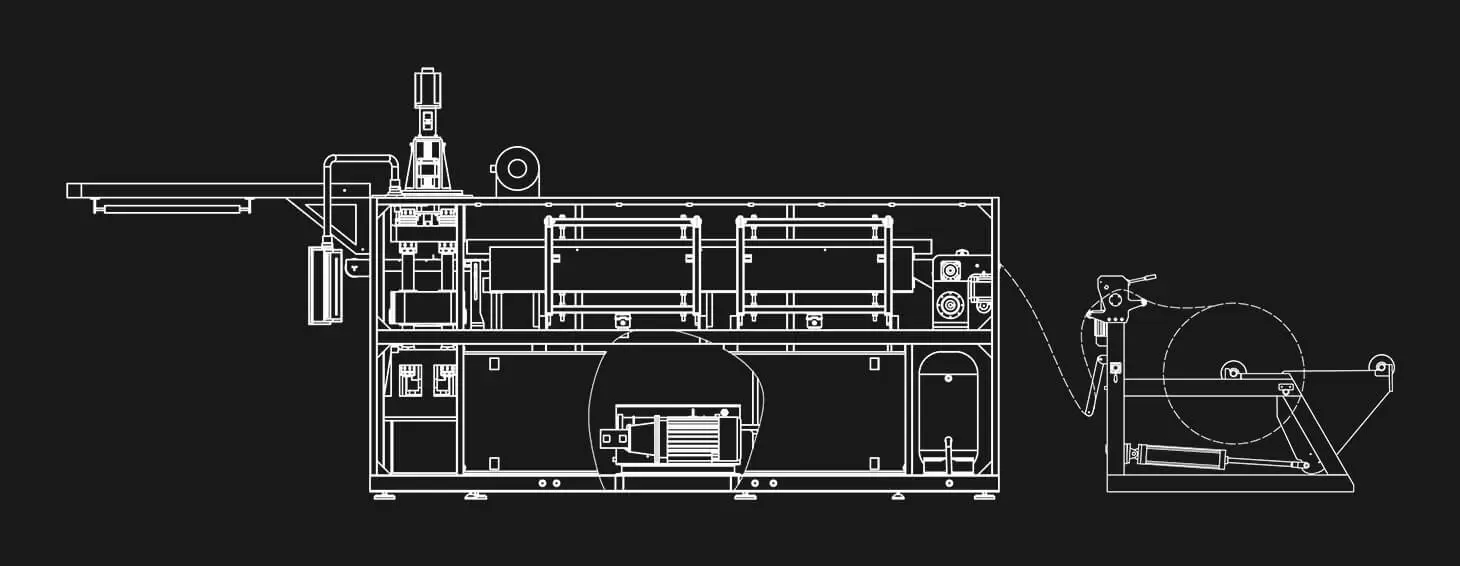

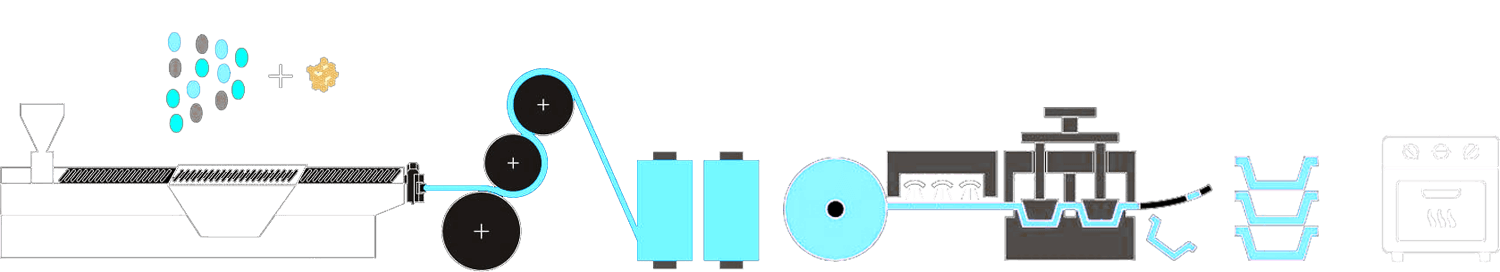

Line diagramTFC-680

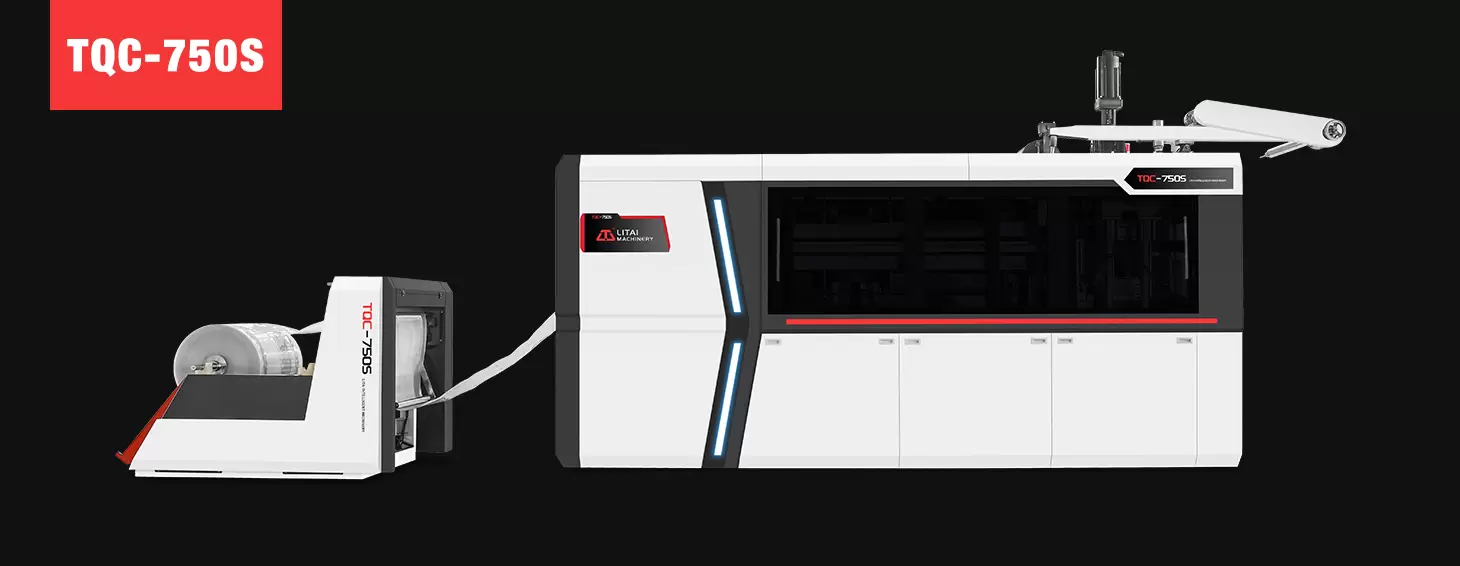

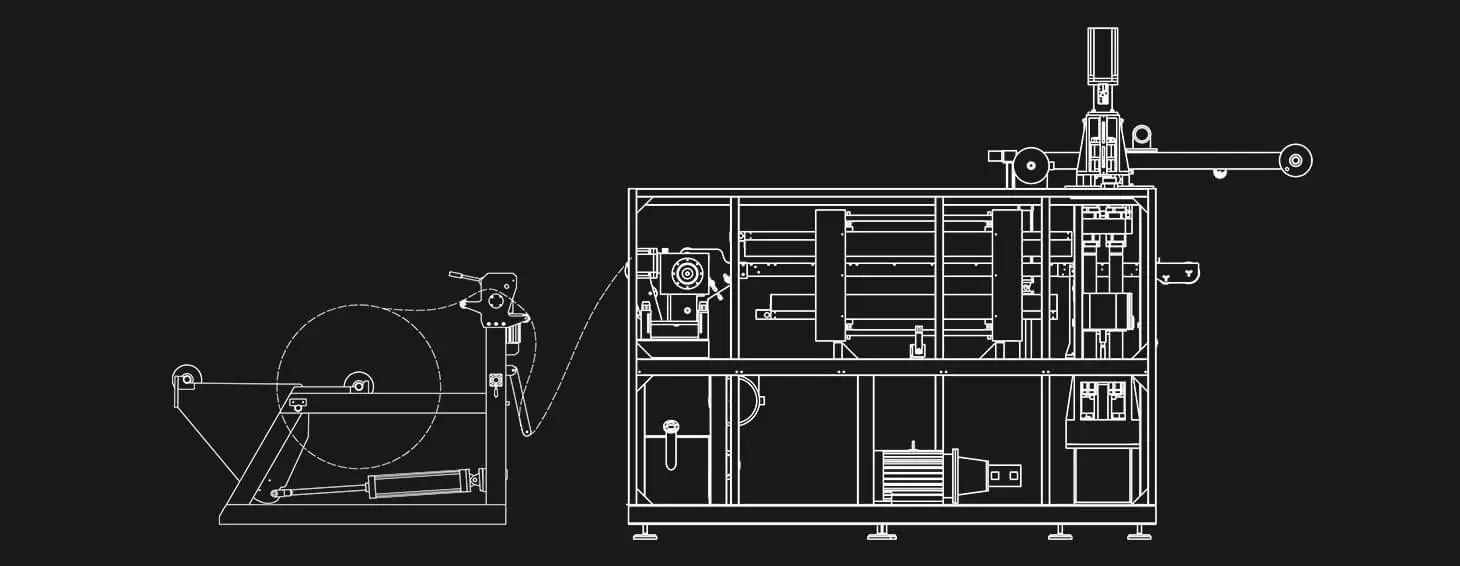

Line diagramTQC-750S

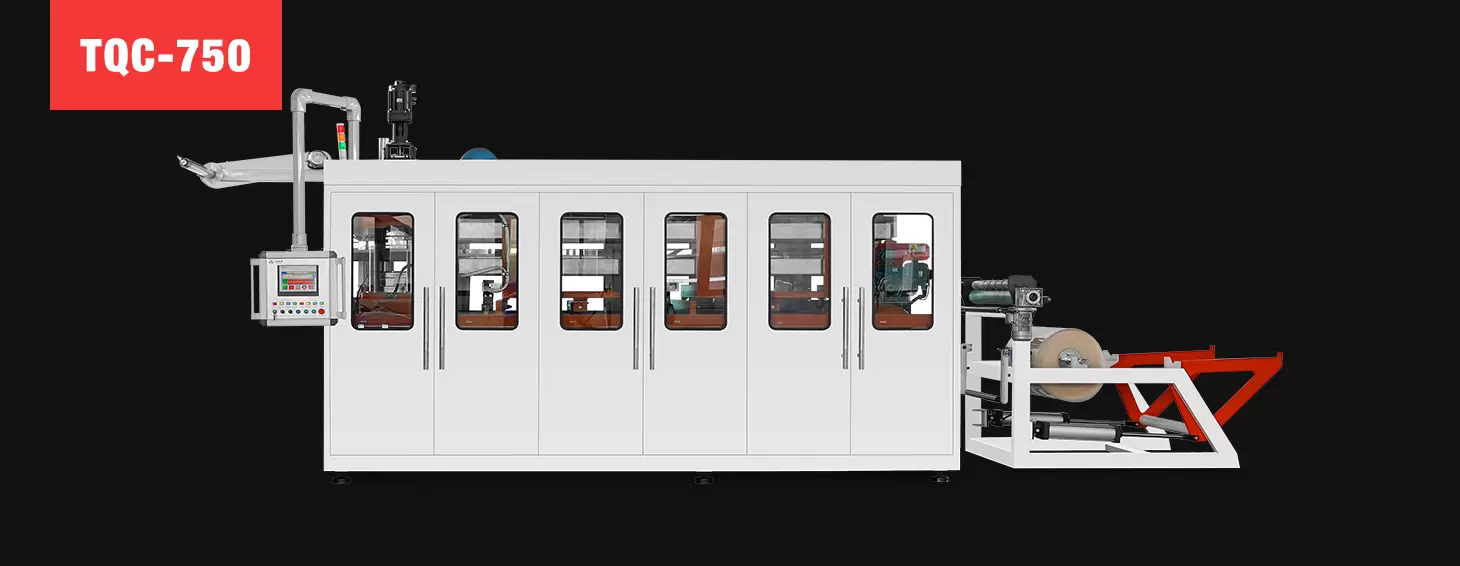

Line diagramTQC-750

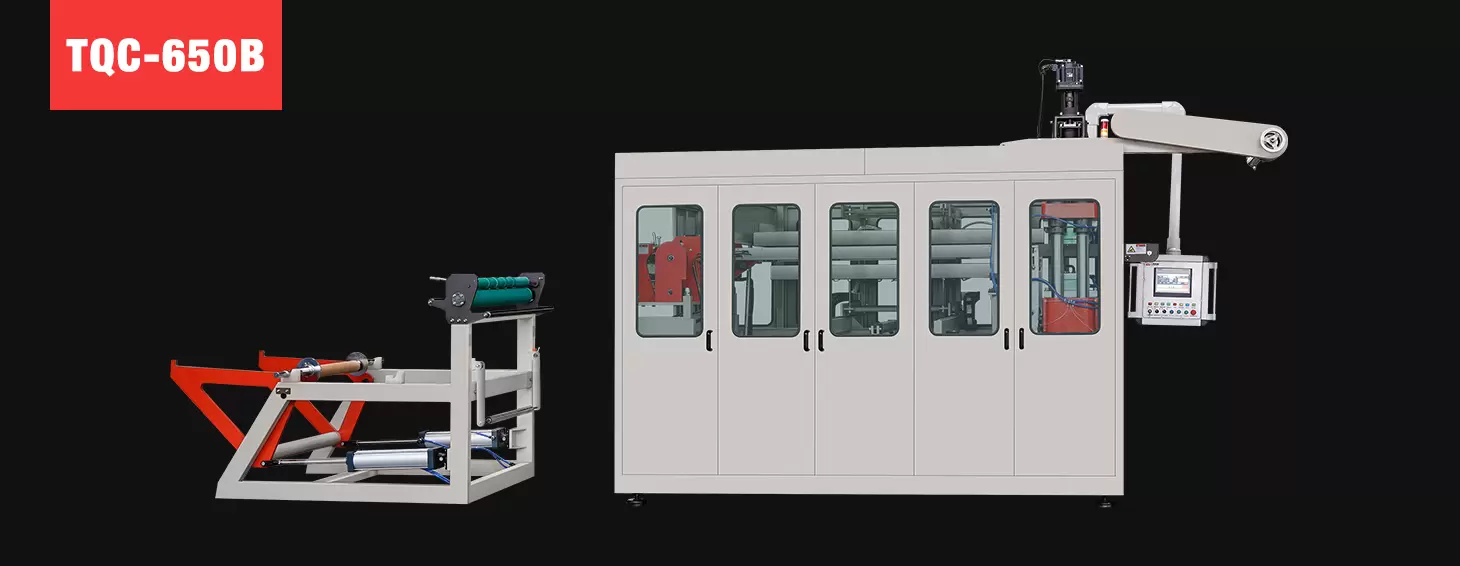

Line diagramTQC-650B
Application

Plastic cup thermoforming machine is our lasted developed product, Sheet feeding and stretching part are driven by servo motor. Machine produces disposable products, such as plastic cup, bowl, lid, and box through the workflow of sheet feeding, sheet heating, forming, cutting and blowing, widely used and suitable for most of the customer requested. PLC for program, manual interface for operation, stable, low noise, and high efficiency

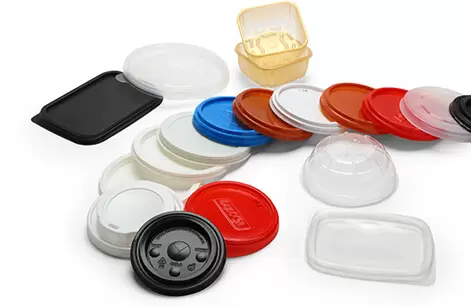

  • Plastic Coffee Cup
  • Disposable Cup
  • Disposable Plate
  • Cup Lid
  • HIPS Bowl
  • water cup jelly cup
  • Degradable Plate
  • Mooncake Box
  • hardware tray
  • plastic bowl
  • toy tray
  • candy box
  • fruit box
  • salad box
  • chocolate tray
  • sauce container
  • cosmetic tray
  • lunch box
  • takeaway box
  • plastic Lid
  • sushi box
  • packaging box
  • cookie box

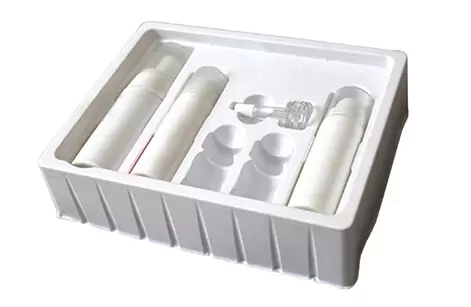

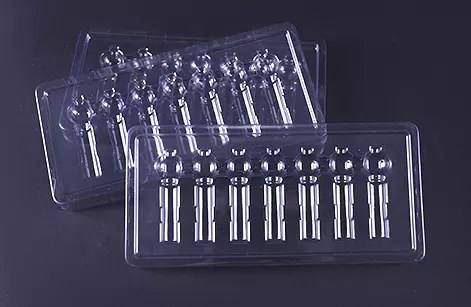

  • Ampoule tray
  • Ampoule tray
  • Injection tray
  • fruit box
  • cake box
  • cake box
  • lunch box
  • Ice Cream Cup
  • Cup
  • Transparent Juice Cups
  • Ice Cream Bowl
  • Cup
  • Cup Lid
  • Cup Lid
  • Fresh Keeping Box
  • Cake box

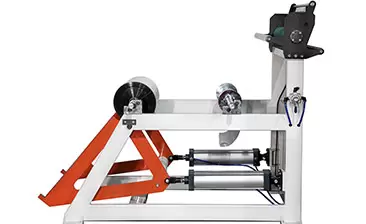

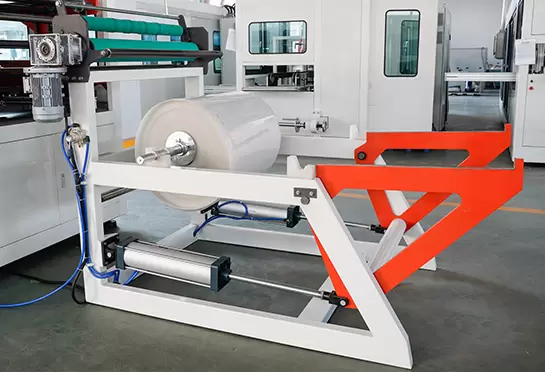

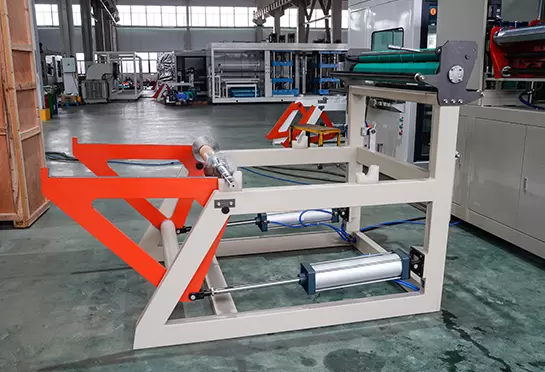

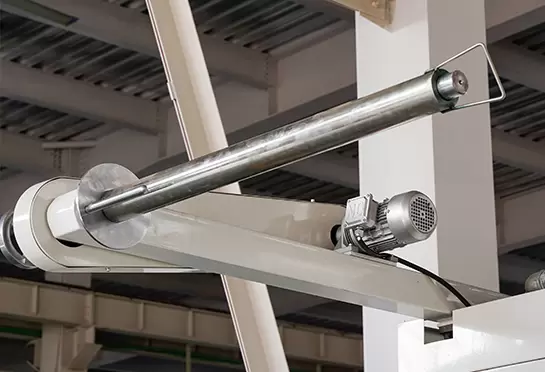

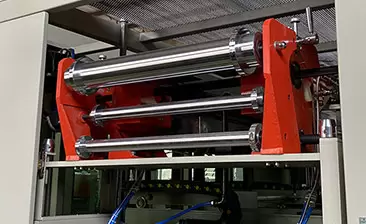

  • Sheet feeding
  • Sheet conveying

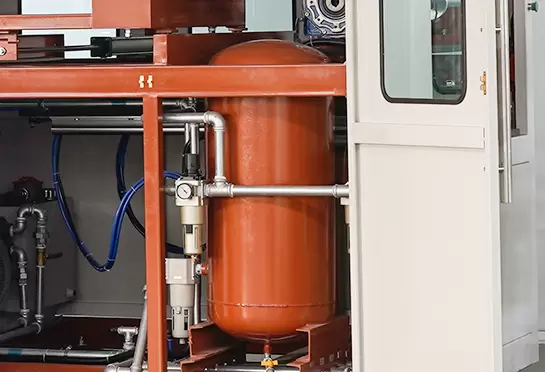

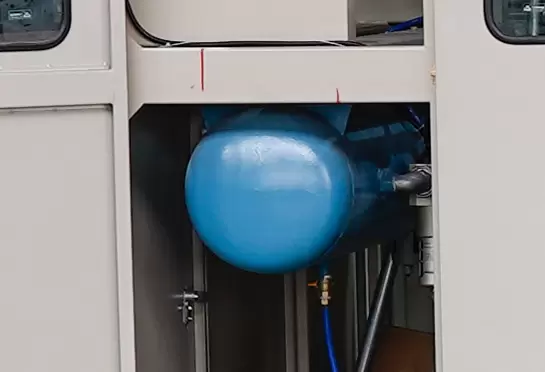

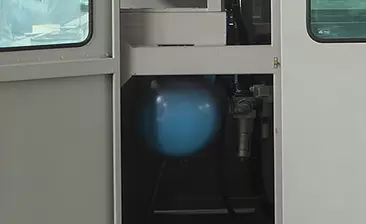

  • Air tank

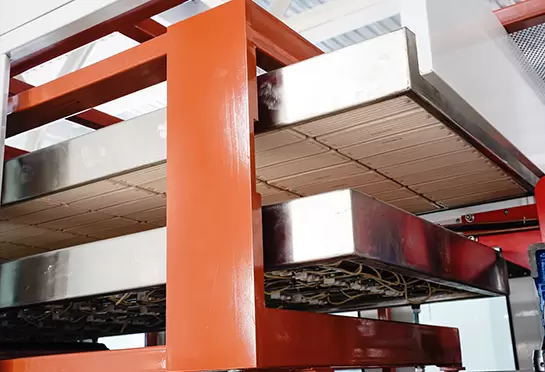

  • Heating

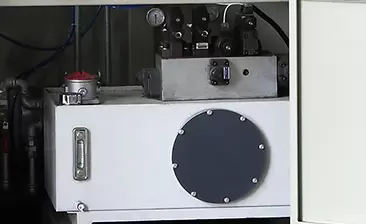

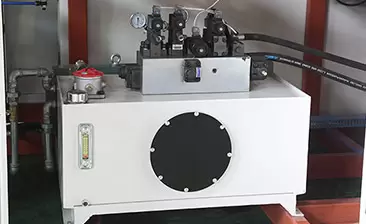

  • Hydraulic
    station
  • Servo motor

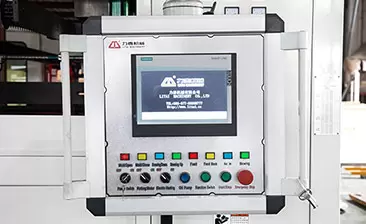

  • Touch screen:
    SIEMENS
  • Wasting sheet
    collecting part

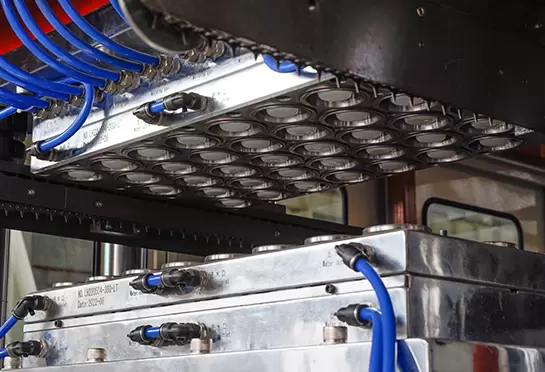

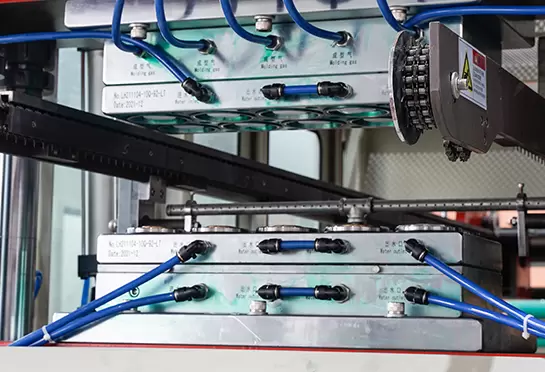

  • Mould
    (650*300mm)
Mould
(650*300mm)
Sheet feeding
Sheet feeding
Sheet conveying
Sheet conveying
Air tank
Air tank

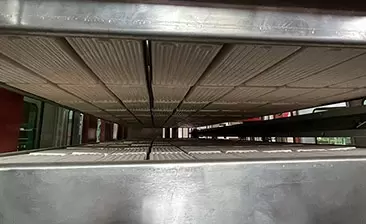

Heating
Heating
Hydraulic
station
Hydraulic
station
Servo motor
Servo motor
Touch screen:
SIEMENS
Touch screen:
SIEMENS
Wasting sheet
collecting part
Wasting sheet
collecting part
Mould
(750*480mm)
  • Sheet feeding
  • Sheet conveying
  • Air tank
  • Heating
  • Hydraulic
    station
  • Servo motor
  • Touch screen:
    SIEMENS
  • Wasting sheet
    collecting part
  • Mould
    (750*480mm)


SUMMARY OF MACHINE

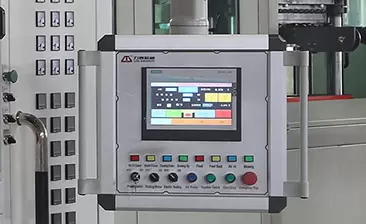

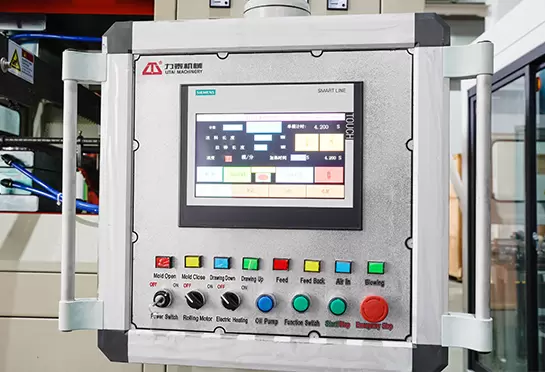

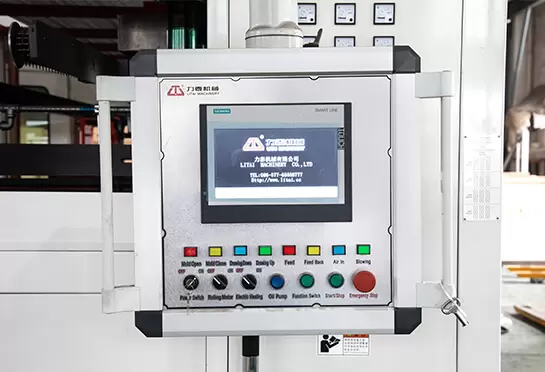

  • Industrial manual interface and PLC of SIEMENS (Germany) make the high degree automation, accurate control and convenient operation. The document storage function simplifies the operational processes.

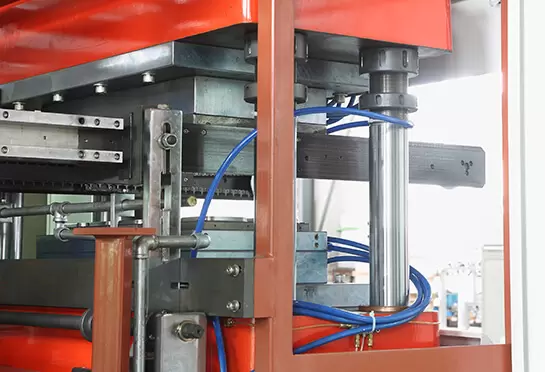

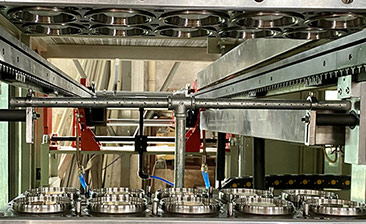

  • Working stations is driven by stable four guiding-pillars (GCr15 steel, outside is hard chrome plated) structure. Wear resistant, and extend equipment life.

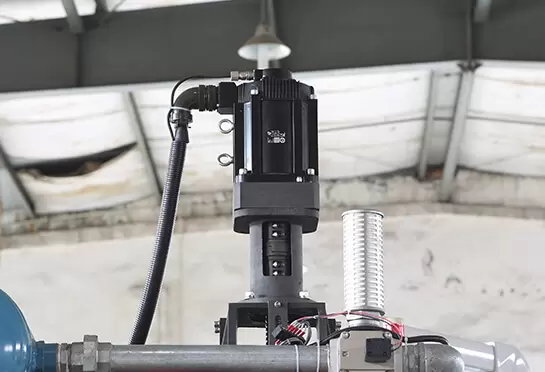

  • Stretching servomotor of YASKAWA (Japan) controls the speed of the upper and lower die, this can maintain the uniform strength to ensure that the bottom thickness of each cup is uniformly. And the ser

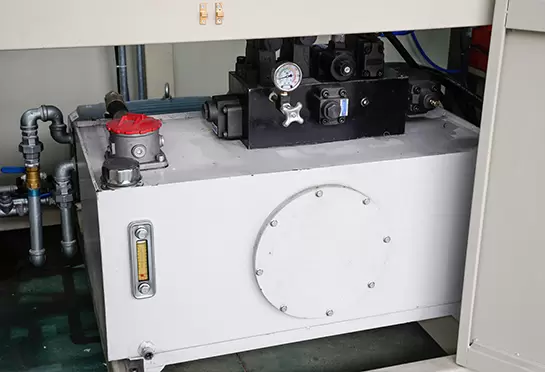

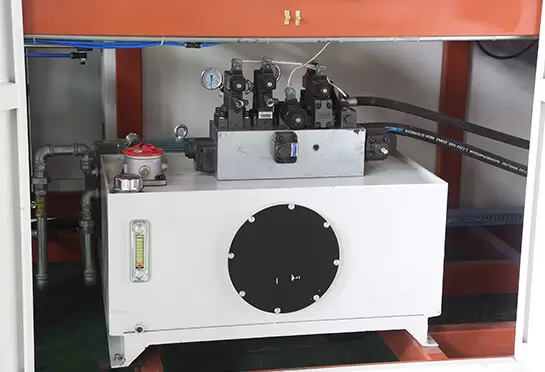

  • Hydraulic driven system can provide adequately movement speed and strongly punching power.
  • The whole part is driven by hydraulic system, which is reliable and steady. Using proximity switch of ROCKWELL (USA) leads to excellent mould positioning precision.

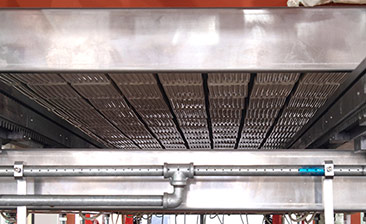

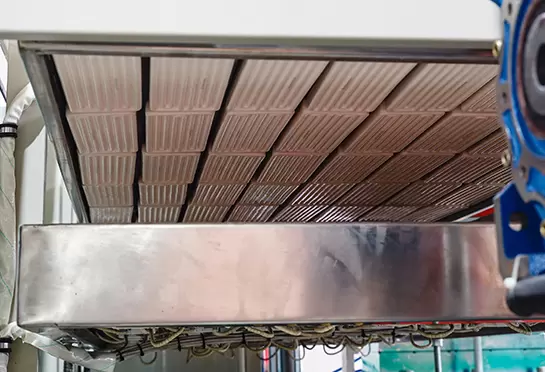

  • The heater added vacuum insulation cotton, which shows quick response rate, short processing time, and save energy.

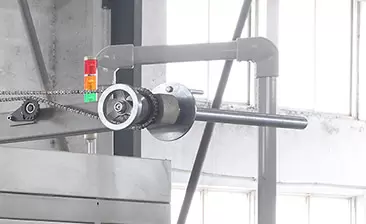

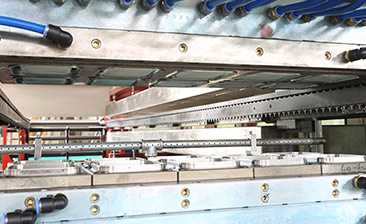

  • Sharp chain uses 65#Mn, which has higher strength, better heat resistance and elasticity than 45# steel.

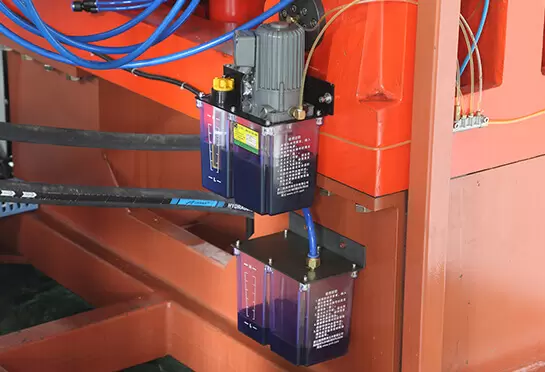

  • The electric lubricating oil pump can automatically inject lubricating oil regularly and quantitatively through the control of computer under the condition of unmanned control, which can make the rota

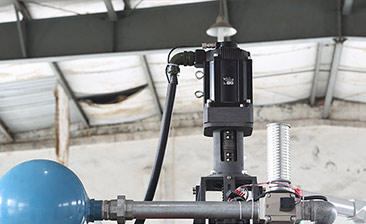

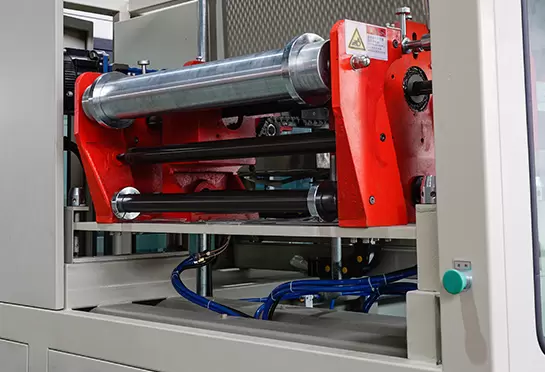

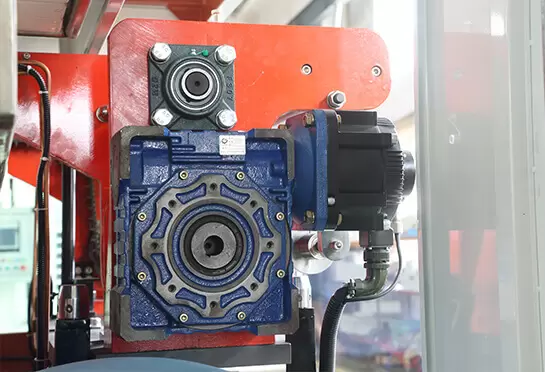

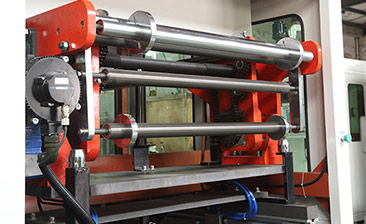

  • Sheet feeding servo motor adopt YASKAWA brand, made in Japan, the rated power is 3Kw, ensure stable operation in the process of feeding.
Industrial manual interface and PLC of SIEMENS (Germany) make the high degree automation, accurate control and convenient operation. The document storage function simplifies the operational processes. Industrial manual interface and PLC of SIEMENS (Germany) make the high degree automation, accurate control and convenient operation. The document storage function simplifies the operational processes.
Working stations is driven by stable four guiding-pillars (GCr15 steel, outside is hard chrome plated) structure. Wear resistant, and extend equipment life. Working stations is driven by stable four guiding-pillars (GCr15 steel, outside is hard chrome plated) structure. Wear resistant, and extend equipment life.
Stretching servomotor of YASKAWA (Japan) controls the speed of the upper and lower die, this can maintain the uniform strength to ensure that the bottom thickness of each cup is uniformly. And the ser Stretching servomotor of YASKAWA (Japan) controls the speed of the upper and lower die, this can maintain the uniform strength to ensure that the bottom thickness of each cup is uniformly. And the ser
Hydraulic driven system can provide adequately movement speed and strongly punching power. Hydraulic driven system can provide adequately movement speed and strongly punching power.

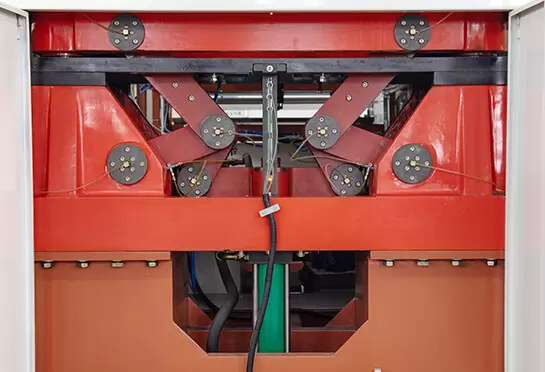

The whole part is driven by hydraulic system, which is reliable and steady. Using proximity switch of ROCKWELL (USA) leads to excellent mould positioning precision. The whole part is driven by hydraulic system, which is reliable and steady. Using proximity switch of ROCKWELL (USA) leads to excellent mould positioning precision.

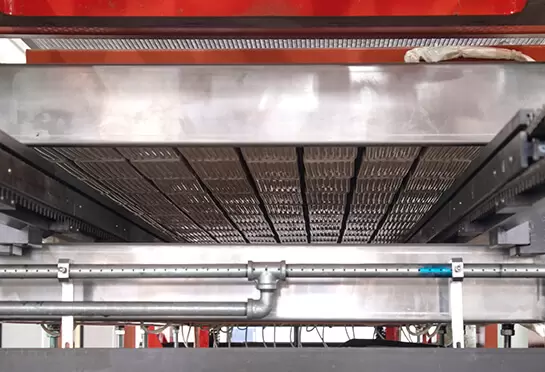

The heater added vacuum insulation cotton, which shows quick response rate, short processing time, and save energy. The heater added vacuum insulation cotton, which shows quick response rate, short processing time, and save energy.

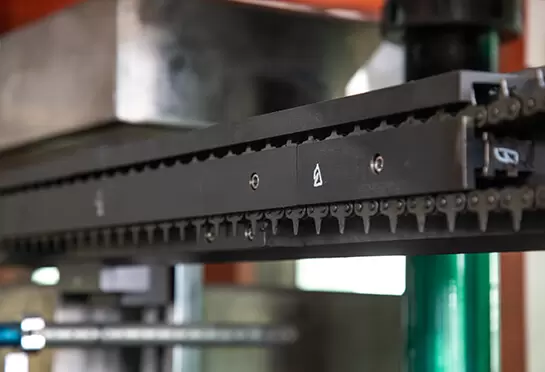

Sharp chain uses 65#Mn, which has higher strength, better heat resistance and elasticity than 45# steel. Sharp chain uses 65#Mn, which has higher strength, better heat resistance and elasticity than 45# steel.
The electric lubricating oil pump can automatically inject lubricating oil regularly and quantitatively through the control of computer under the condition of unmanned control, which can make the rota The electric lubricating oil pump can automatically inject lubricating oil regularly and quantitatively through the control of computer under the condition of unmanned control, which can make the rota
Sheet feeding servo motor adopt YASKAWA brand, made in Japan, the rated power is 3Kw, ensure stable operation in the process of feeding. Sheet feeding servo motor adopt YASKAWA brand, made in Japan, the rated power is 3Kw, ensure stable operation in the process of feeding.
