AUXILIARY EQUIPMENT

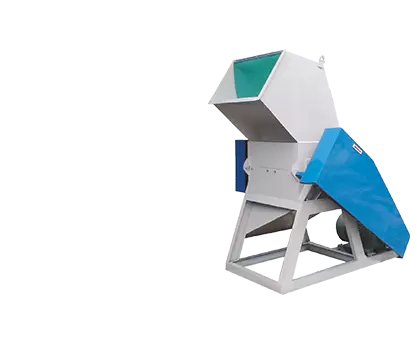

Crusher TP-650
Crushing waste sheetHome /

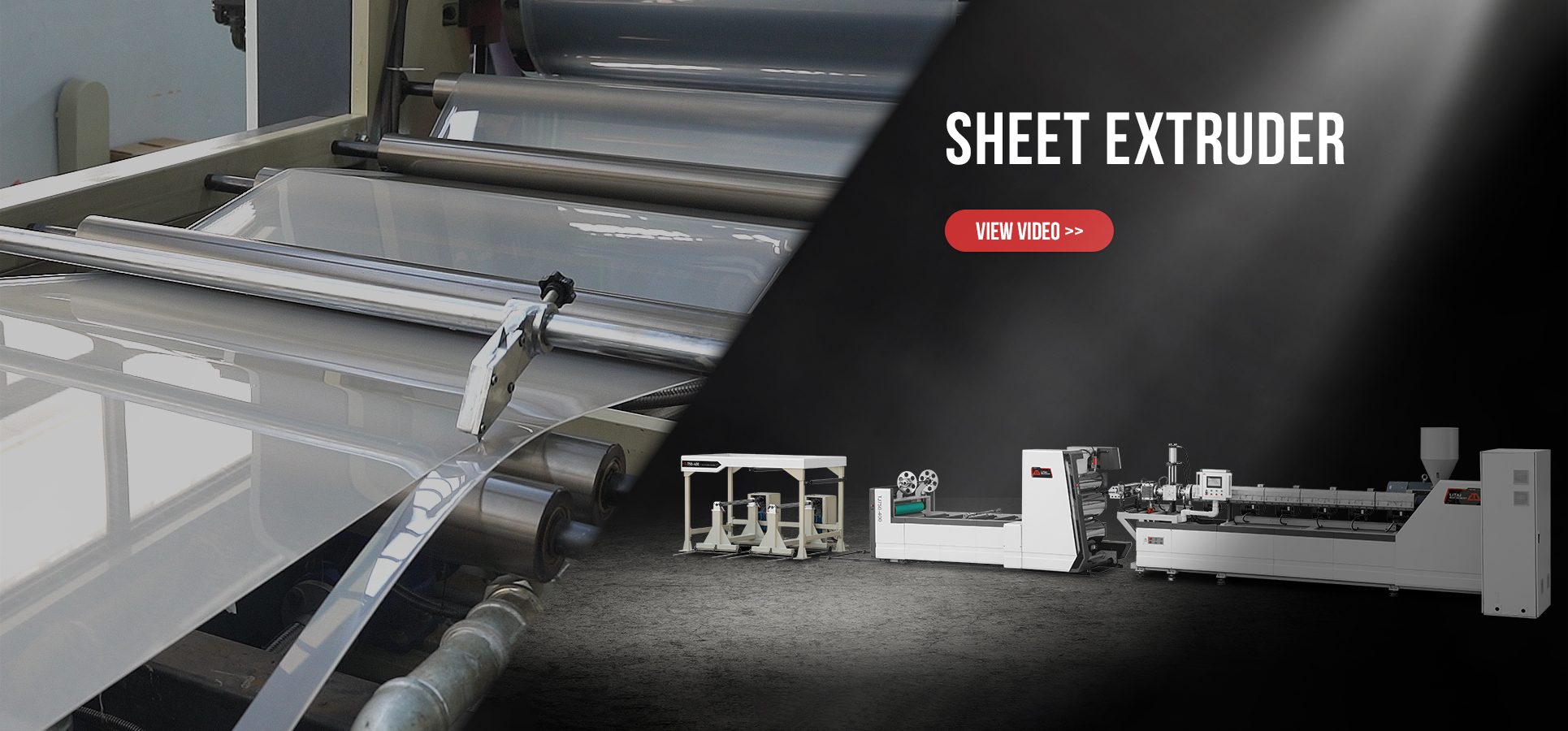

Sheet Extruder
Sheet Extruder
Manufacturing and sales of industry and trade
Capability of crushing：300kg/hr
Diameter：10.5mm
Convoluted blade：6pc
Fixed blade：4pc
Motor power： 15 kw
Power Supply：3PH-380V/50Hz
Dimension：L1600 x W1200 x H2000mm
Weight：500kg

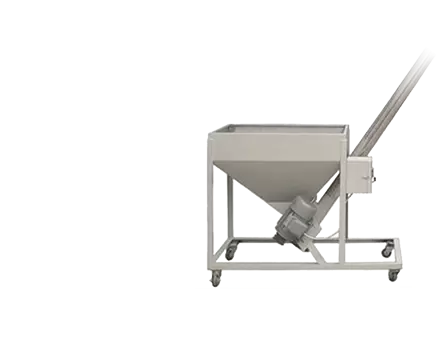

AUXILIARY EQUIPMENTAutomatic FeederFeeding material automatic
ZD-2000Model：ZD-2000
Max. Output(one hour)：2000kg
Rated power：2.3kw
Power supply：3PH-380V/50Hz
Dimension the base part： L900xW900xH700mm
Dimension stainless steel pipe：L1400*D133mm
Feeding method：Screw feeding
AUXILIARY EQUIPMENTMixerMixing waste material and new material
TJB-1100Hopper：1100mm
Motor power：2.2kw
Power Supply：3PH-380V/50Hz
Per Max Output(one time)：125kg
Per Max Output(one hour)：500kg
Dimension：L1100xW1100xH1050mm
Weight：125kg
AUXILIARY EQUIPMENTCooling TowerCooling the three rollers
30TModel：30T
Height：2300mm
Diameter：1800mm
Motor Power：1.1kw
Power Supply： 3PH-380V/50Hz
Capacity：30T
Weight：100kg
MAIN TECHNICAL PARAMETER
| Model |
| Suitable Material |
| Max. Width of Product |
| Sheet Thickness Range |
| Screw Rod Dia. (Main machine) |
| Screw Rod Dia. (Auxiliary machine) |
| Screw L/D ratio (Main machine) |
| Screw L/D ratio (Auxiliary machine) |
| Main Motor Power |
| Max. Output |
| Power Supply |
| Dimension |
| Weight |
| PP PS |
| 770mm |
| 0.3-2.0mm |
| 110mm |
| - |
| 32:1 |
| - |
| 75kw |
| 240kg/hr |
| AC 380V,50Hz, Three-phase , Four-wire |
| L14000xW2600xH1800mm |
| About 9T |
| PP PS |
| 770mm |
| 0.3-2.0mm |
| 110mm |
| - |
| 32:1 |
| - |
| 75kw |
| 240kg/hr |
| AC 380V,50Hz, Three-phase , Four-wire |
| L14000xW2600xH1800mm |
| About 9T |
High security
High stability
Low noise
Low energy
consumption
High utilization
Fully automatic

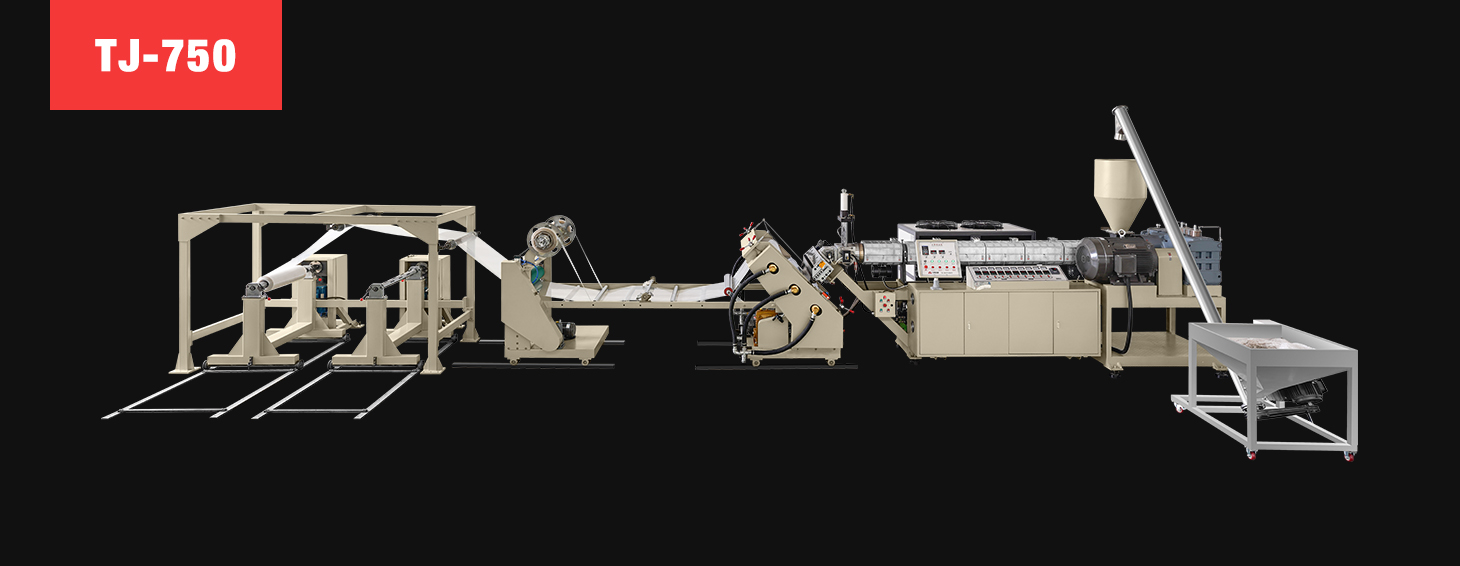

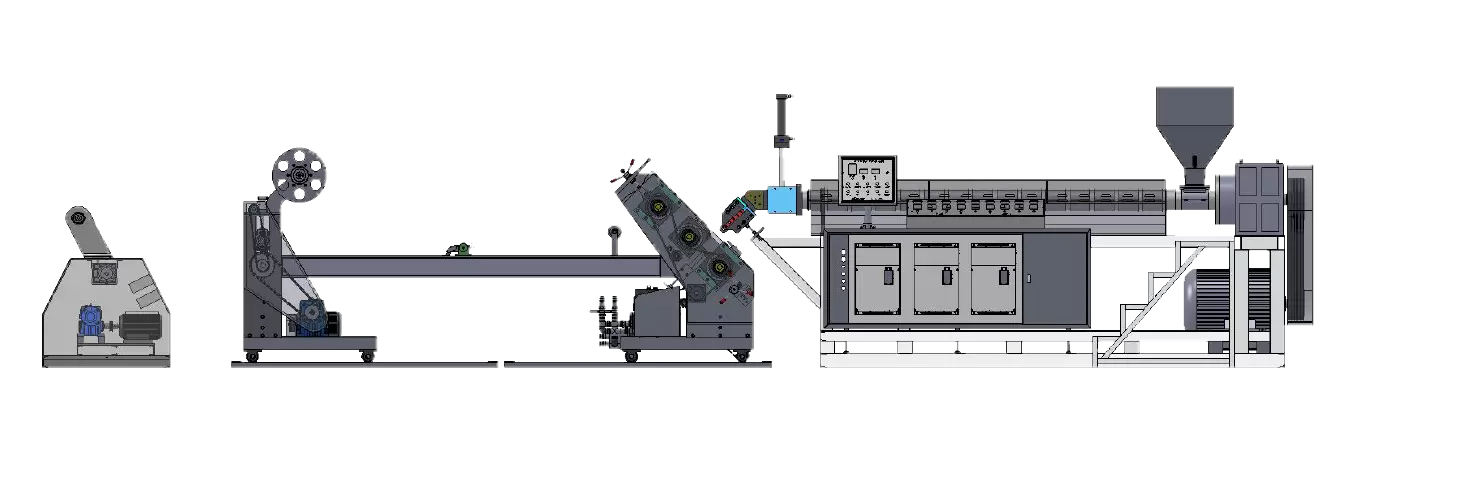

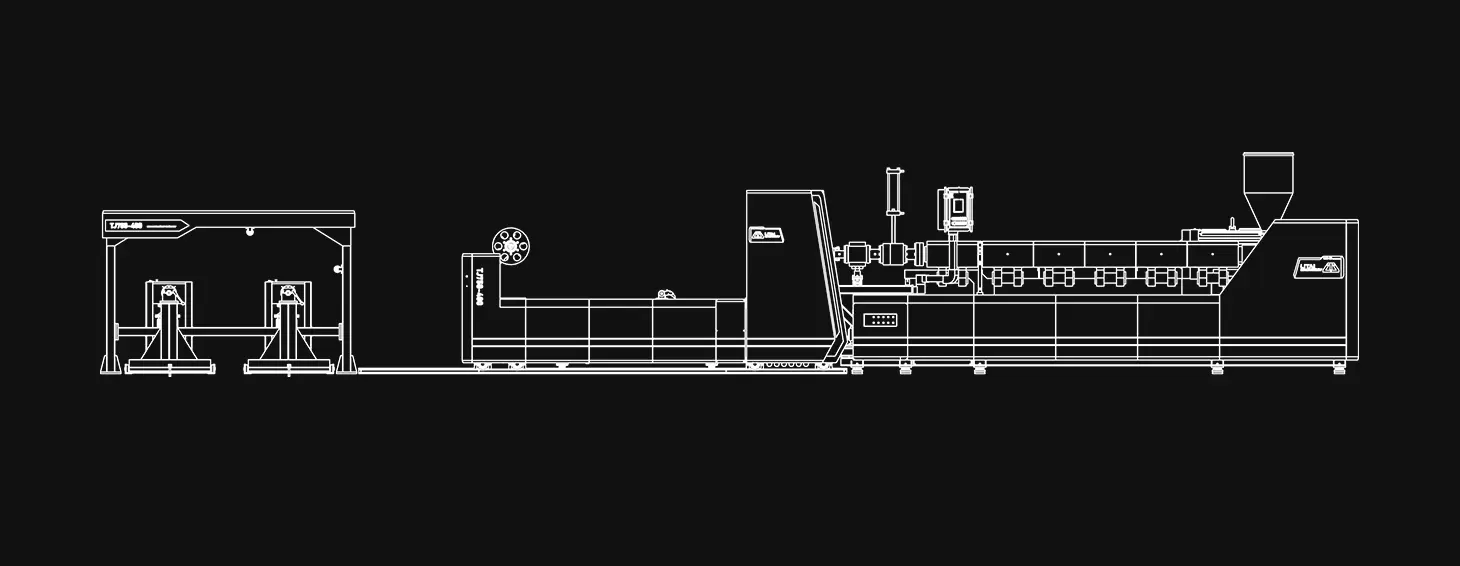

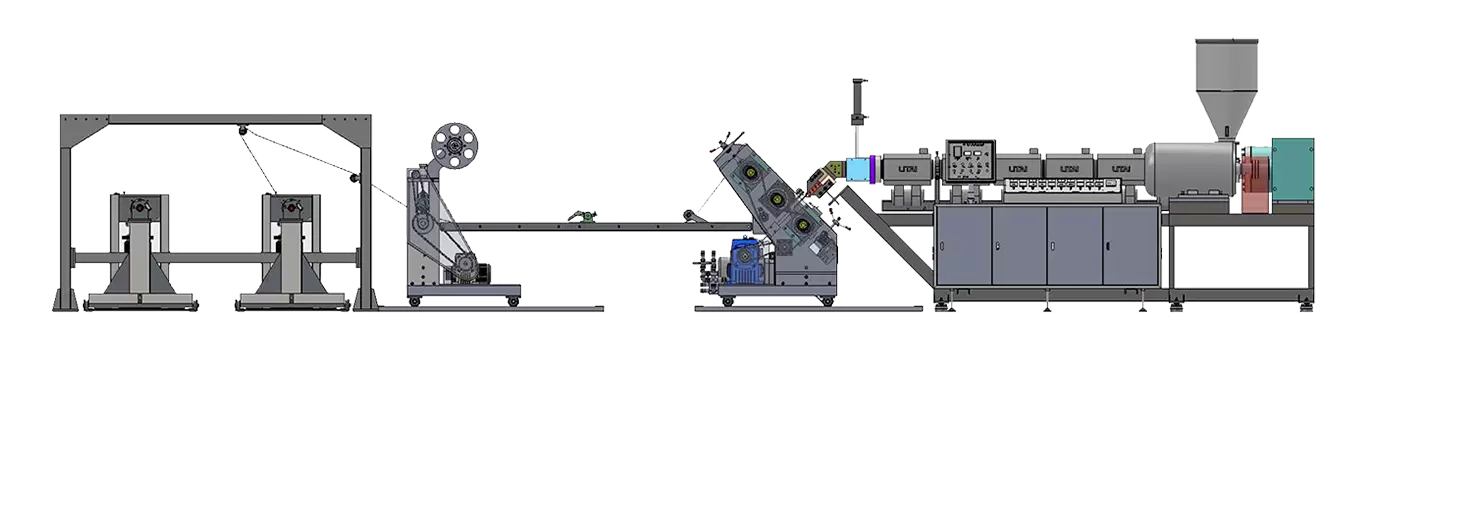

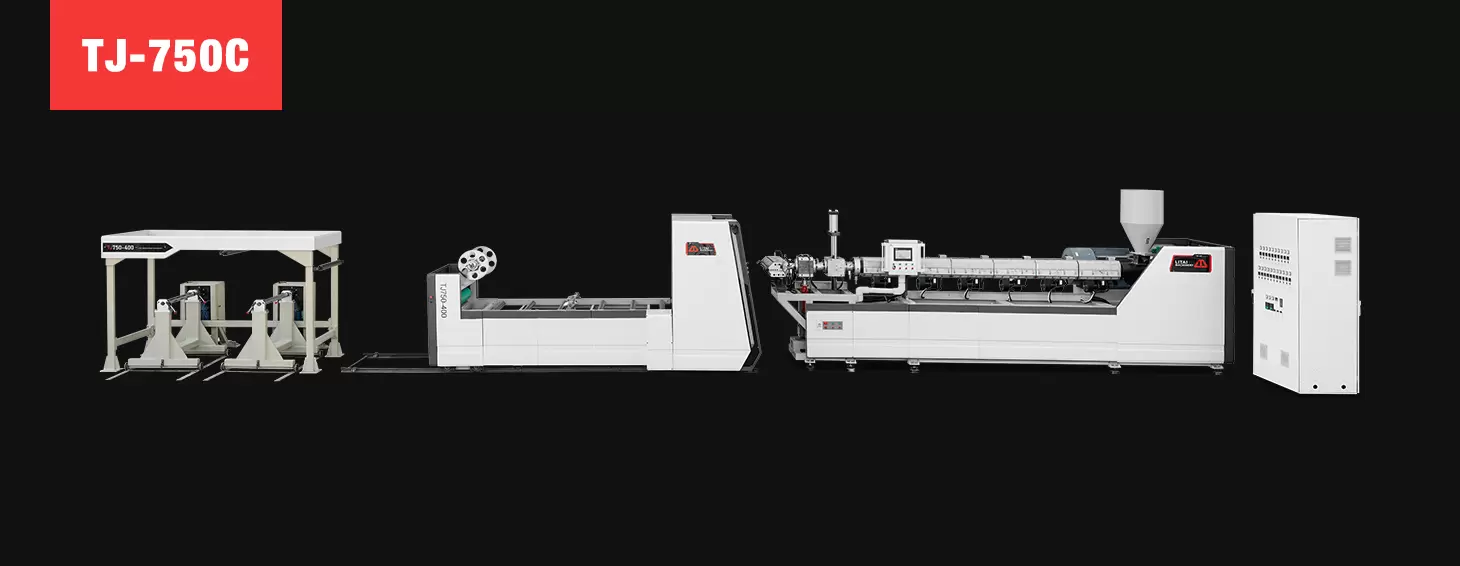

Line diagramTJ-750C

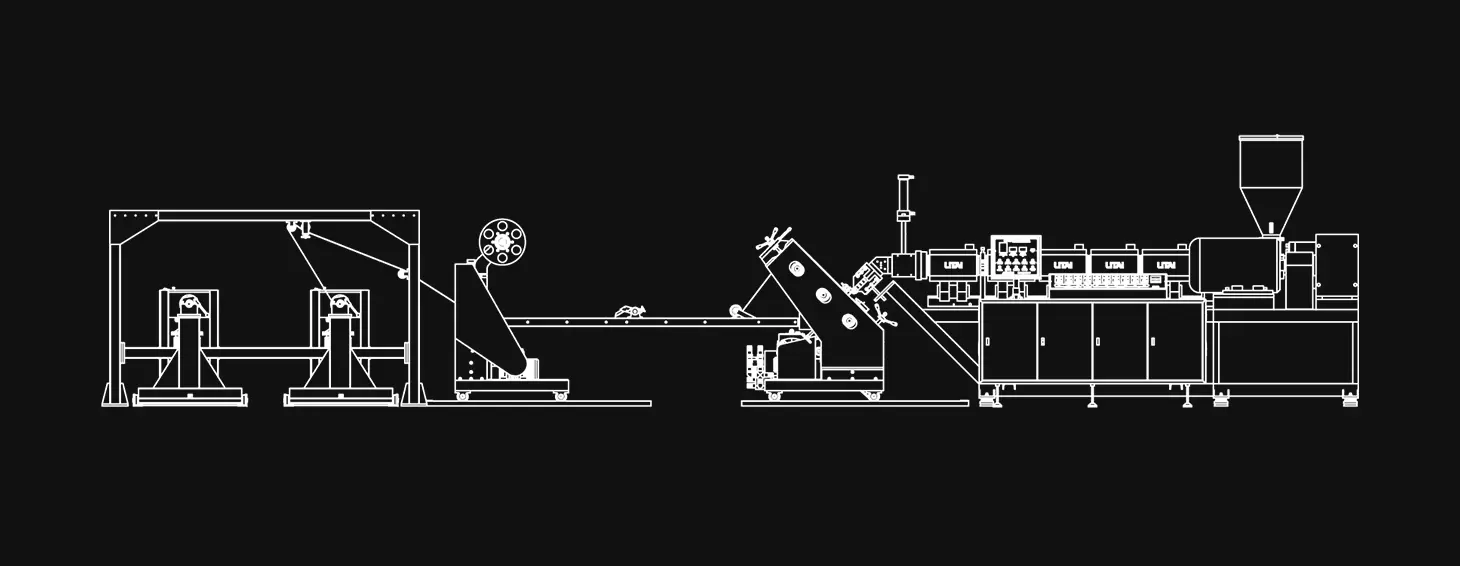

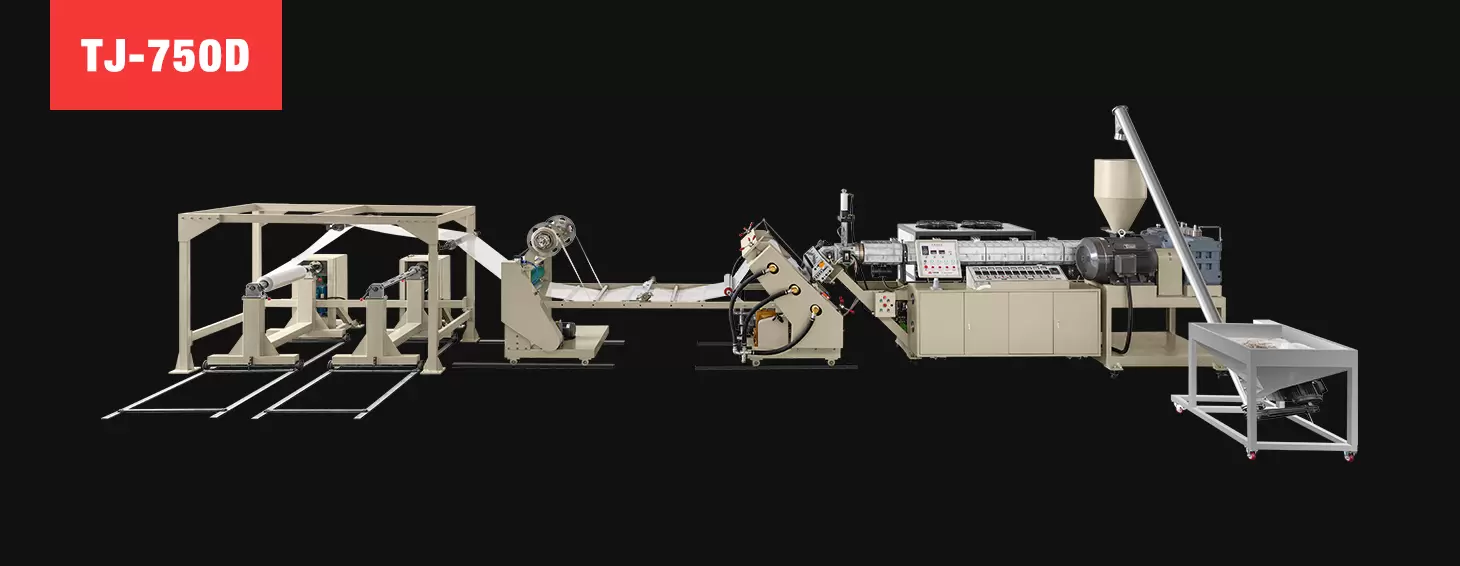

Line diagramTJ-750D

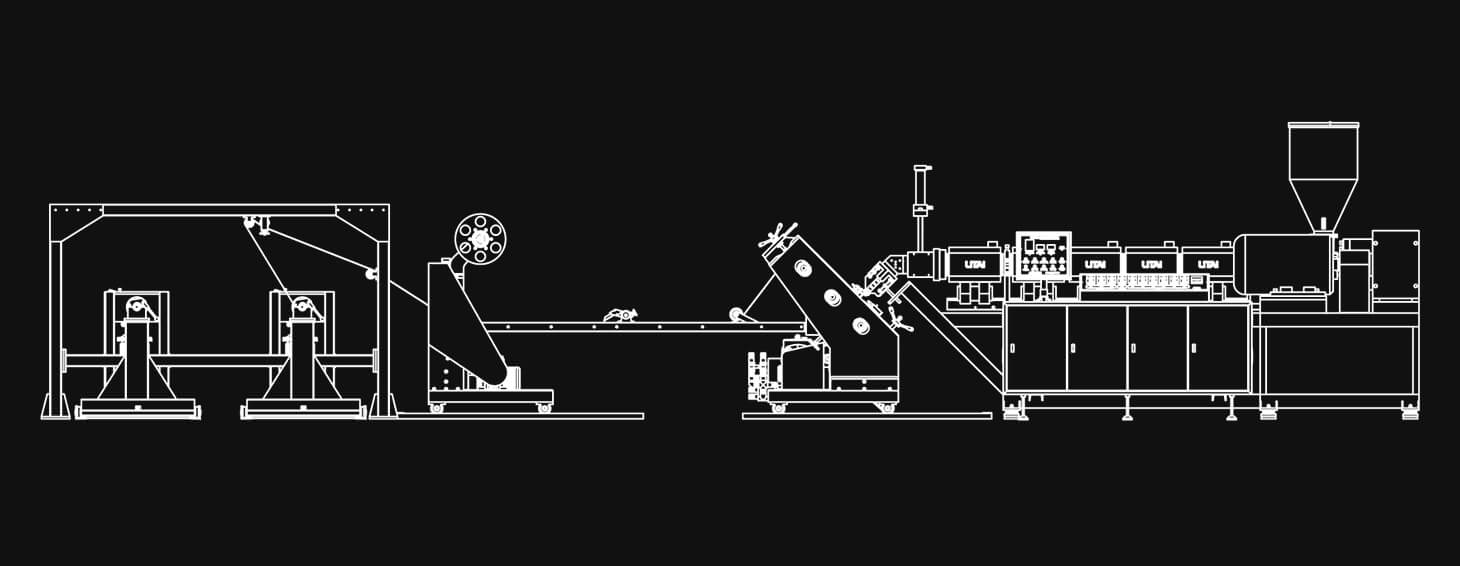

Line diagramTJS-750
Application
The sheet extruder is composed of extrusion, calendaring, traction and rolling. The main parts are abrasion resistant, resistant to corrosion, high-temperature resistant by high quality specially-treated. Low resistance force in die head extruding channel makes sheet thickness evenly, the internal spiral tank in three rollers ensures an effective cooling and it is easy to change and install net changer with the hydraulic pressure unit, no need to stop machine. The machine extrudes PP/PS granule to PP/PS sheet with single color, which is used for producing plastic products by plastic thermoforming machines, like cups, food container, trays, dishes, bowls, lids, etc.
-

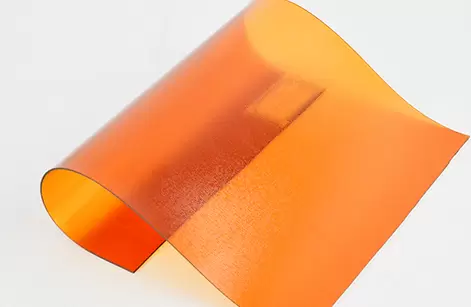

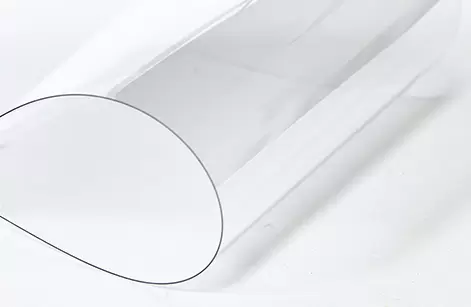

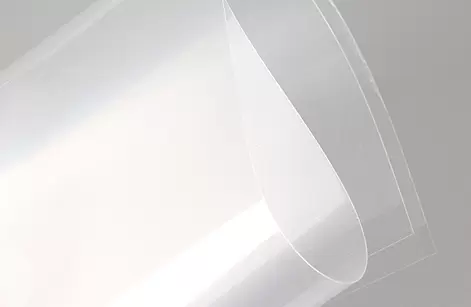

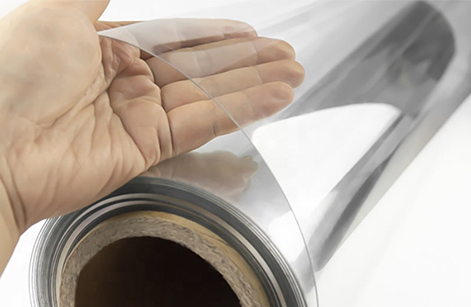

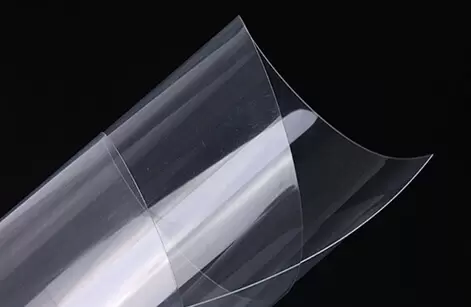

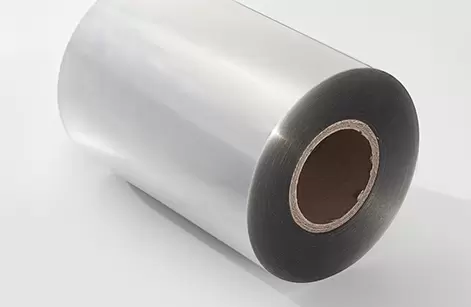

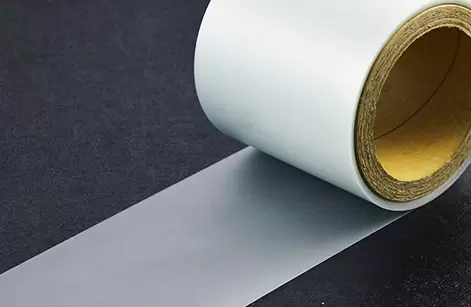

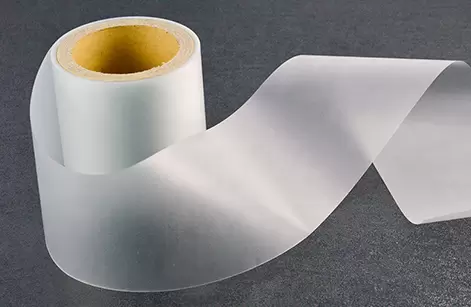

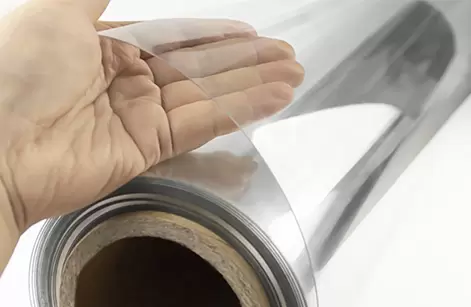

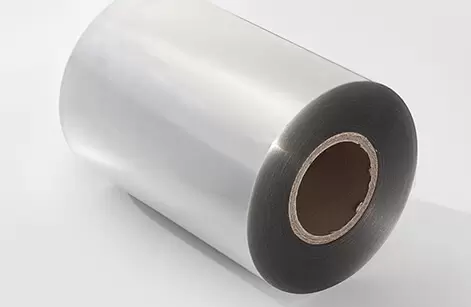

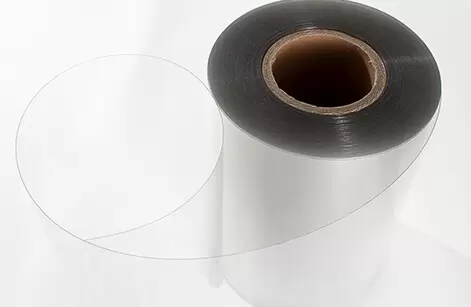

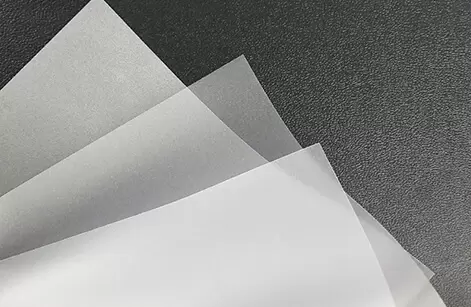

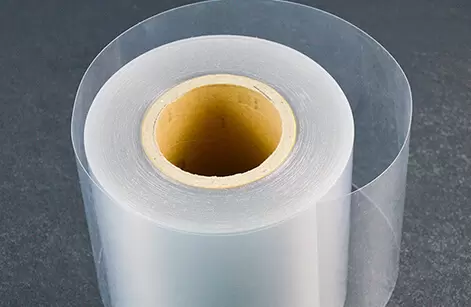

Transparent PS sheet -

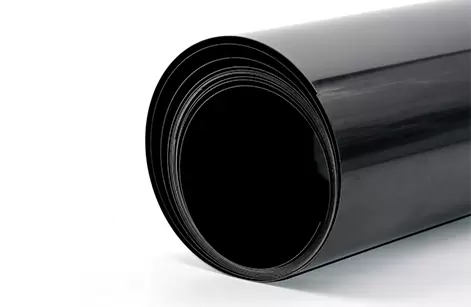

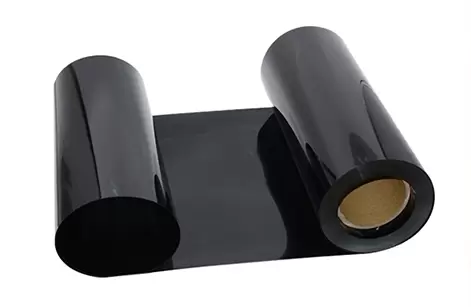

black PS sheet -
Red PS sheet -

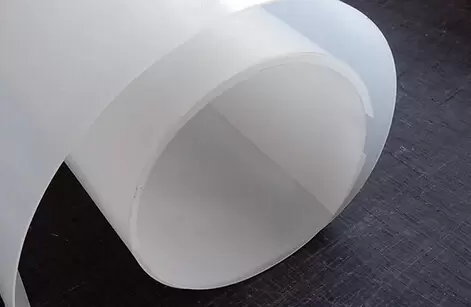

Milky white PS sheet -
Black PS sheet -
Transparent PS sheet -
Transparent PS sheet -
Transparent PS sheet -
Black PS sheet -

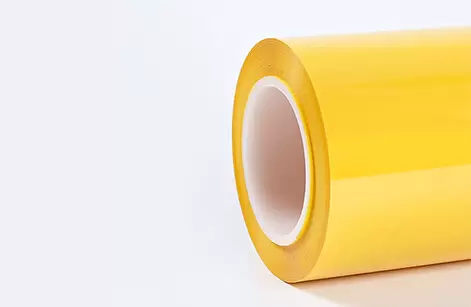

Yellow PS sheet -
Transparent PS sheet -
Transparent PS sheet -
Milky PS sheet -
Milky PS sheet -
Transparent PS sheet -

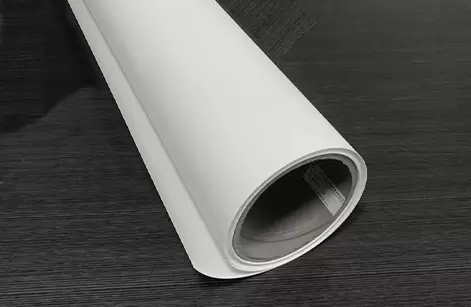

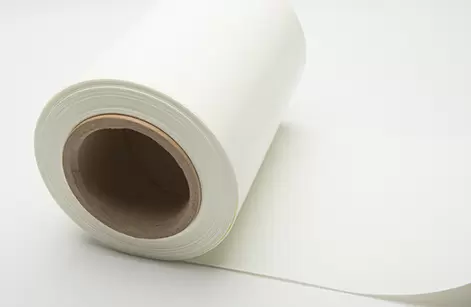

White PS sheet -
White PP sheet -

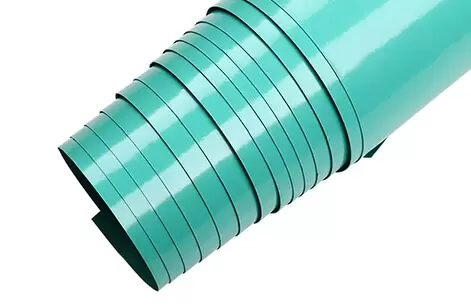

Green PP sheet -

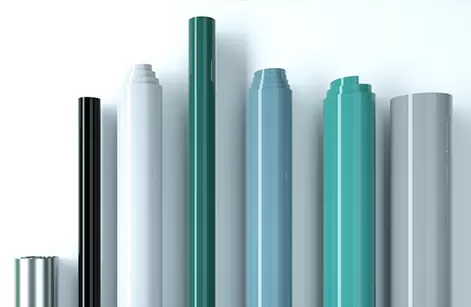

Multicolor PP Sheet -
Transparent PP sheet -
White PP sheet -
Yellow PP sheet -
Black PP sheet -
Black PP sheet -
Multicolor PP Sheet -
Milky white PP sheet -
Multicolor PP Sheet -
Milky PP sheet -
Transparent PP sheet -
Fresh Keeping Box -
Biscuit box -
Cake box

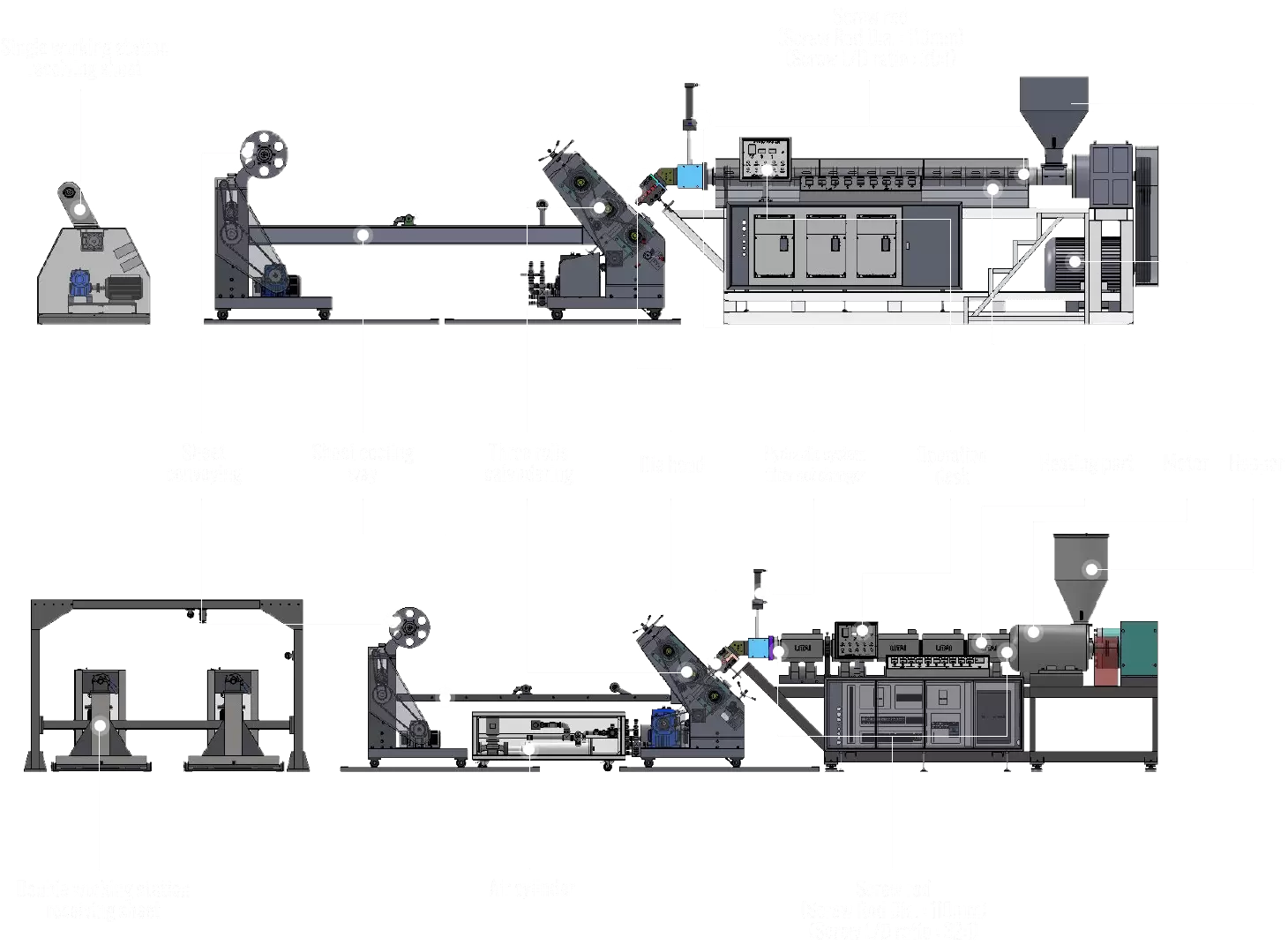

Single working station
receiving sheetScrew rod
(Screw Rod Dia. : 110mm)
(Screw L/D ratio : 30:1)
receiving sheetScrew rod
(Screw Rod Dia. : 110mm)
(Screw L/D ratio : 30:1)
- Single working station
receiving sheet
- Sheet
conveying
- Sheet cooling
way
- Three rolls
calendering
- Die head
- Hydraulic system
filter net changer

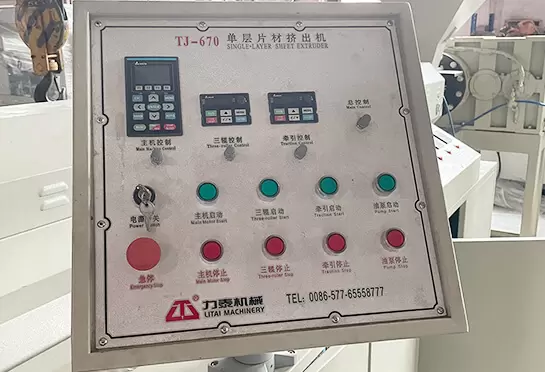

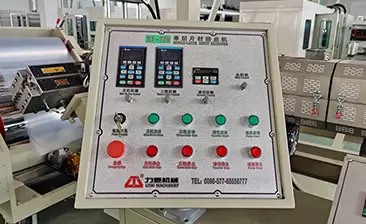

- Operation
desk
- Screw rod
(Screw Rod Dia. : 110mm)
(Screw L/D ratio : 30:1) - Screw rod
(Screw Rod Dia. : 110mm)
(Screw L/D ratio : 30:1) - Heating part

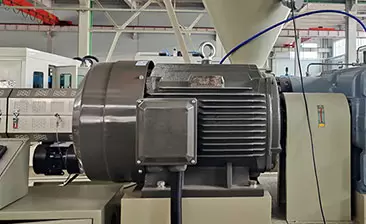

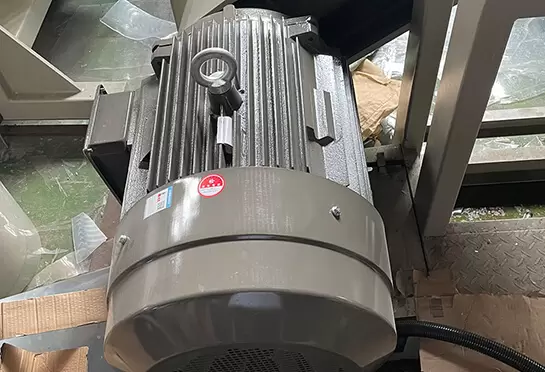

- Motor
- Hopper
Sheet
conveying
conveying
Sheet
conveying
conveying
Sheet cooling
way
way
Sheet cooling
way
way
Three rolls
calendering
calendering
Three rolls
calendering
calendering
Die head
Die head

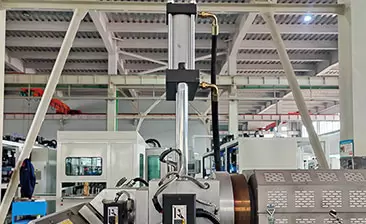

Hydraulic system
filter net changer
filter net changer
Hydraulic system
filter net changer
filter net changer
Operation
desk
desk
Operation
desk
desk
Heating part
Heating part
Motor
Motor
Hopper
Hopper
- Double working station
receiving sheet
- Sheet
conveying
- Air cylinder
- Sheet cooling
way
- Three rolls
calendering
- Die head
- Hydraulic system
filter net changer
- Operation
desk
- Heating part
- Motor
- Hopper
- Screw rod
(Screw Rod Dia. : 110mm)
(Screw L/D ratio : 32:1) - Screw rod
(Screw Rod Dia. : 110mm)
(Screw L/D ratio : 32:1)
Double working station
receiving sheetAir cylinderScrew rod
(Screw Rod Dia. : 110mm)
(Screw L/D ratio : 32:1)
receiving sheetAir cylinderScrew rod
(Screw Rod Dia. : 110mm)
(Screw L/D ratio : 32:1)
SUMMARY OF MACHINE

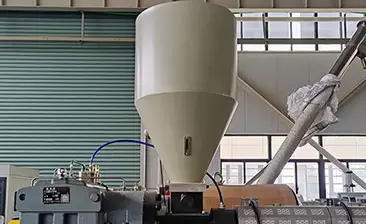

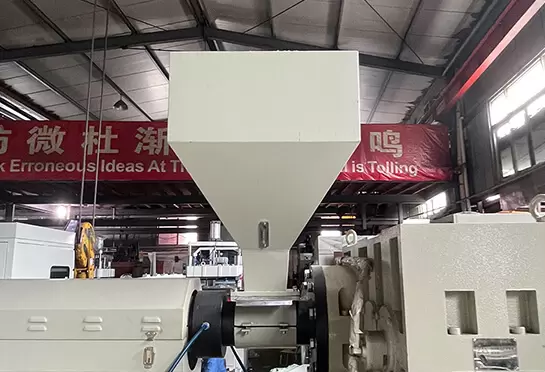

- Hopper:Feeding and heating part have optoelectronic switch in order to prevent error operating from production process.

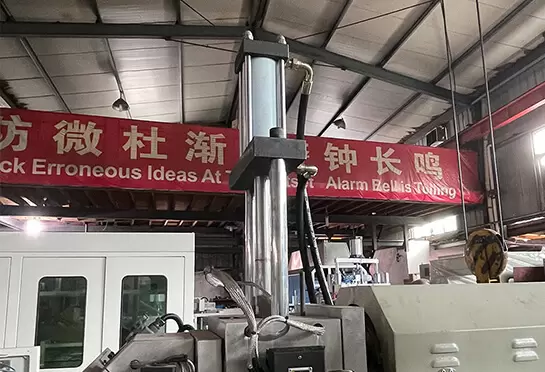

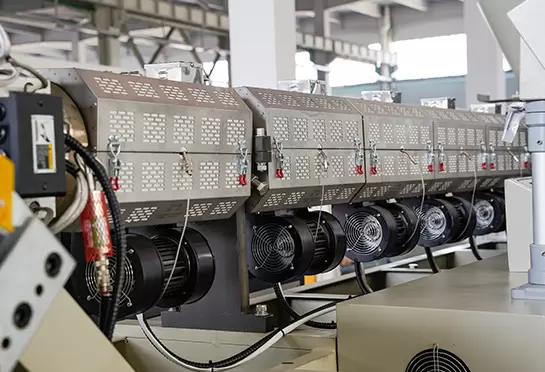

- Sheet Heating Part: heating plastic material;Extrude the material to the screen changer after filtering.With optimum hardness, strong corrosion resistance and long service life.

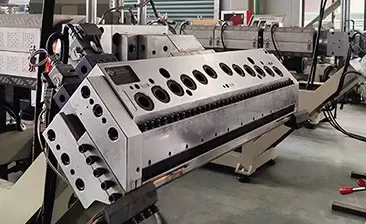

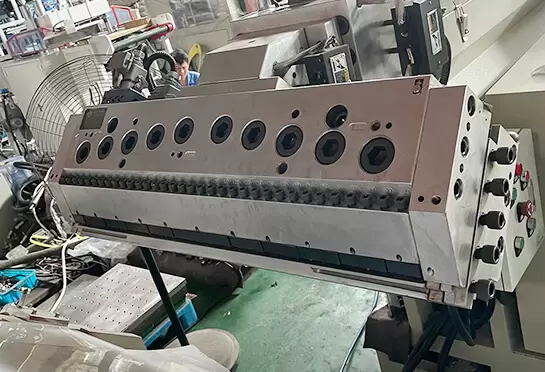

- 45° oblique extrusion die: Low resistance force in die head extrusion channel makes sheet thickness evenly.

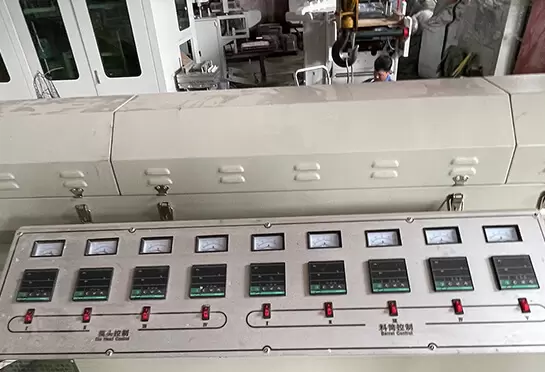

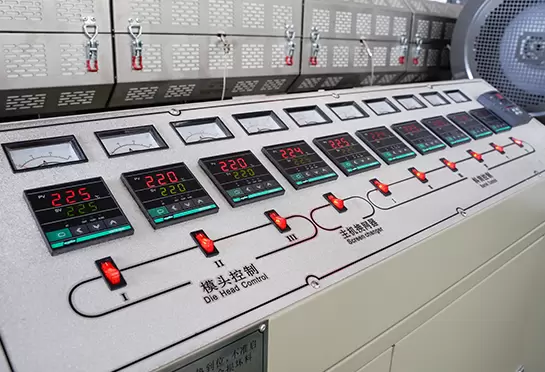

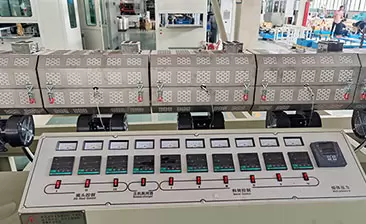

- The machine adopts PID temperature system, it shows high precision, and temperature control tolerance ＜1℃.

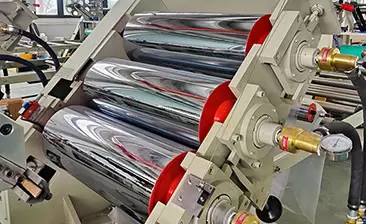

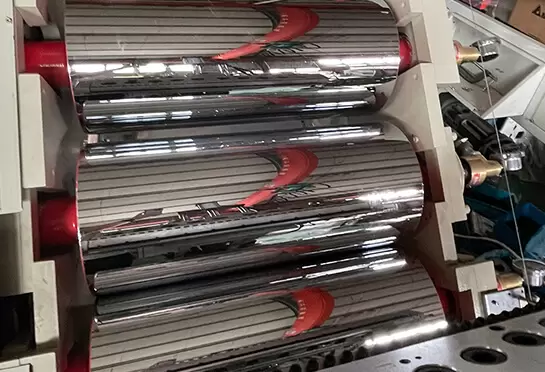

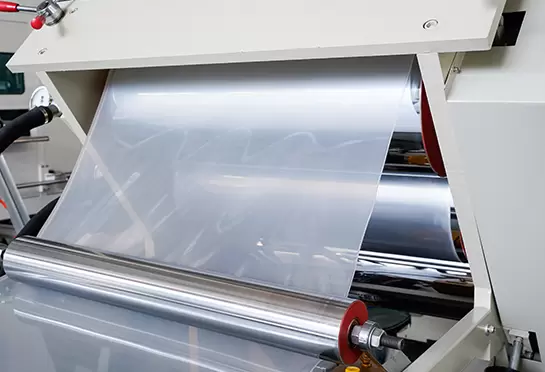

- Three roller part pressing the raw material extruded by the die into a plate shape and cooling to form ; three rollers are oblique three rollers, simple structure, easy operation and maintenance.

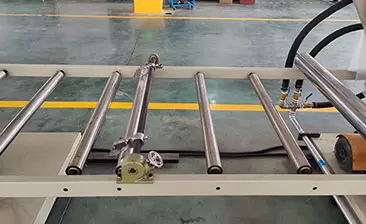

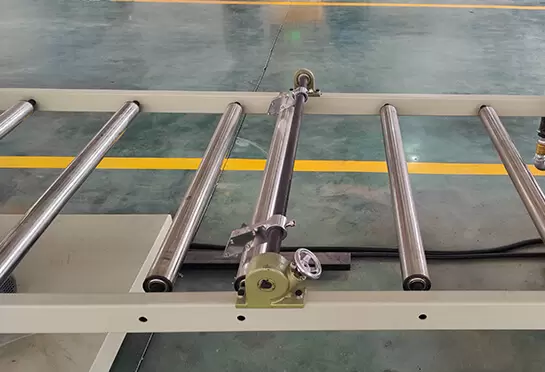

- Cooling frame function: cooling transition, remove excess scrap, get the required width sheet. Excessive rollers and cutters.
- Edge material winding : winding the cut edge material into bundles.

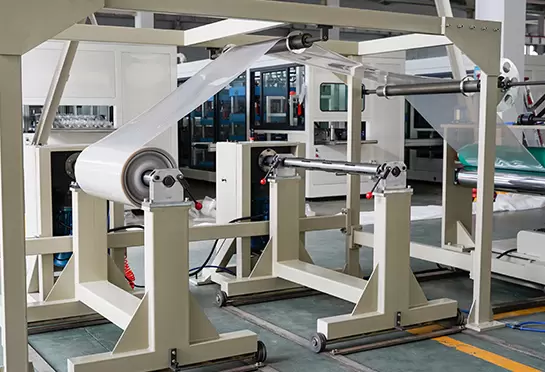

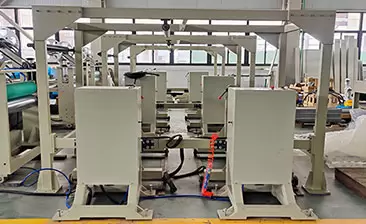

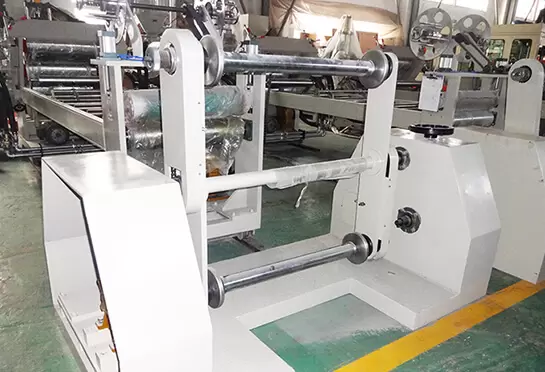

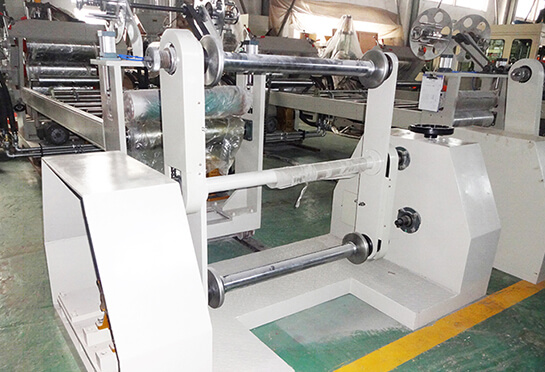

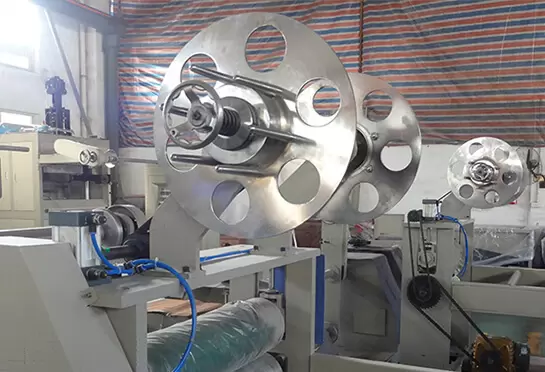

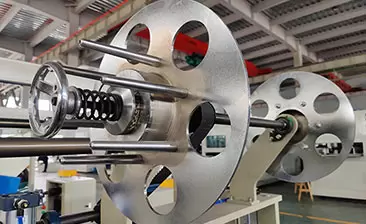

- Double station winding part adopts cart type switching, winding roller with gas shaft, easy disassembly, high efficiency, low labor intensity.
Hopper:Feeding and heating part have optoelectronic switch in order to prevent error operating from production process.
Sheet Heating Part: heating plastic material;Extrude the material to the screen changer after filtering.With optimum hardness, strong corrosion resistance and long service life.
45° oblique extrusion die: Low resistance force in die head extrusion channel makes sheet thickness evenly.
The machine adopts PID temperature system, it shows high precision, and temperature control tolerance ＜1℃.
Three roller part pressing the raw material extruded by the die into a plate shape and cooling to form ; three rollers are oblique three rollers, simple structure, easy operation and maintenance.
Cooling frame function: cooling transition, remove excess scrap, get the required width sheet. Excessive rollers and cutters.
Edge material winding : winding the cut edge material into bundles.
Double station winding part adopts cart type switching, winding roller with gas shaft, easy disassembly, high efficiency, low labor intensity.
