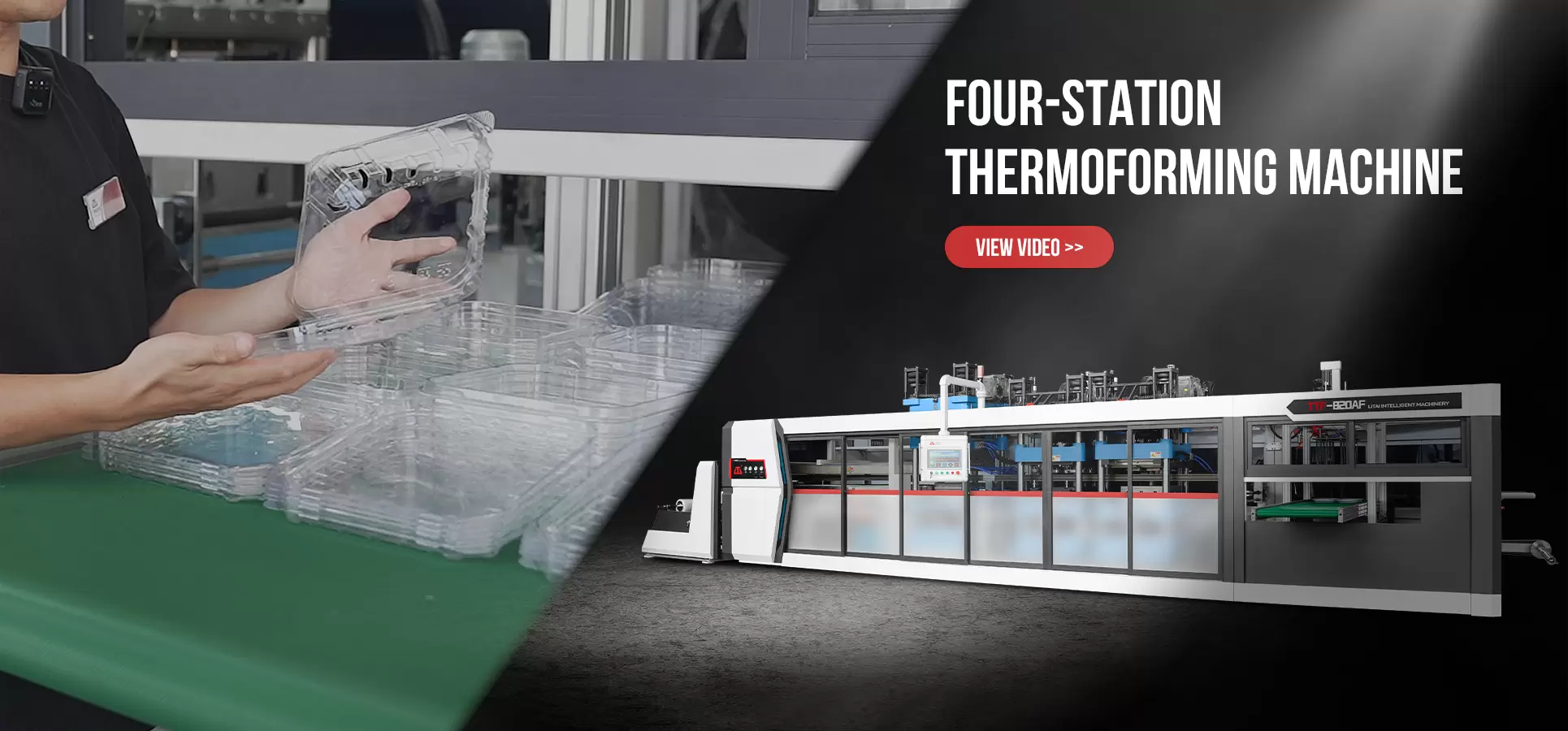

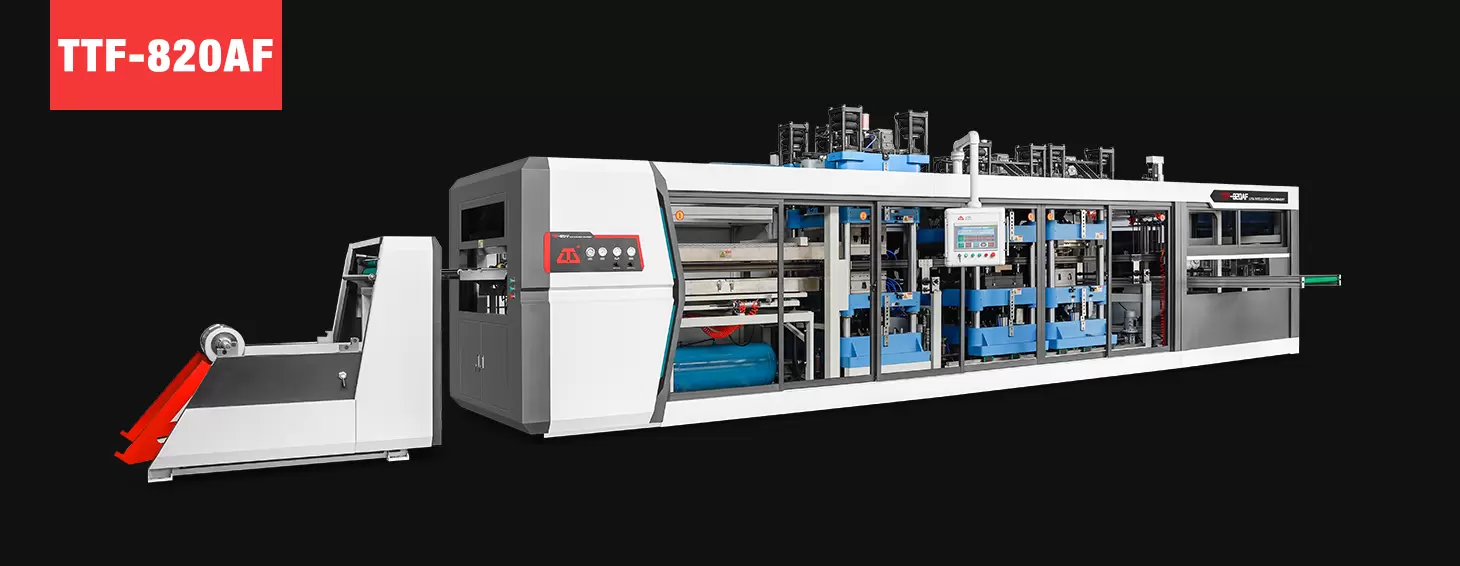

Four-station Thermoforming Machine
Manufacturing and sales of industry and trade
  • AUXILIARY EQUIPMENT
    Chiller 15F
    Cool down molds, rails and hydraulic systems while the machine is running

    Refrigerant:R22

    Cooling Fan:0.55kw*2

    Volume of water tank:150L

    Rated power:13.6 kw

    Power supply:  3PH-380V/50Hz

    Dimension: L1500xW850xH1450mm

    Weight:750kg

  • AUXILIARY EQUIPMENT
    Air Tank 1m³
    An auxiliary part of the air compression system to keep the air pressure stable

    Volume:1.0m³

    Pressure:0.8Mpa

    Design Temperature:150℃

    Total Height:2400mm

    Inner Diameter:800mm

    Relief Valve Interface: Rp 11/2

    Drain Valve Interface:R 1/2

  • AUXILIARY EQUIPMENT
    Air Compressor
    TK-3.6
    Get enough air during molding

    Working Pressure:0.8Mpa

    Air Displacemen:3.6m³/min

    Motor Power:3PH-380V/50Hz

    Dimension:1150x900x1350mm

    Power supply:3PH-380V/50Hz

    Cooling method:Air-cooled

    Lubricant quantity:About 27L

MAIN TECHNICAL PARAMETER
Model
Forming Area520mm x 400 mm700mm x 550 mm
Forming Depth (Max.)110mm120mm
Sheet thickness0.2-2.0mm0.2-2.0mm
Forming Speed (Max.)30times/min35times/min
Air pressure  0.6-0.8mpa0.6-0.8mpa
Air consumption  3.0 m³/min3.6 m³/min
Water consumption  0.7 m³/h0.7 m³/h
Sheet width (Max.)550mm730mm
Suitable SheetPP, PS, HIPS, PET, PVC, PLA etc.PP, PS, HIPS, PET, PVC, PLA etc.
Power supplyAC 380V, 50Hz, Three-phase, Four-wireAC 380V, 50Hz, Three-phase, Four-wire
Used power55Kw105Kw
Rated power110Kw210Kw
Heating power75Kw118Kw
ProcedureForming-punching-cutting-stackingForming-punching-cutting-stacking
DimensionL11000*W4600*H2700mmL9700*W4600*H2700mm
WeightAbout 11.0TAbout 25.0T
Model
Forming Area
Forming Depth (Max.)
Sheet thickness
Forming Speed (Max.)
Air pressure
Air consumption
Water consumption
Sheet width (Max.)
Suitable Sheet
Power supply
Heating power
Used power
Rated power
Procedure
Dimension
Weight
700mm x 600 mm
135mm
0.2-2.0mm
30times/min
0.6-0.8mpa
3.6 m³/min
0.7 m³/h
730mm
PP, PS, HIPS, PET, PVC, PLA etc.
AC 380V, 50Hz, Three-phase, Four-wire
118Kw
85Kw
210Kw
Feeding-Heating- Forming-Punching-Cutting-Stacking-Recycle
L14000*W4700*H2750mm
About 25T
700mm x 600 mm
135mm
0.2-2.0mm
30times/min
0.6-0.8mpa
3.6 m³/min
0.7 m³/h
730mm
PP, PS, HIPS, PET, PVC, PLA etc.
AC 380V, 50Hz, Three-phase, Four-wire
118Kw
85Kw
210Kw
Feeding-Heating- Forming-Punching-Cutting-Stacking-Recycle
L14000*W4700*H2750mm
About 25T
  • High security
  • High stability
  • Low noise
  • Low energy
    consumption
  • High rate
  • Fully automatic

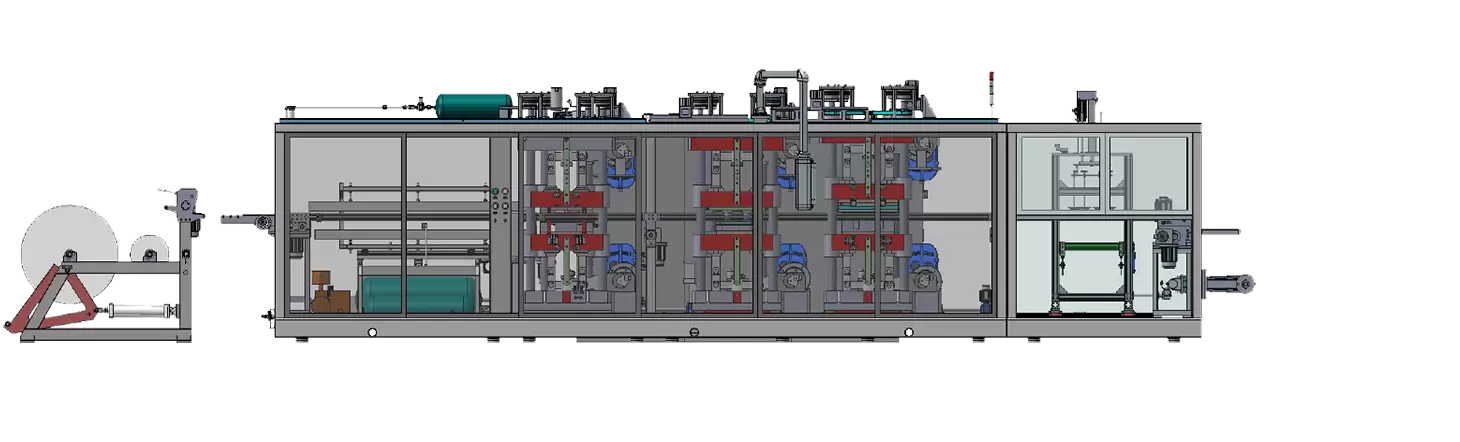

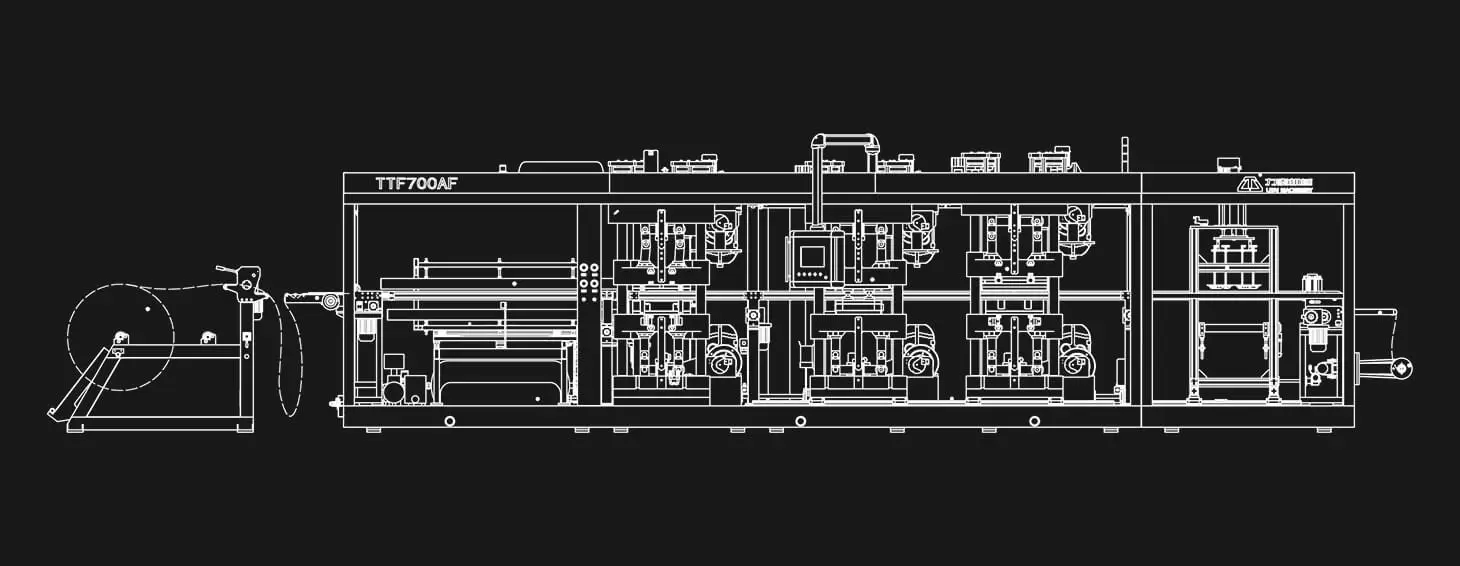

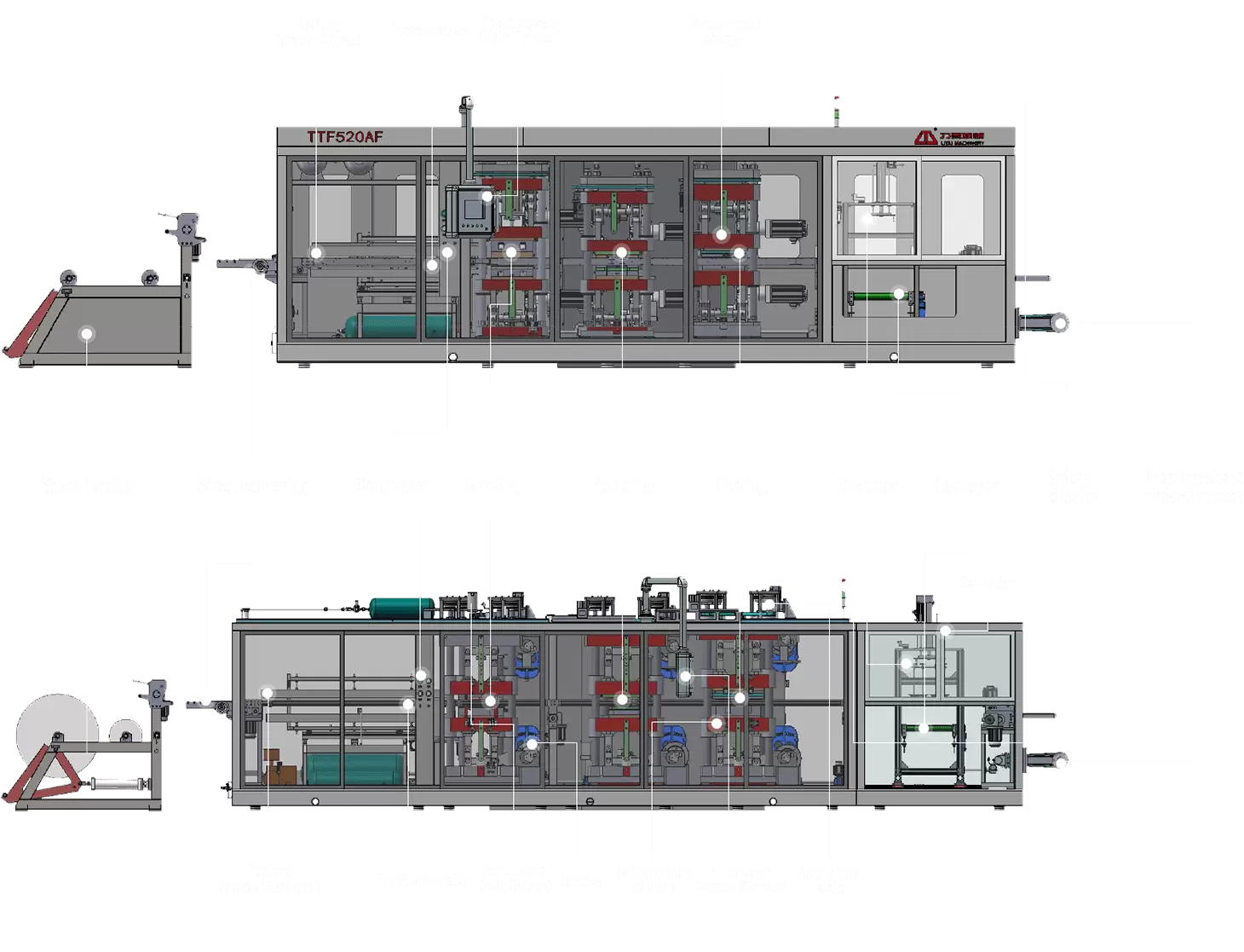

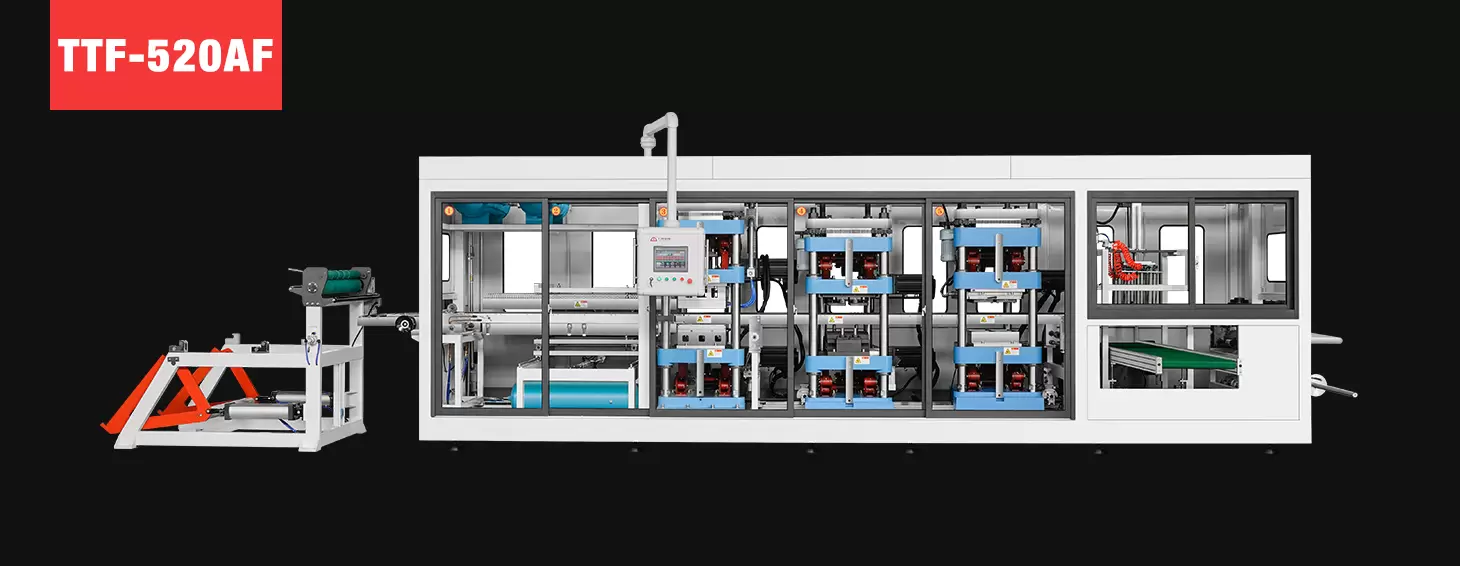

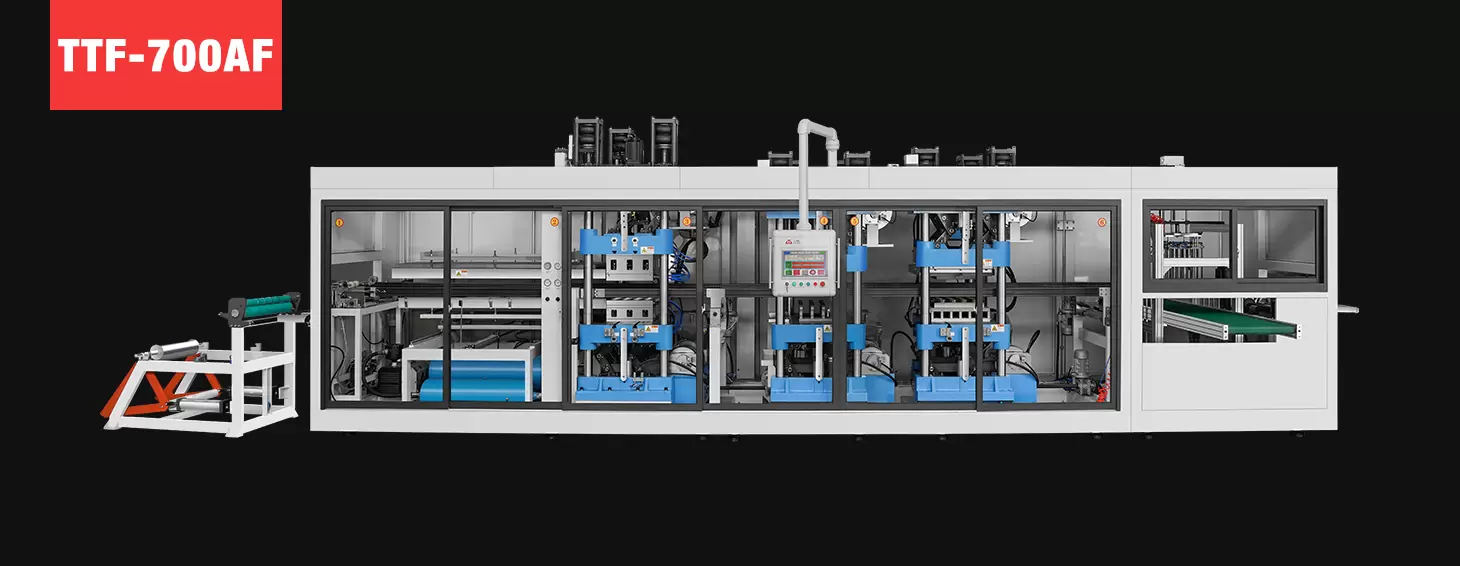

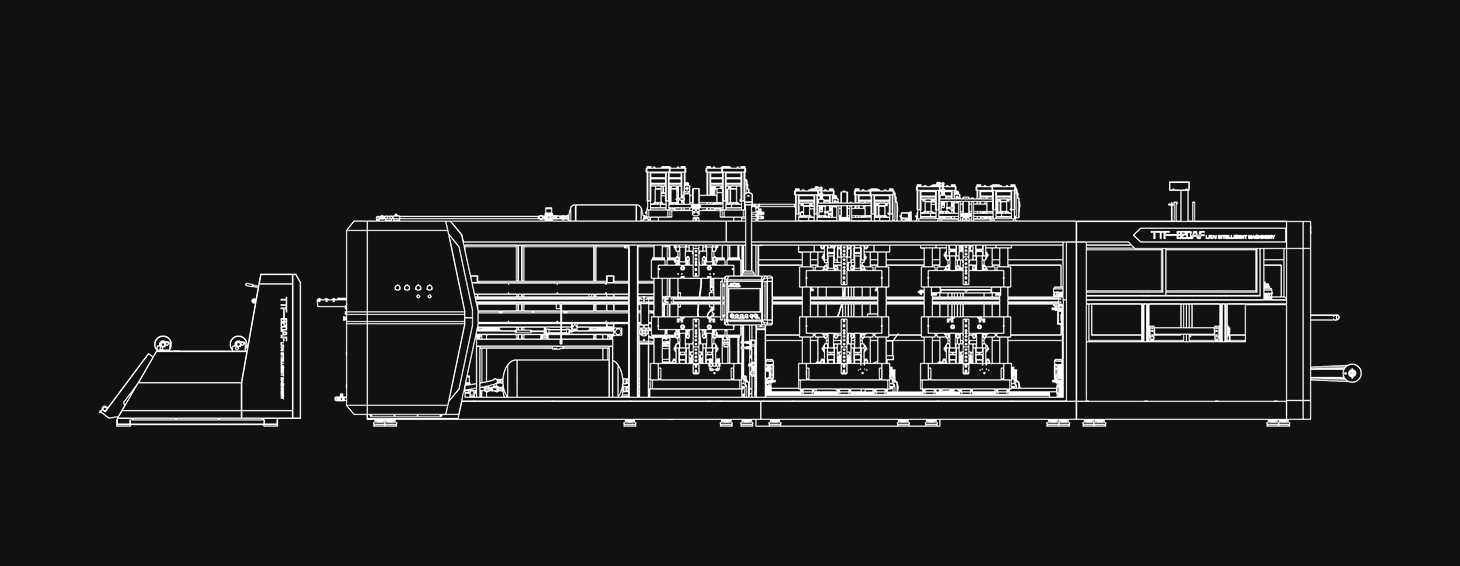

Line diagramTTF-700AF
line diagram of TTF-700AF thermoforming machine

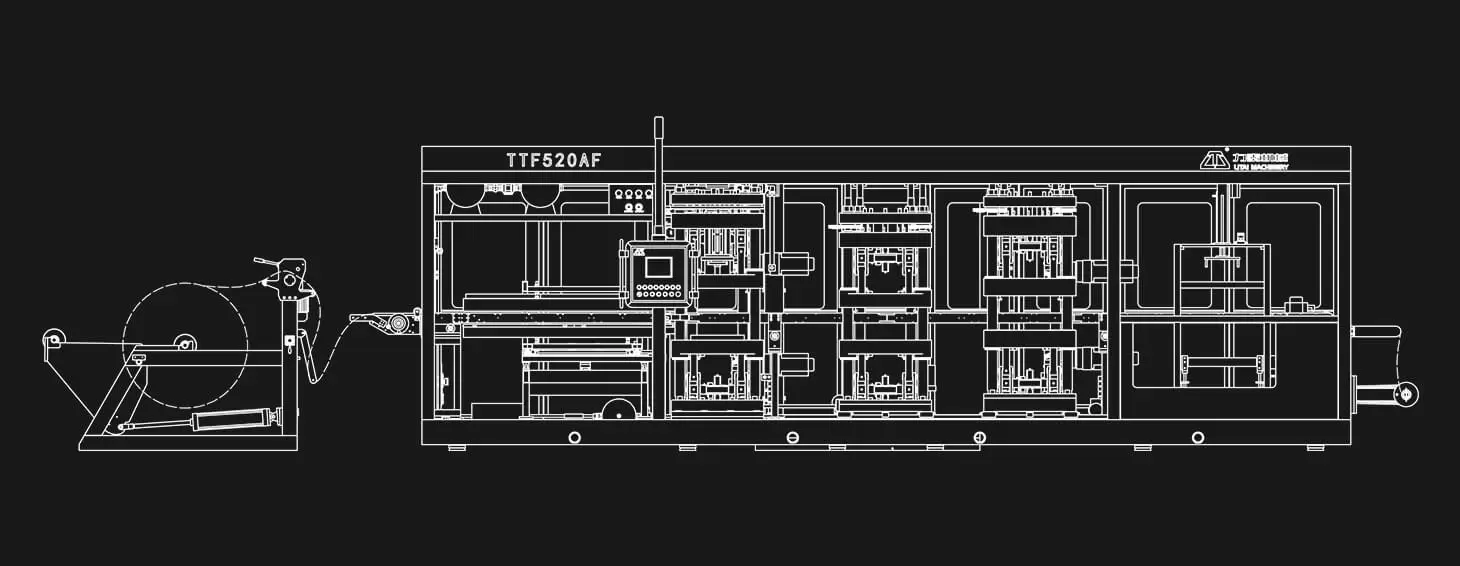

Line diagramTTF-520AF
line diagram of TTF-520AF thermoforming machine
Application

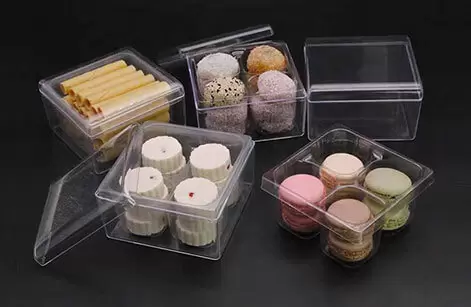

TTF series full-automatic thermoforming machine is our latest developed core product. The plastic thermoforming machine combines forming, punching, cutting, and stacking into process. For the production of disposable plastic products. Suitable for most of the customer requested, it can produce plastic trays, clamshell containers, lunch boxes, lateral hole fruit box, lids, ampoule tray, strawberry and blueberry box, etc plastic containers with holes. The machine is completely driven by servo motor. Stable operation, low noise, high efficiency, high quality.

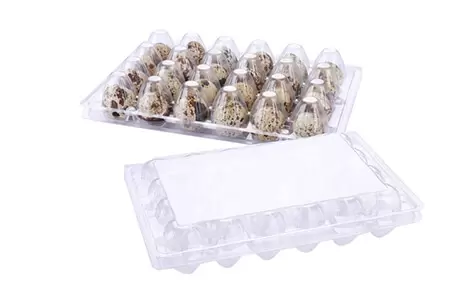

  • Quail Egg Tray
  • Mooncake Box
  • Hardware Packaging Tray

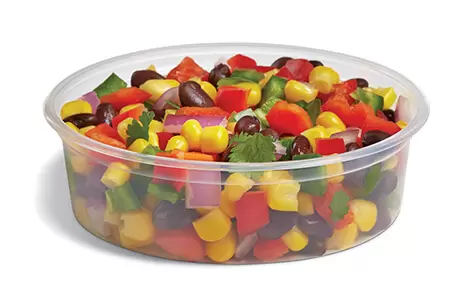

  • plastic bowl
  • toy tray
  • candy box

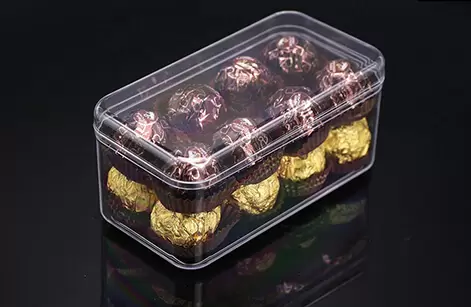

  • salad box
  • chocolate box

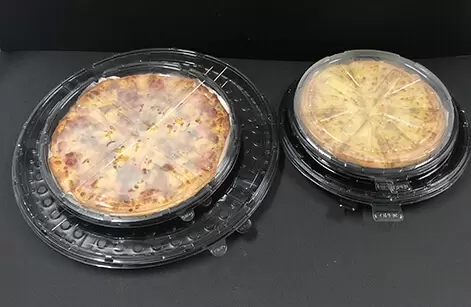

  • pizza box
  • fast food box
  • sauce container
  • egg tray
  • cosmetic tray
  • pastry box

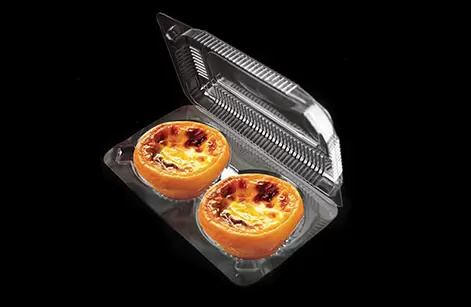

  • egg tart box
  • pastry box
  • cake box

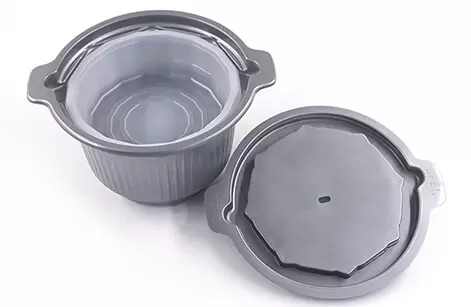

  • self-heating lunch box
  • takeaway box
  • cookie box
  • salad box
  • sushi box
  • packaging box
  • cookie box
  • Ampoule tray
  • Injection tray
  • flower pot

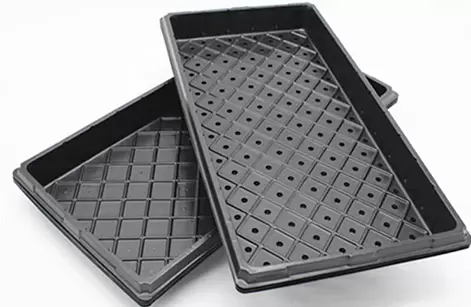

  • Seedling tray
  • fruit box
  • egg tray
  • cake box
  • lunch box
  • fast food box

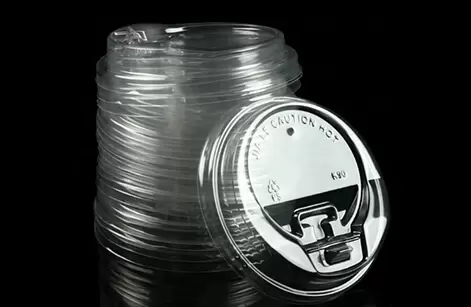

  • Cup Lid
  • Cup Lid
  • Fresh keeping box
  • Biscuit box
  • Cake box

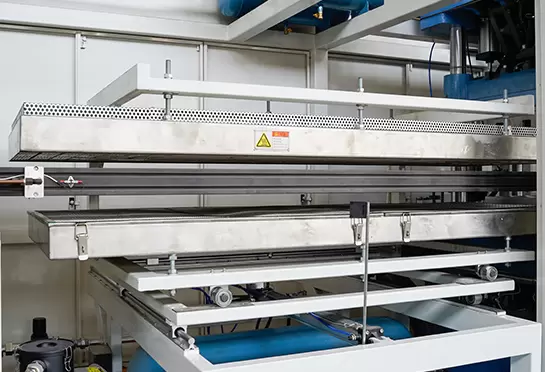

Heating:
Trimble (China)

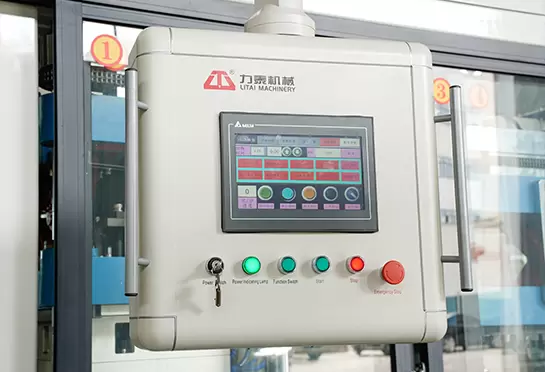

Track:manualTouch screen:
Detla (Taiwan)
Manual mold
change
four station thermoforming machine
  • sheet conveying
    four station thermoforming machine
  • Sheet conveying
  • Heating:
    Trimble (China)

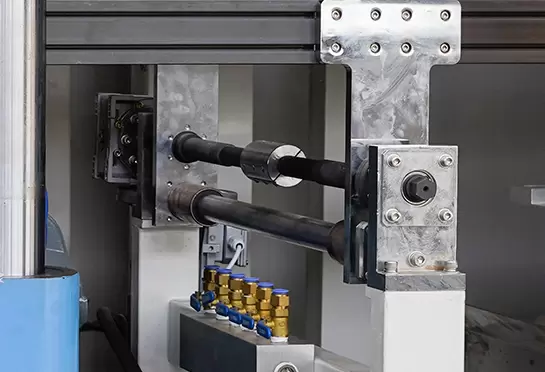

  • Track:manual

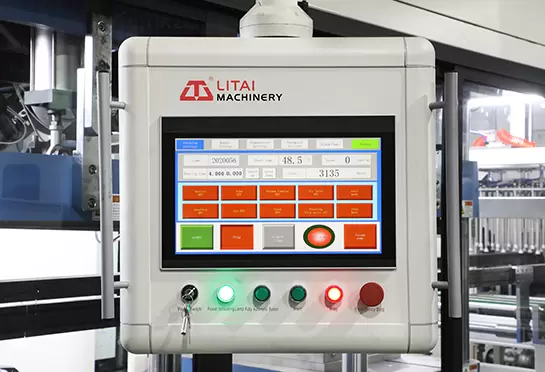

  • Touch screen:
    Detla (Taiwan)
  • Manual mold
    change

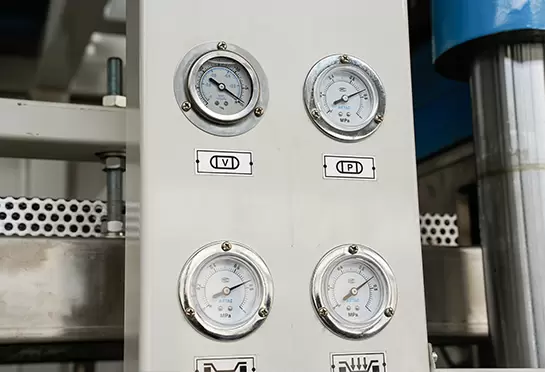

  • Barometer

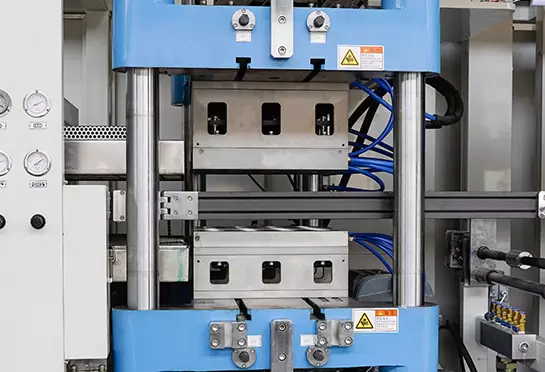

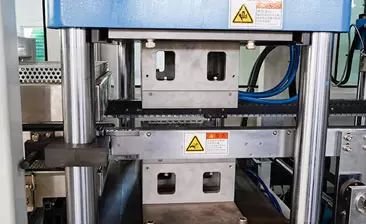

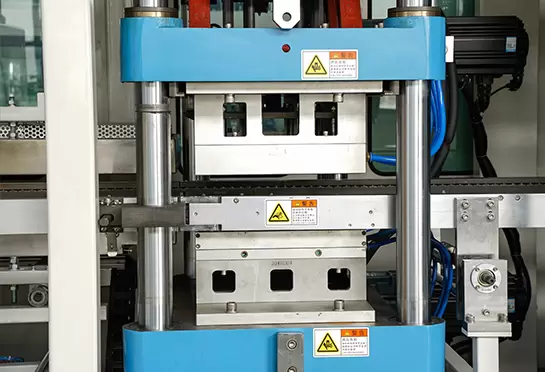

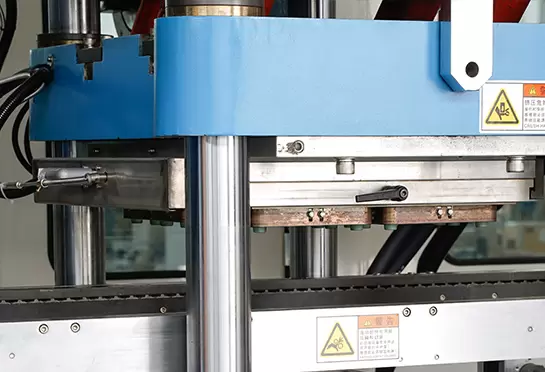

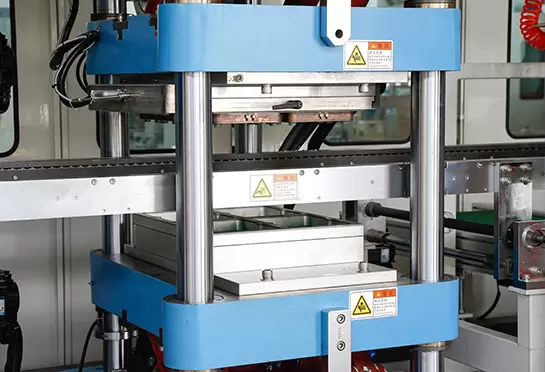

  • Forming

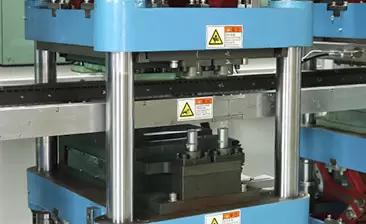

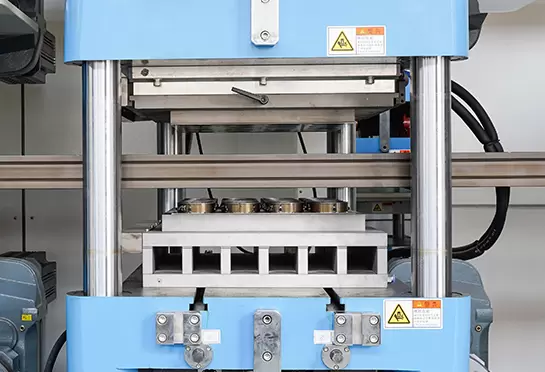

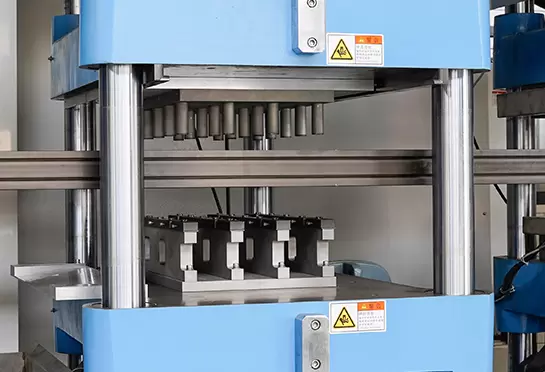

  • Punching
  • Cutting

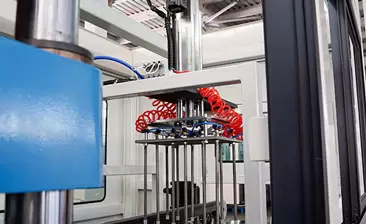

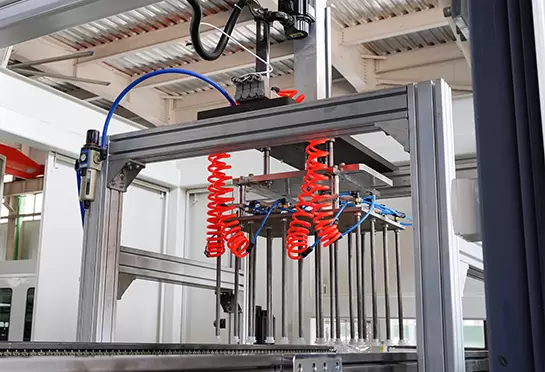

  • Stacking

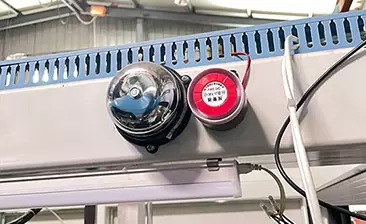

  • Safety
    indicator
  • Conveyor
  • Wasting sheet
    collecting part

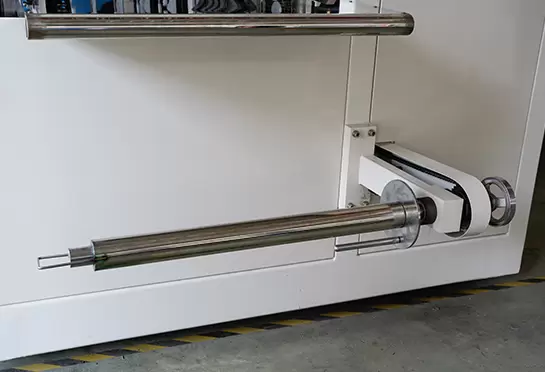

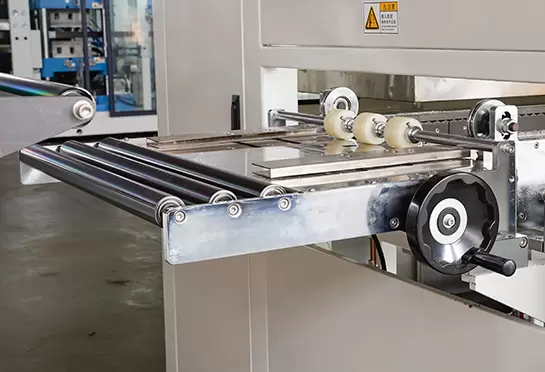

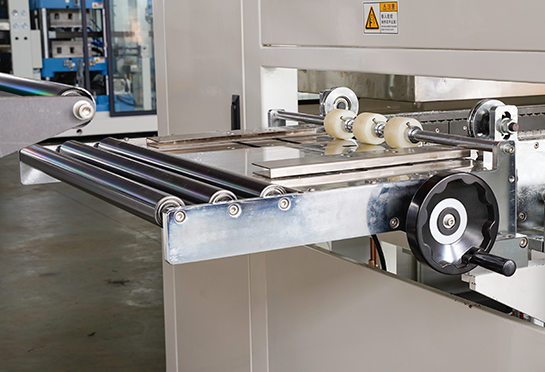

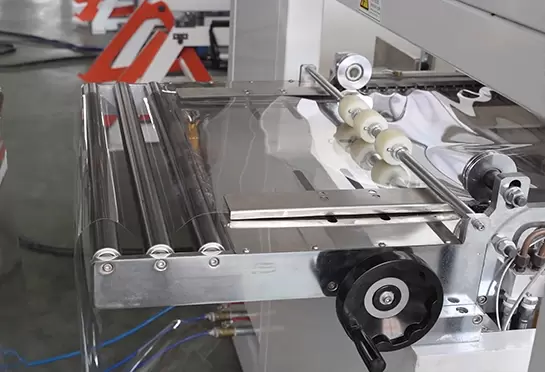

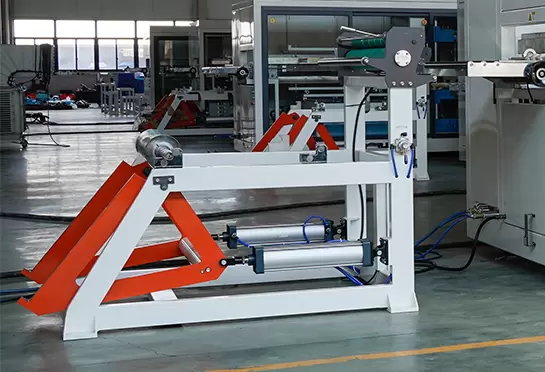

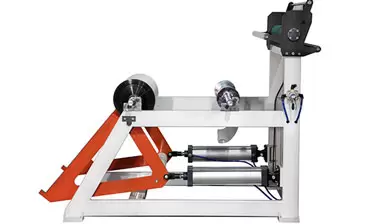

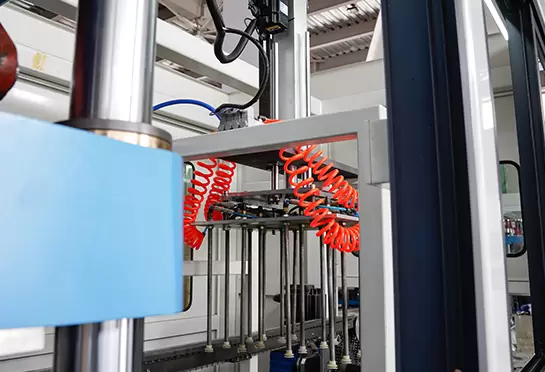

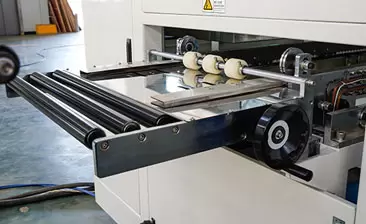

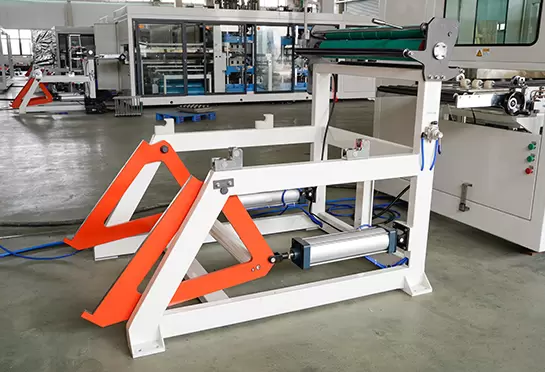

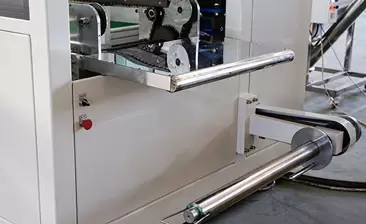

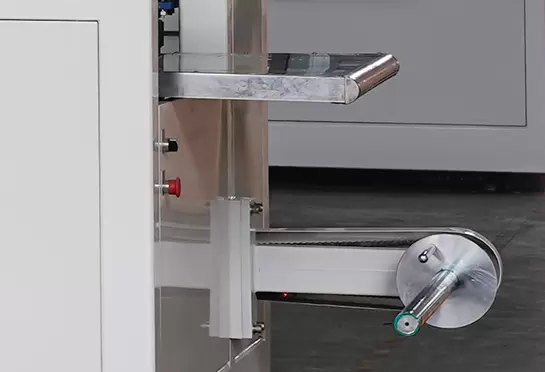

Sheet feeding
Sheet feeding
Sheet conveying
Sheet conveying

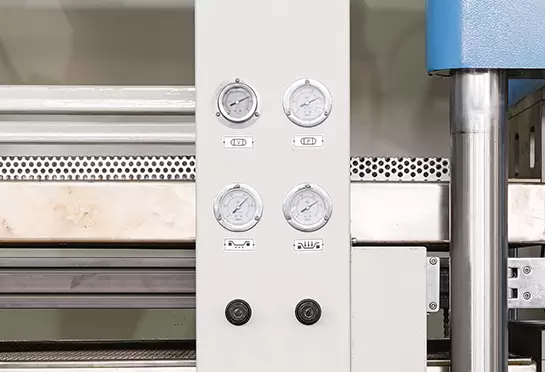

Barometer
Barometer

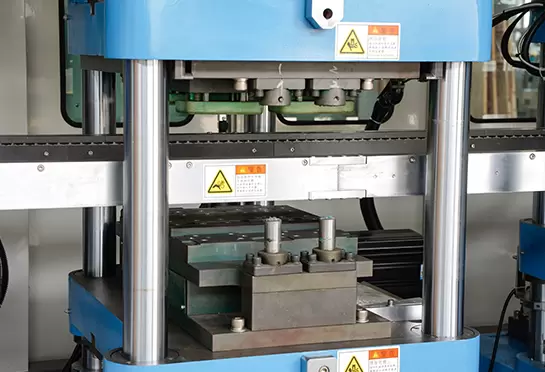

Forming
Forming
Punching
Punching
Cutting
Cutting
Stacking
Stacking

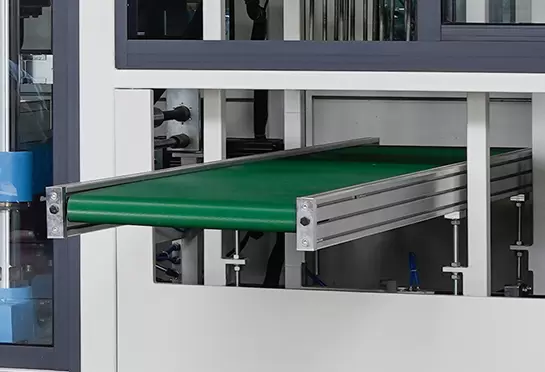

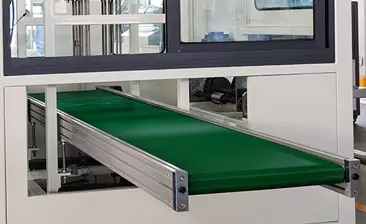

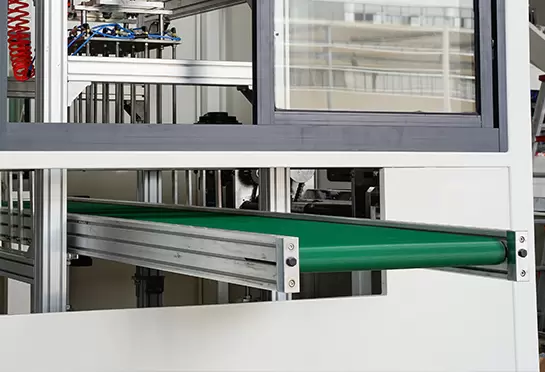

Conveyor
Conveyor
Safety
indicator
Safety
indicator
Wasting sheet
collecting part
Wasting sheet
collecting part
  • Sheet feeding
  • Sheet conveying
  • Heating:
    Erstein (Germany)
  • Track:automatic
  • Barometer
  • Pull up servo:
    Detla (Taiwan)
  • Forming
  • Punching
  • Turbine
  • Quick change
    of mold
  • Safety door
  • Auto adjust
    mold
  • Cutting
  • Touch screen:
    Siemens (Germany)
  • Safety
    indicator
  • Stacking
  • Conveyor
  • Wasting sheet
    collecting part
  • Safety door
Heating:
Erstein (Germany)
Track:automaticPull up servo:
Detla (Taiwan)
TurbineQuick change
of mold
Touch screen:
Siemens (Germany)
Auto adjust
mold

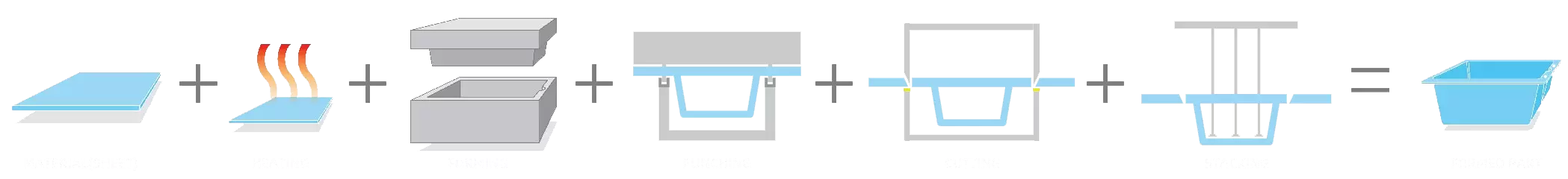

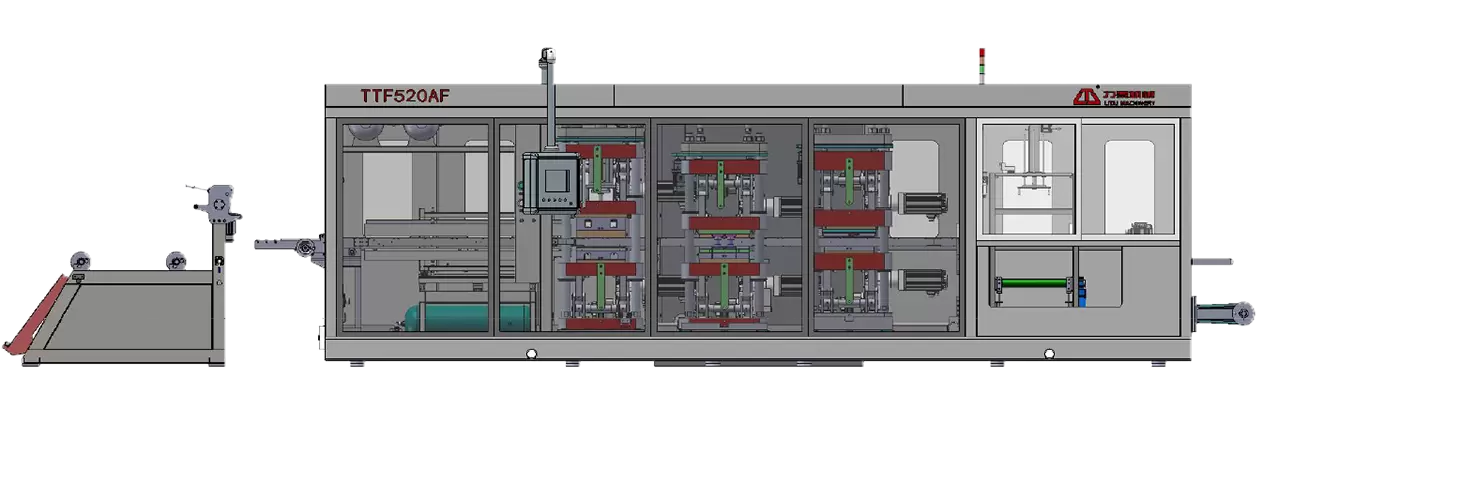

four station thermoforming machine Outline diagram of molding process

SUMMARY OF MACHINE

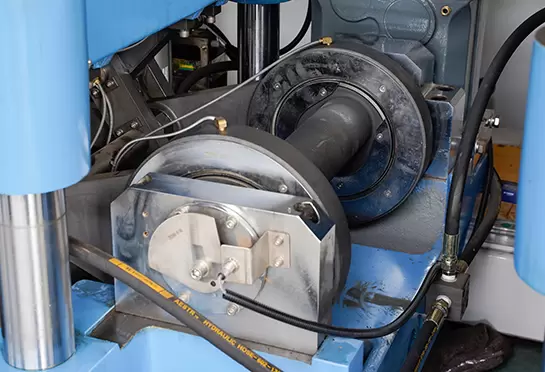

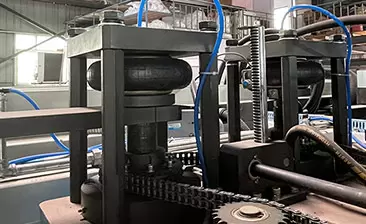

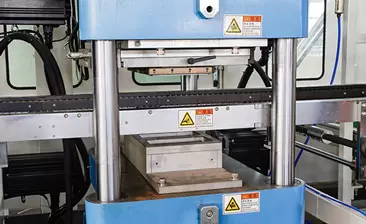

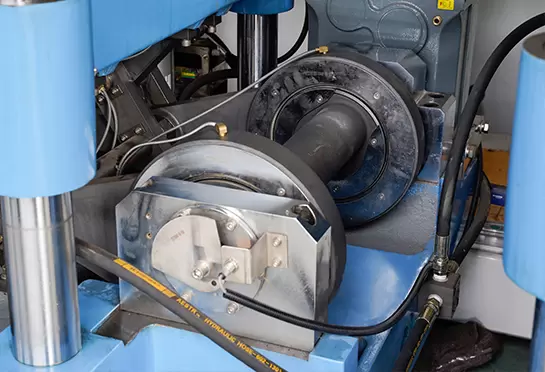

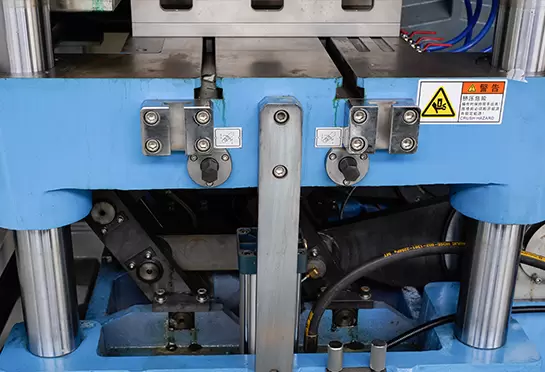

  • Every station is driven by the eccentric crank linkage structure.

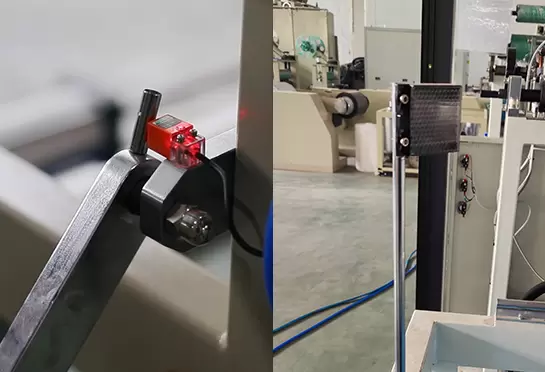

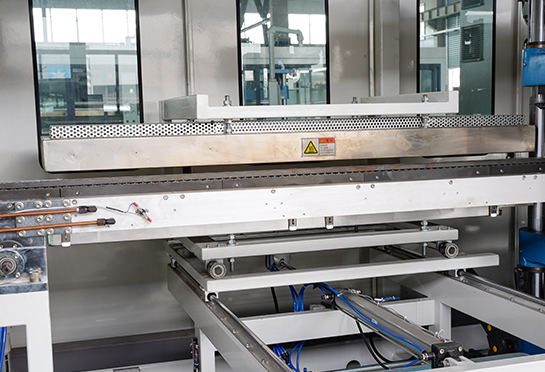

  • Feeding and heating part have optoelectronic switch in order to prevent error operating from production process.

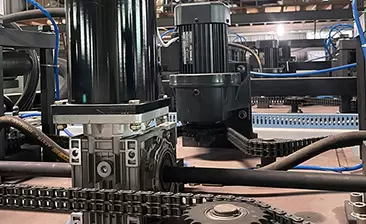

  • The toothed chain made of 65#Mn, helping convey sheet. Aluminum rails with water cooling, save water.

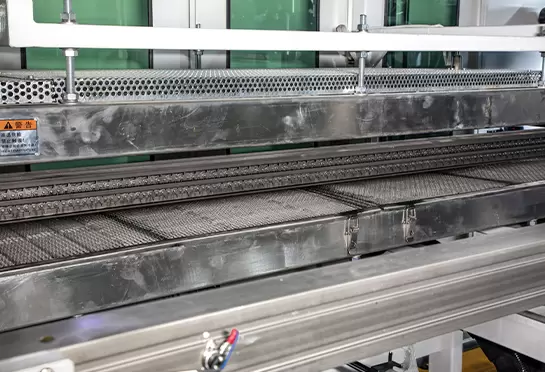

  • The machine adopts PID temperature system, it shows high precision, and temperature control tolerance <1℃.

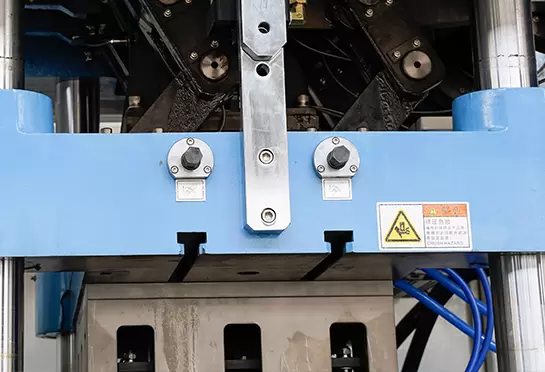

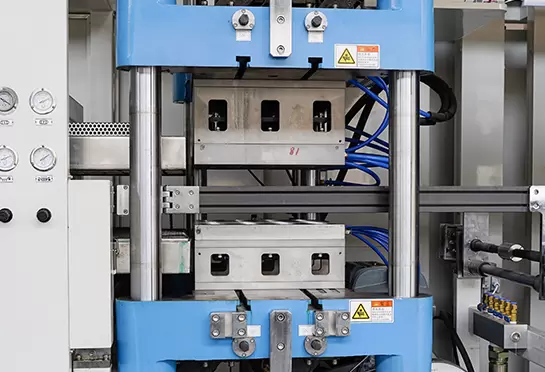

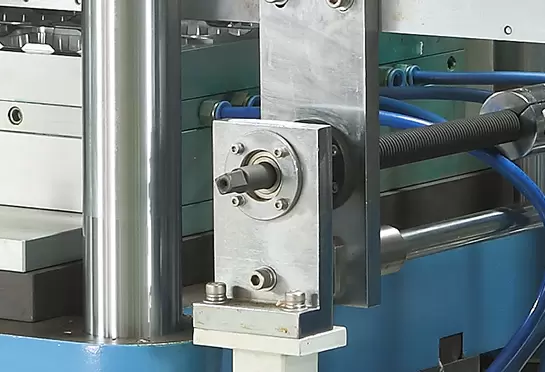

  • There is a rapid mould change device, which shortens the time for mould change extremely.
  • Each servo motor has overload protection for machine’s overworking.
  • Low barycenter and height of finished products as well as steady running ensures easy operation and friendly viewing.

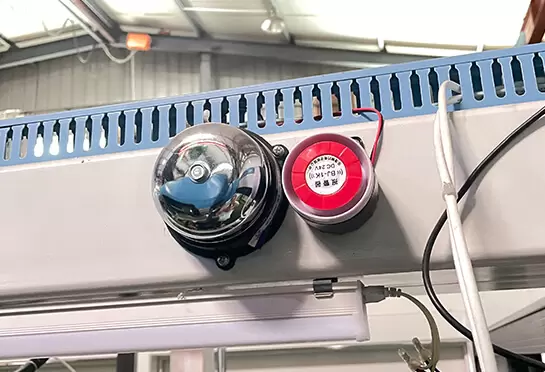

  • There is an alarm function of the sliding doors.
Every station is driven by the eccentric crank linkage structure. Every station is driven by the eccentric crank linkage structure.
Feeding and heating part have optoelectronic switch in order to prevent error operating from production process. Feeding and heating part have optoelectronic switch in order to prevent error operating from production process.

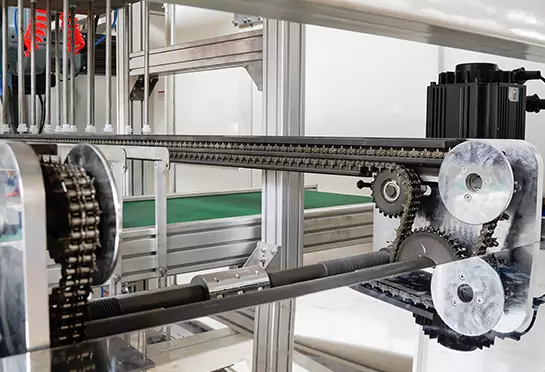

The toothed chain made of 65#Mn, helping convey sheet. Aluminum rails with water cooling, save water. The toothed chain made of 65#Mn, helping convey sheet. Aluminum rails with water cooling, save water.
The machine adopts PID temperature system, it shows high precision, and temperature control tolerance <1℃. The machine adopts PID temperature system, it shows high precision, and temperature control tolerance <1℃.
There is a rapid mould change device, which shortens the time for mould change extremely. There is a rapid mould change device, which shortens the time for mould change extremely.

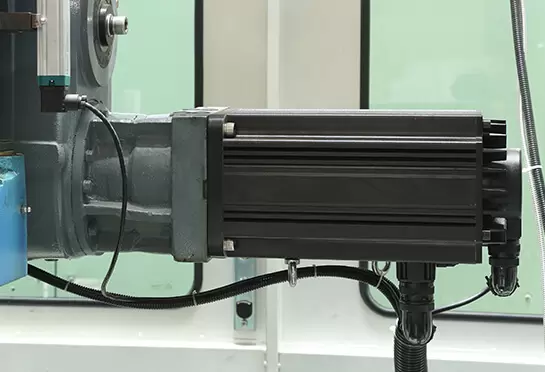

Each servo motor has overload protection for machine’s overworking. Each servo motor has overload protection for machine’s overworking.

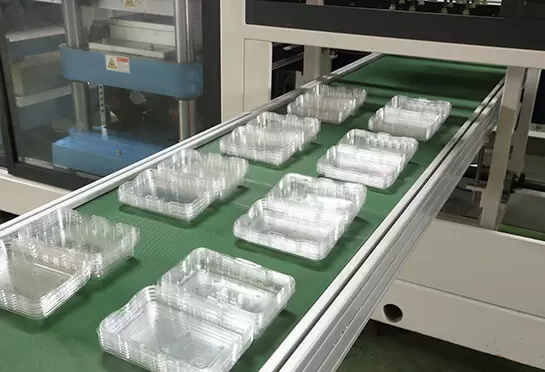

Low barycenter and height of finished products as well as steady running ensures easy operation and friendly viewing. Low barycenter and height of finished products as well as steady running ensures easy operation and friendly viewing.
There is an alarm function of the sliding doors. There is an alarm function of the sliding doors.
